Surcam libraries for exocad, 3Shape and Dental Wings
Free CAD libraries for Surcam implants and components. Download the file for your software, or request another version from the digital team.
- Softwareexocad, 3Shape, Dental Wings
- CostFree
- Other versionsOn request
Download
20253Shape library
Older fileDental Wings library
This file dates from 2018. For current Dental Wings versions, request the latest library from the digital team.
How the digital workflow fits together
-
01
Scan
Seat a Surcam scan body on the implant, abutment or multi-unit and capture it with an intraoral or desktop scanner.
Scan bodies -
02
Match in CAD
The CAD software matches the scan body to the Surcam library file and places the exact implant position and connection.
Download library -
03
Design and mill
Design the crown or framework on the Surcam Ti-base geometry, mill it and bond it to the Ti-base.
Ti-bases -
04
Verify on the model
Print the model with a Surcam digital analog to check fit and contacts before delivery.
Digital analogs

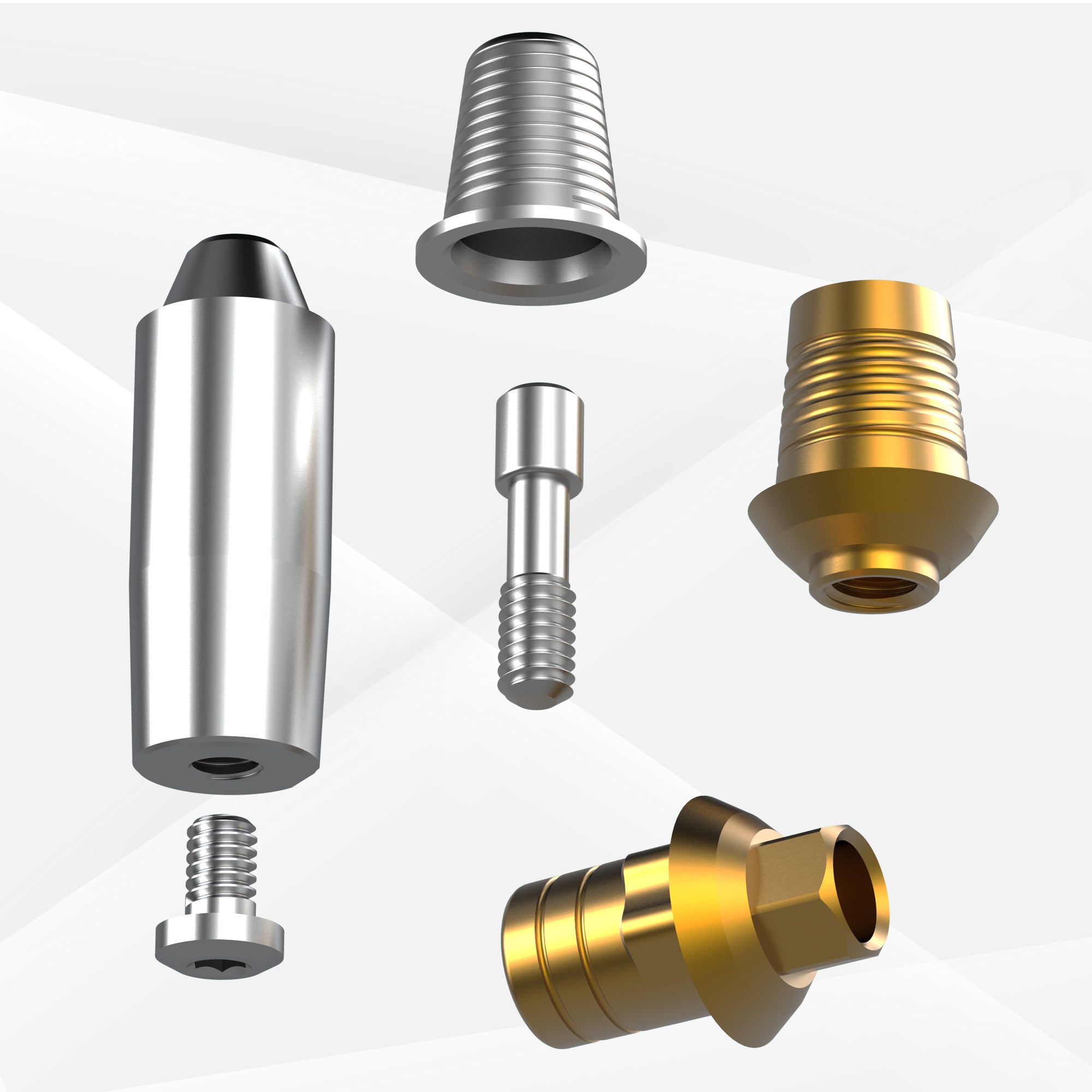

Digital components in the library

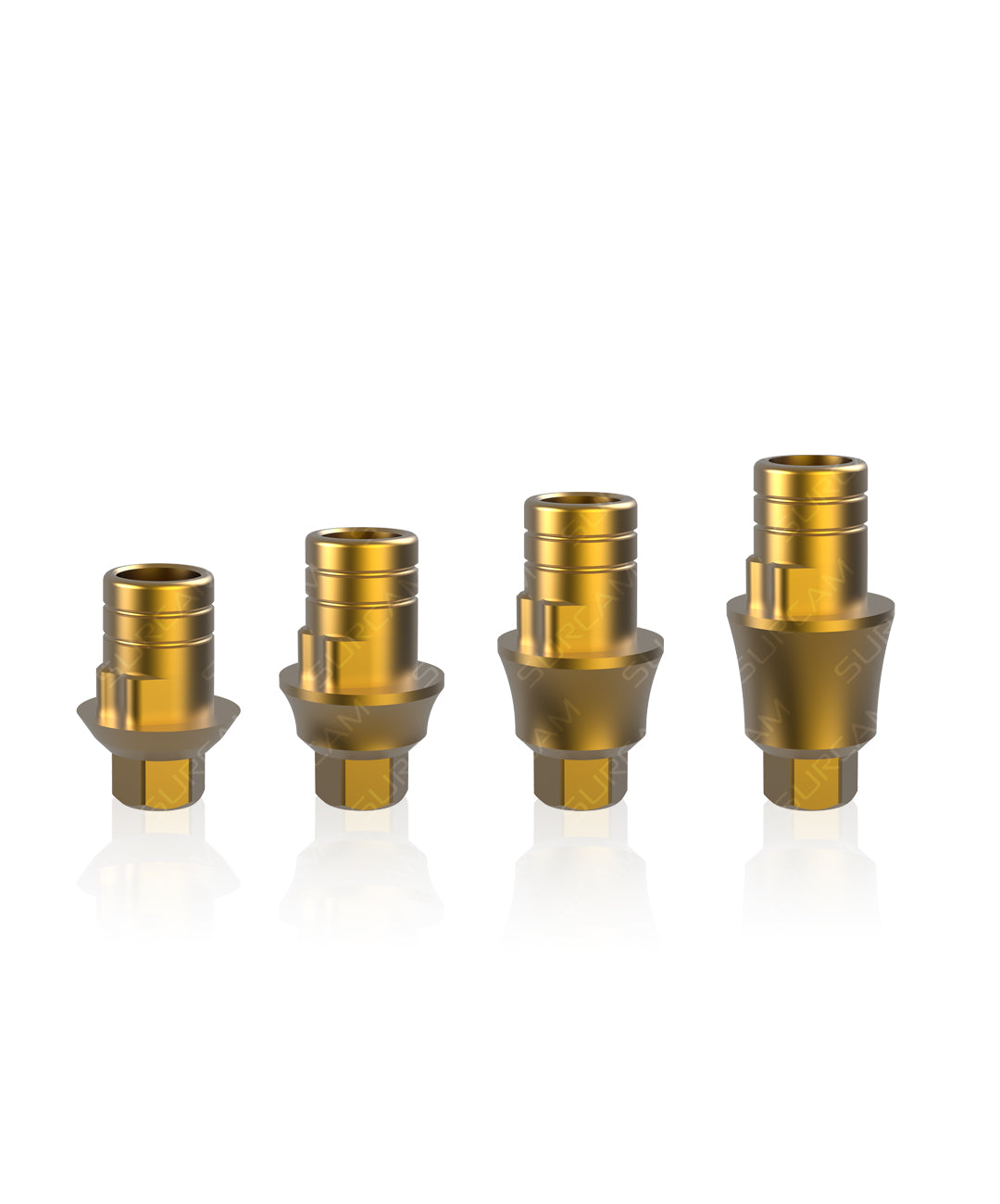

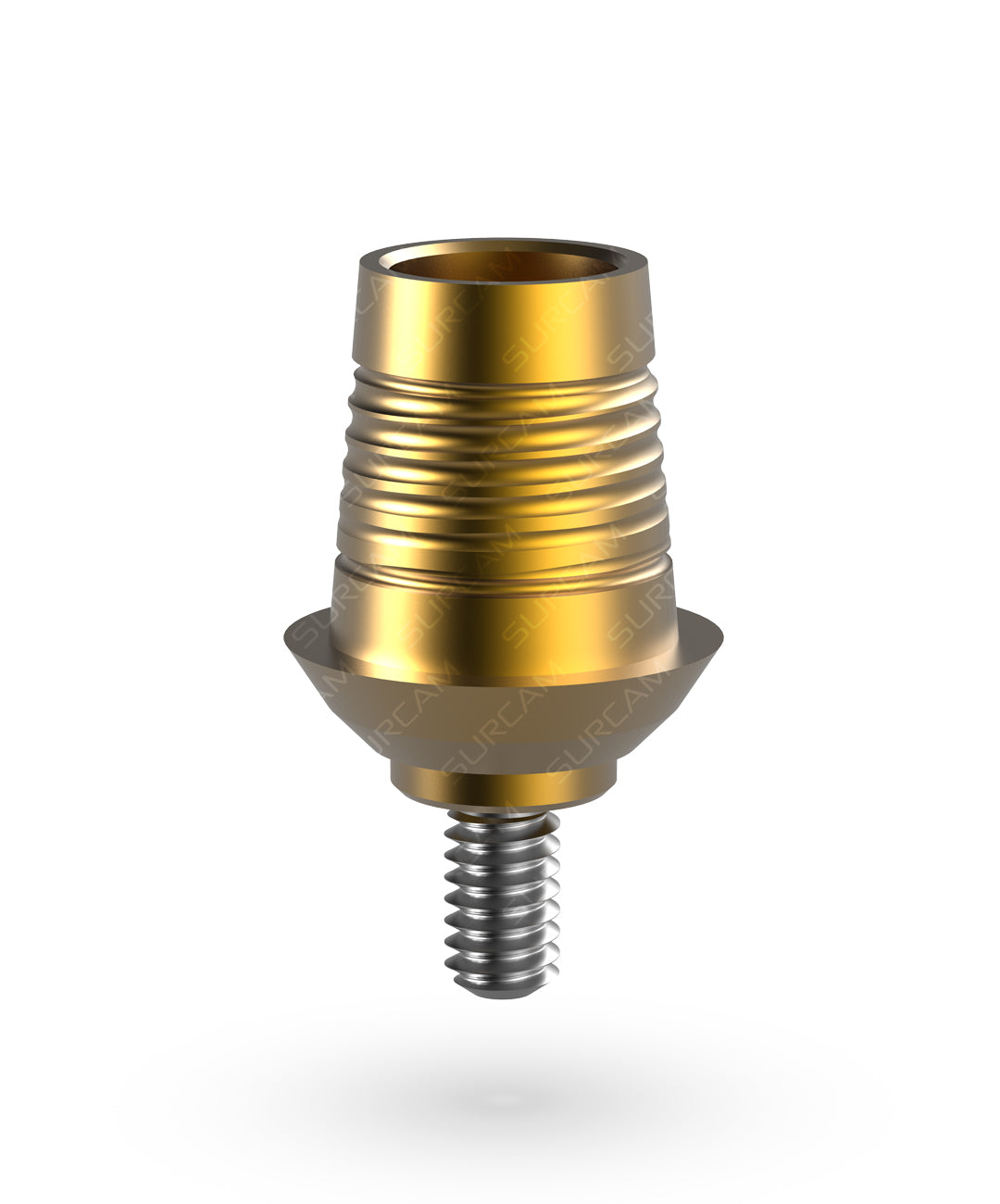

Ti-bases
Titanium Grade 5 interface between the milled restoration and the implant or multi-unit.
- Internal Hex 2.42: anti-rotational and rotational, gingival height 1 to 4 mm
- Wide Platform Ø4.5: rotational and non-rotational
- Conical Connection NP 3.5 and RP 4.3 (Nobel Active® compatible)
- MIS® compatible SP Hex: 0.5, 1.5 and 3.0 mm
- General and Prime Multi-Unit, for bridges and full arch
Scan bodies

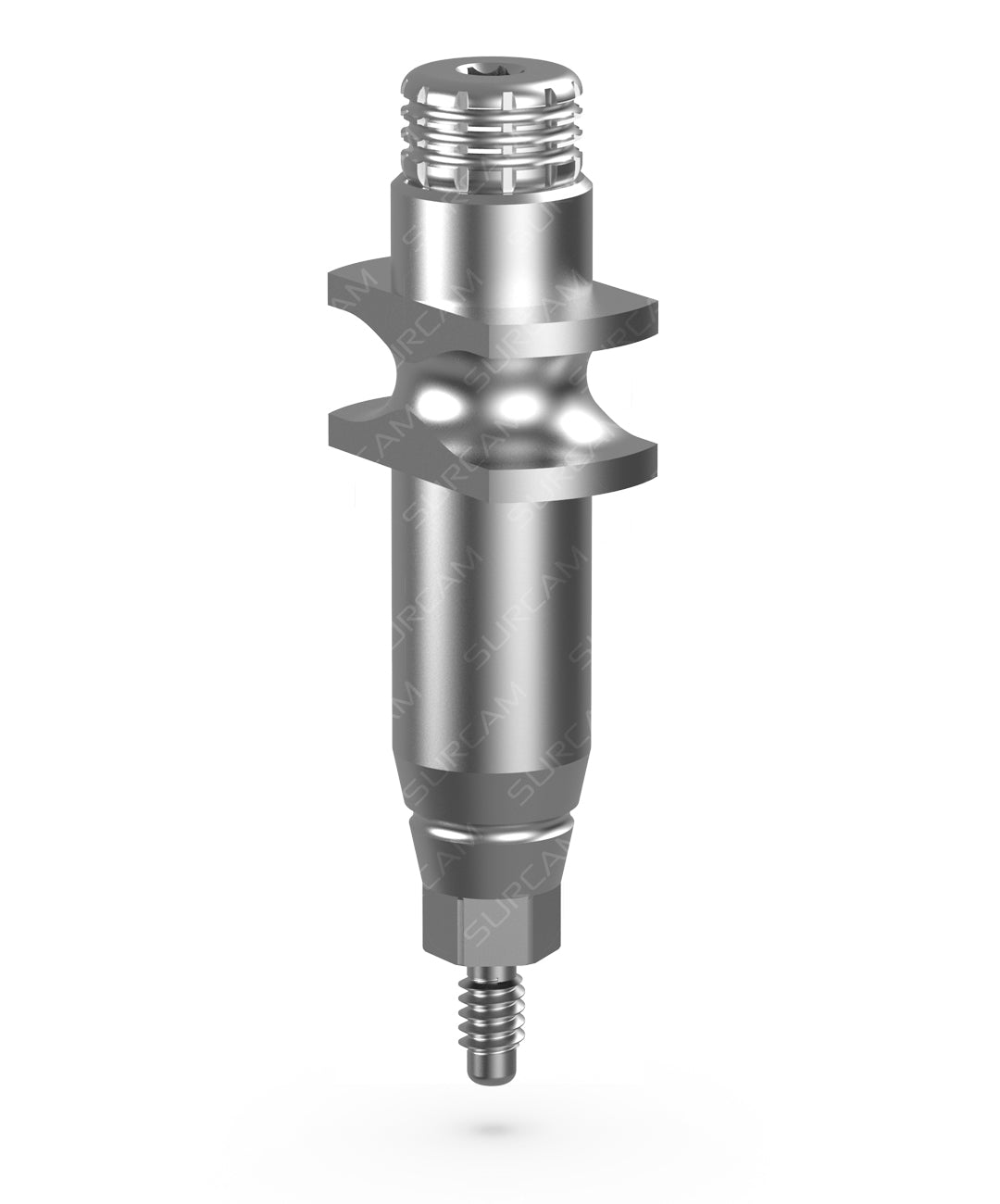

Recognized by the Surcam library to transfer implant position, depth and orientation into CAD.
- Internal Hex 2.42: standard and long, for deep subgingival platforms
- General Multi-Unit: standard and PVD TiN coated
- Prime Multi-Unit: intraoral and lab versions

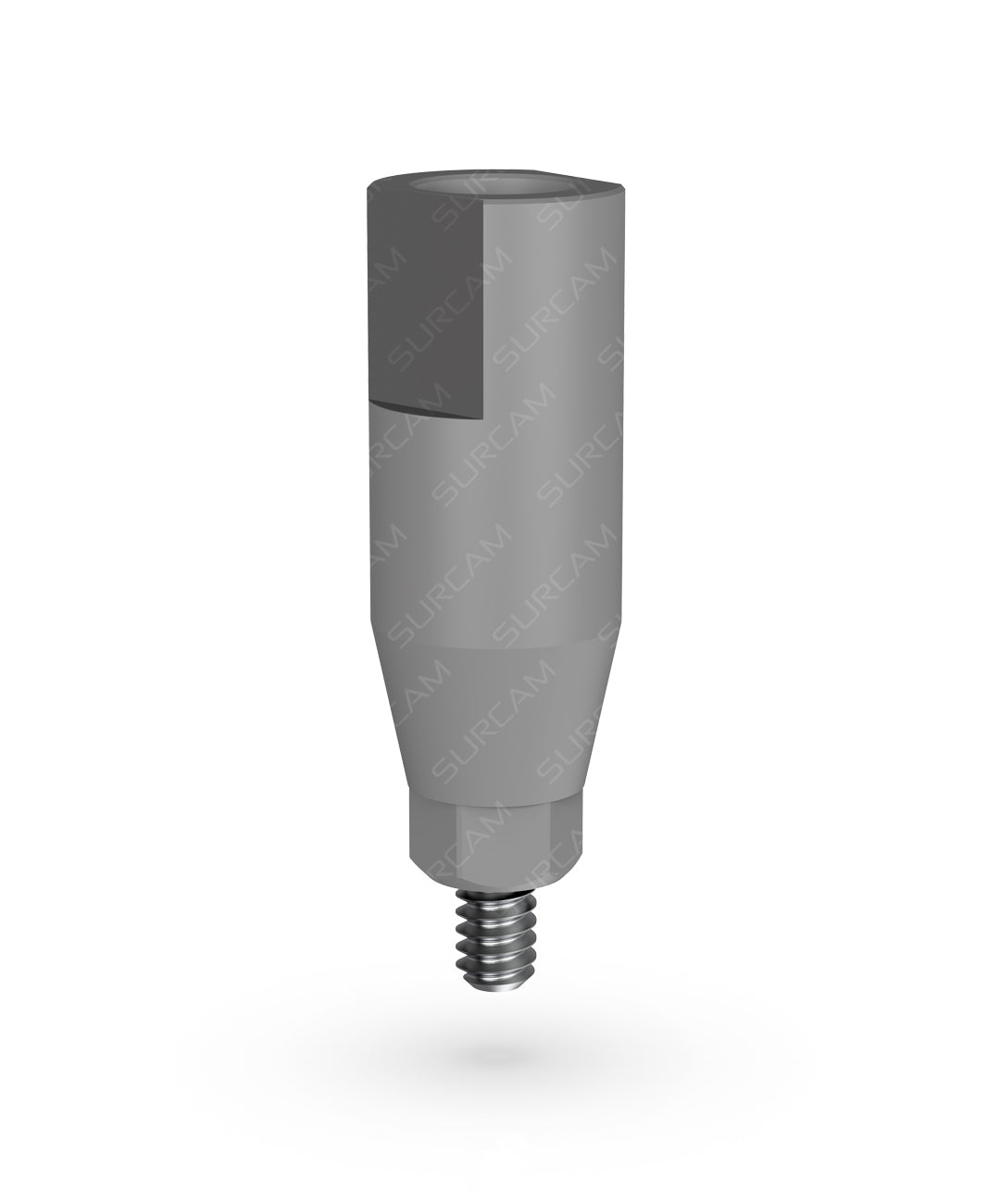

- Conical NP 3.5 and RP 4.3 scanning adaptors (Nobel Active® compatible)

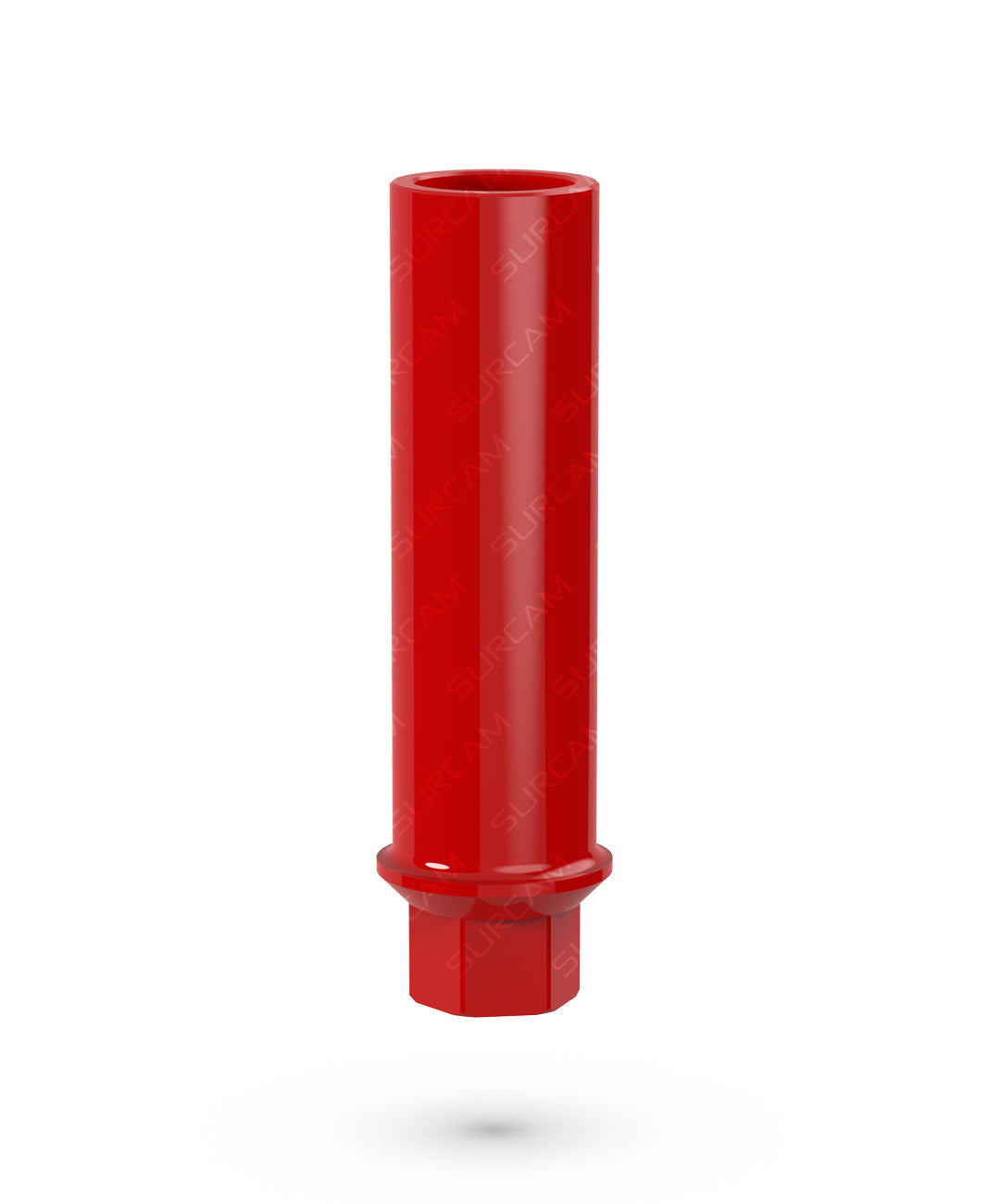

Digital analogs
Seat in 3D-printed or milled models to check fit and contacts before delivery. Two-wall body and a removal ring for easy release from the printed model.
- Internal Hex Ø3.75: H 9.5 mm and H 12 mm
- Internal Hex Ø4.5: H 12 mm
- Conical NP 3.5 and RP 4.3 (Nobel Active® compatible)
- General and Prime Multi-Unit
What the libraries cover
- Internal Hex implant platforms
- Conical Connection platforms
- General Multi-Unit
- Prime Multi-Unit
- CAD/CAM Ti-bases
- Scan bodies
- Digital analogs
Need a different version?
Tell us your CAD software and version, and which Surcam system you work with. The digital team sends the matching library and installation instructions.
Library questions
Are the Surcam libraries free?
Yes. The libraries are free for clinics and labs working with Surcam components.
Which file do I need?
Download the library for your CAD software. If your software version is newer than the file listed, or the library does not load, request the current version from the digital team on WhatsApp.
How do I install the library?
Extract the archive and add it through the implant library import in your CAD software. The digital team sends step-by-step instructions for your software and version on request.
The file does not open.
The exocad and 3Shape files are .rar archives. Open them with 7-Zip or WinRAR, then import the extracted folder.
Do the libraries include other implant brands?
The libraries cover Surcam systems. For a specific third-party system, ask the digital team which systems are included for your software before designing.
Which scan body do I use?
Use the Surcam scan body that matches your system: Internal Hex, Conical Connection, General Multi-Unit or Prime Multi-Unit. Intraoral versions are scanned in the mouth on the abutment; lab versions are scanned on the model on the analog. View scan bodies.
