Angular Titanium Abutment NP 3.5 (Nobel Active® Compatible)
SKU : PA-300116
Regular price $18.00
| Gingival Height | SKU / Stock | Price | Qty |
|---|---|---|---|
|
15°Deg ·
1.5 mm |
SKU: PA-300116 | $18.00 | |
|
15°Deg ·
3.0 mm |
SKU: PA-300117 | $18.00 |
Download IFU (PDF)
Ask about Angular Titanium Abutment NP 3.5 (Nobel Active® Compatible)
Product Details

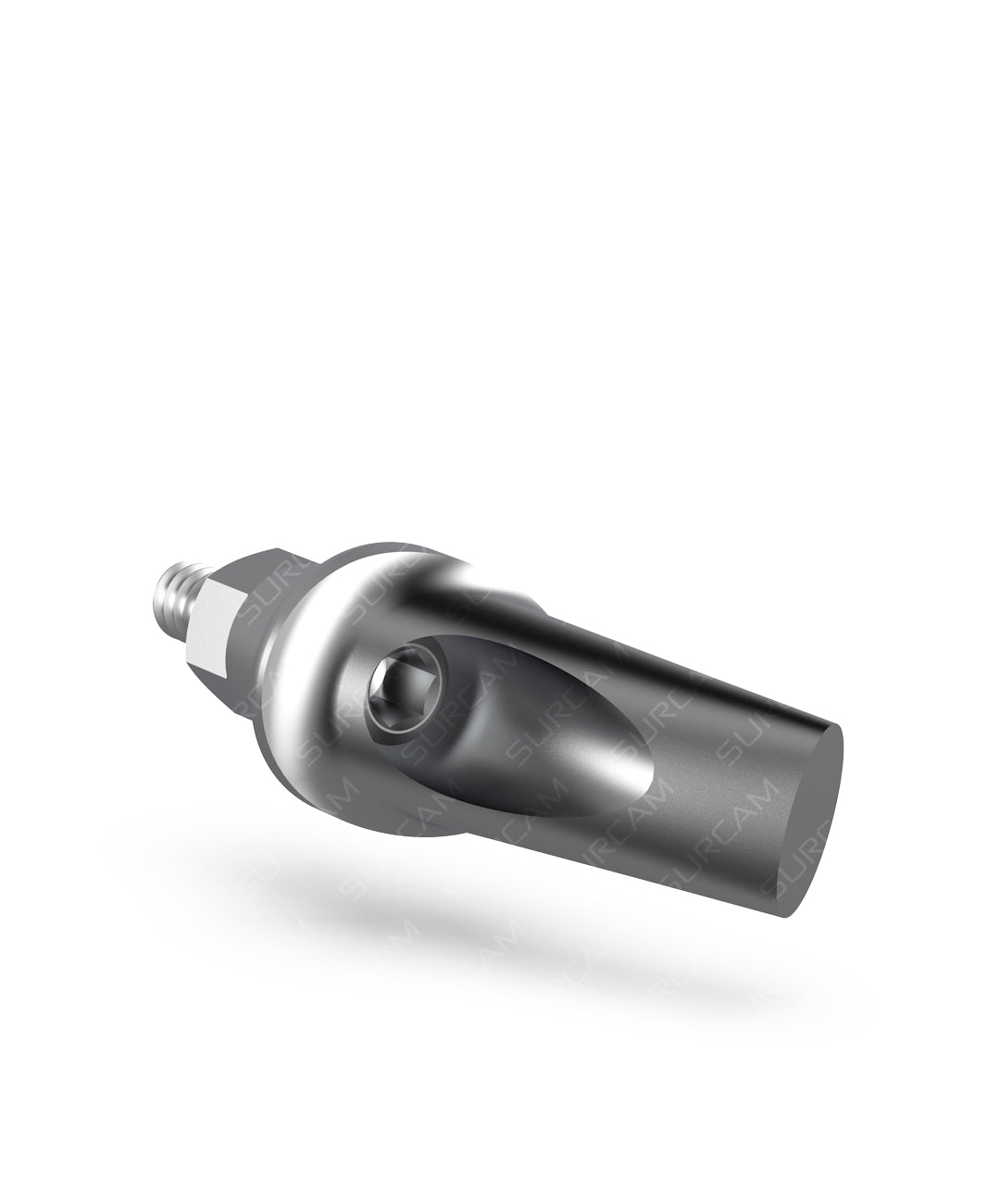

The Angular Titanium Abutment NP 3.5 (Nobel Active compatible) provides a precise, cement-retained solution when correction of implant angulation is required. The Active Hex index supports stable orientation and anti-rotation, while Ti-6Al-4V (Grade 5) delivers strength and biocompatibility. Choose 15° angulation and GH 1.5 mm or 3.0 mm to match tissue thickness and emergence. Supplied with a matched prosthetic screw. Suitable for single units or short-span bridges within conical NP 3.5 platforms.
FAQs
Is this abutment compatible with Nobel Active NP 3.5?
Yes. It is designed for conical connection NP 3.5 platforms with Active Hex indexing. Always verify the platform code and index before use.
How do I choose the gingival height (GH)?
Select GH 1.5 mm for shallow sulcus/thin tissue and GH 3.0 mm for thicker tissue. Base selection on measured sulcus depth and desired margin position.
Is this for screw-retained or cement-retained restorations?
Cement-retained. Use appropriate temporary or definitive cement and remove excess cement per best practices.
What torque and driver should I use?
Use the prosthetic screw torque and driver specified in the implant system IFU. Do not over-torque.
Can it be sterilized and reused?
Follow the label/IFU. If supplied non-sterile, clean and steam-sterilize before use. Abutments are single-patient use; replace the prosthetic screw if worn or damaged.
