Titanium Dental Implant Systems

Platform-based titanium implant systems designed for precise fit, component compatibility, and consistent clinical workflows. Supplied for clinics, laboratories, and distributors worldwide.

Explore titanium dental implants engineered for stability, prosthetic compatibility, and efficient workflows. Systems are categorized by connection type, placement level, and clinical indication, ranging from routine placement to immediate loading and full-arch rehabilitation.

Choose from a unified platform that includes compatible abutments, multi-unit components, impression parts, and CAD/CAM interfaces. Standardized implant systems enhance restorative accuracy, streamline inventory, and support long-term case maintenance.

Bone-Level Dental Implants →Tissue-Level Dental Implants →Cortical Dental Implants →Compressive One-Piece Dental Implants →Pterygoid Implants →Zygomatic Implants →Compatibility chart →
Titanium Dental Implant Systems

Shop Titanium Dental Implant Systems

13 products

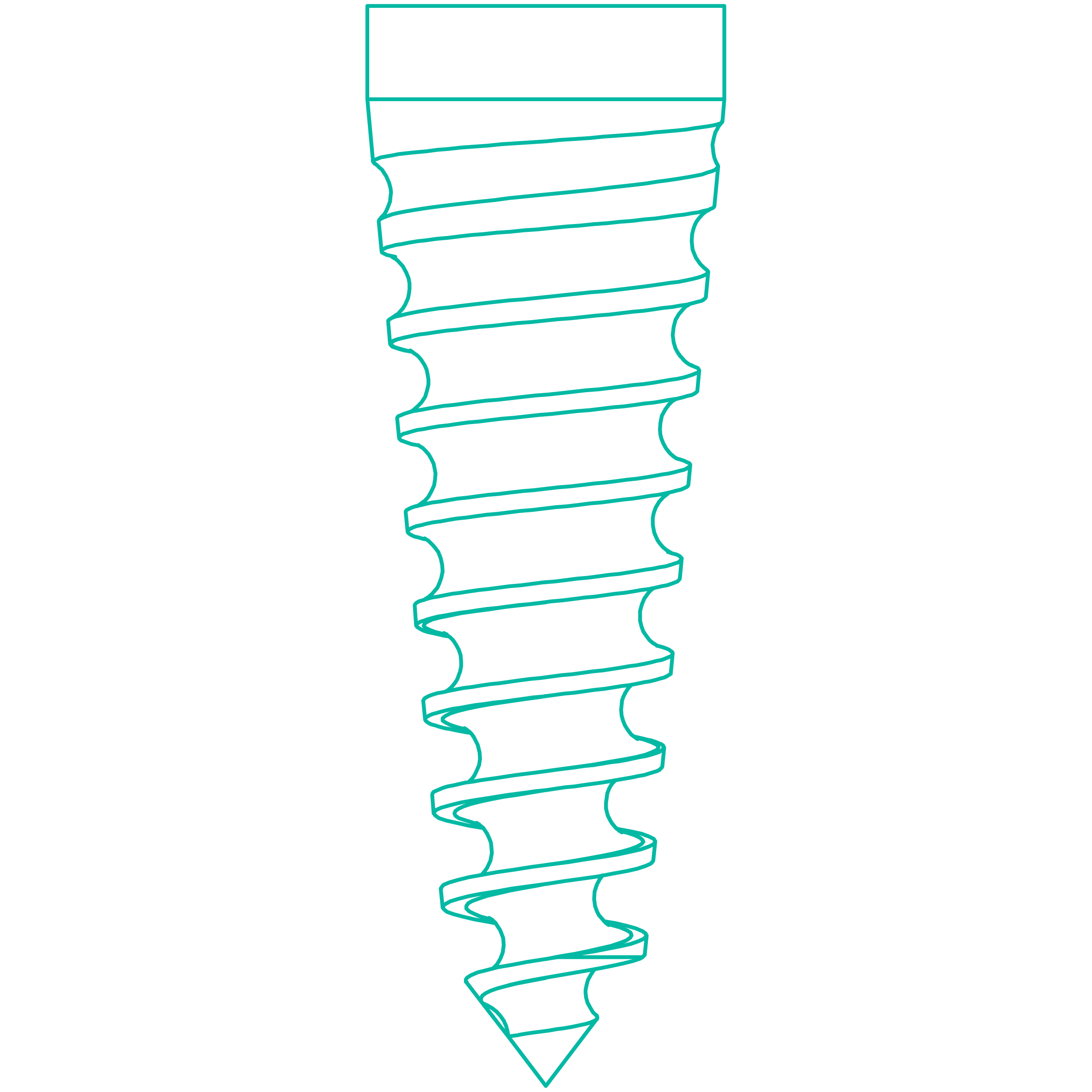

  • Bone levelInternal Hexagon

    U-Type

    Universal design for D1 to D4 bone.

    Ø
    3.8 · 4.2 · 5.0 mm
    L
    6 to 16 mm
    $100 · 18 SKUs

  • Bone levelInternal Hexagon

    A-Type

    Conical core. Controlled insertion.

    Ø
    3.5 · 4.2 · 5.0 mm
    L
    10 to 20 mm
    $70 · 16 SKUs

  • Bone levelInternal Hexagon

    S-Type

    Spiral, self-tapping body.

    Ø
    3.3 · 3.75 · 4.2 · 5.0 mm
    L
    8 to 18 mm
    $70 · 22 SKUs

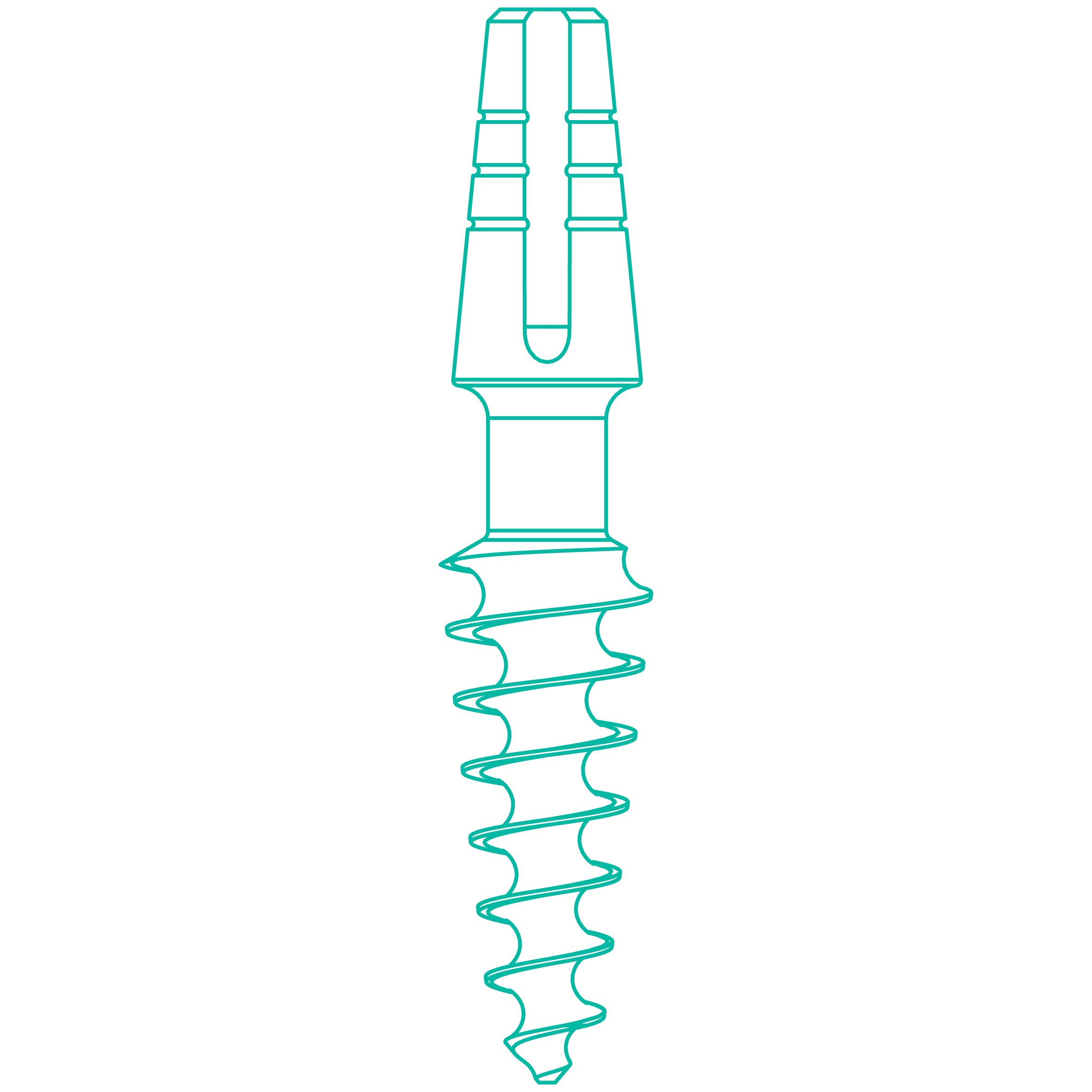

  • One-pieceInternal Hexagon

    Compressive

    Neck bends up to 30° chairside.

    Ø
    3.0 · 3.5 · 4.0 · 4.5 · 5.0 mm
    L
    6 to 20 mm
    $80 · 33 SKUs

  • Bone levelInternal Hexagon

    C-Type

    Parallel wall, dual multi-thread.

    Ø
    3.3 · 3.75 · 4.2 · 5.0 mm
    L
    8 to 16 mm
    $70 · 20 SKUs

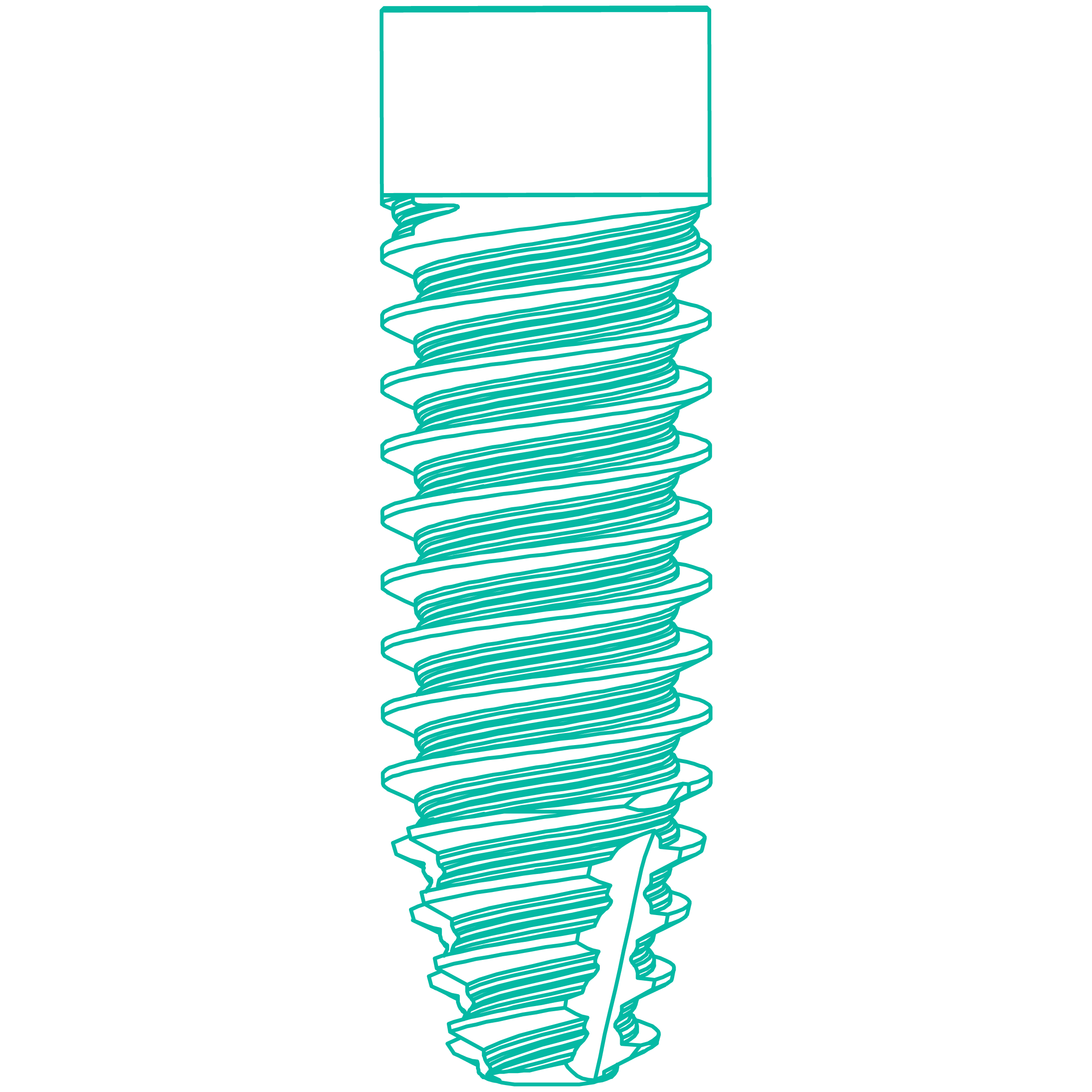

  • Tissue levelInternal Hexagon

    C-Type Tissue Level

    2.0 mm gold PVD neck.

    Ø
    3.3 · 3.75 · 4.2 mm
    L
    8 to 16 mm
    $80 · 15 SKUs

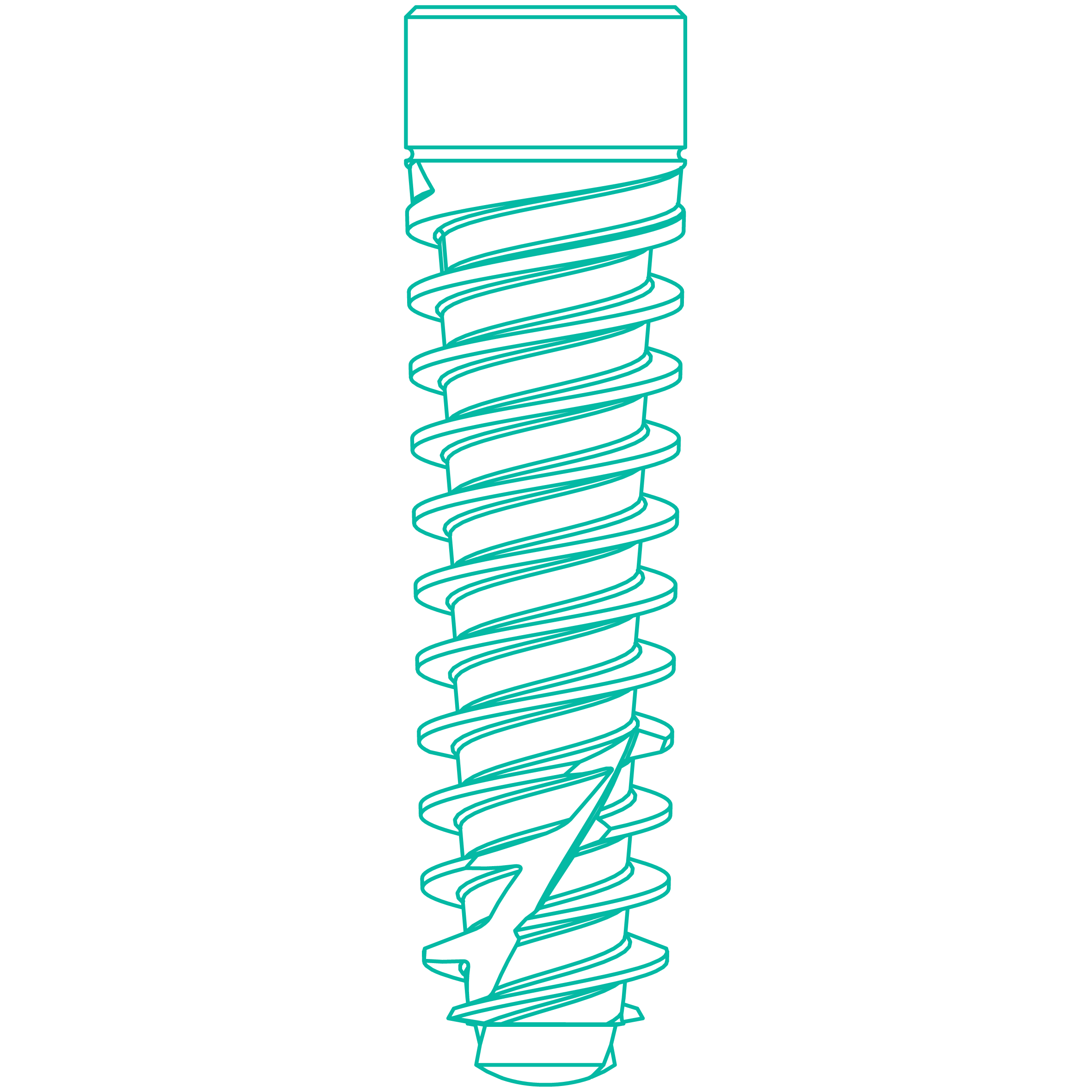

  • PterygoidInternal Hexagon

    Pterygoid - Neck 2 mm

    2 mm smooth neck, posterior maxilla.

    Ø
    4.2 mm
    L
    16 to 28 mm
    $90 · 6 SKUs

  • PterygoidInternal Hexagon

    Pterygoid 4mm TiN Neck

    4.0 mm TiN-coated neck.

    Ø
    4.2 mm
    L
    18 to 28 mm
    $90 · 5 SKUs

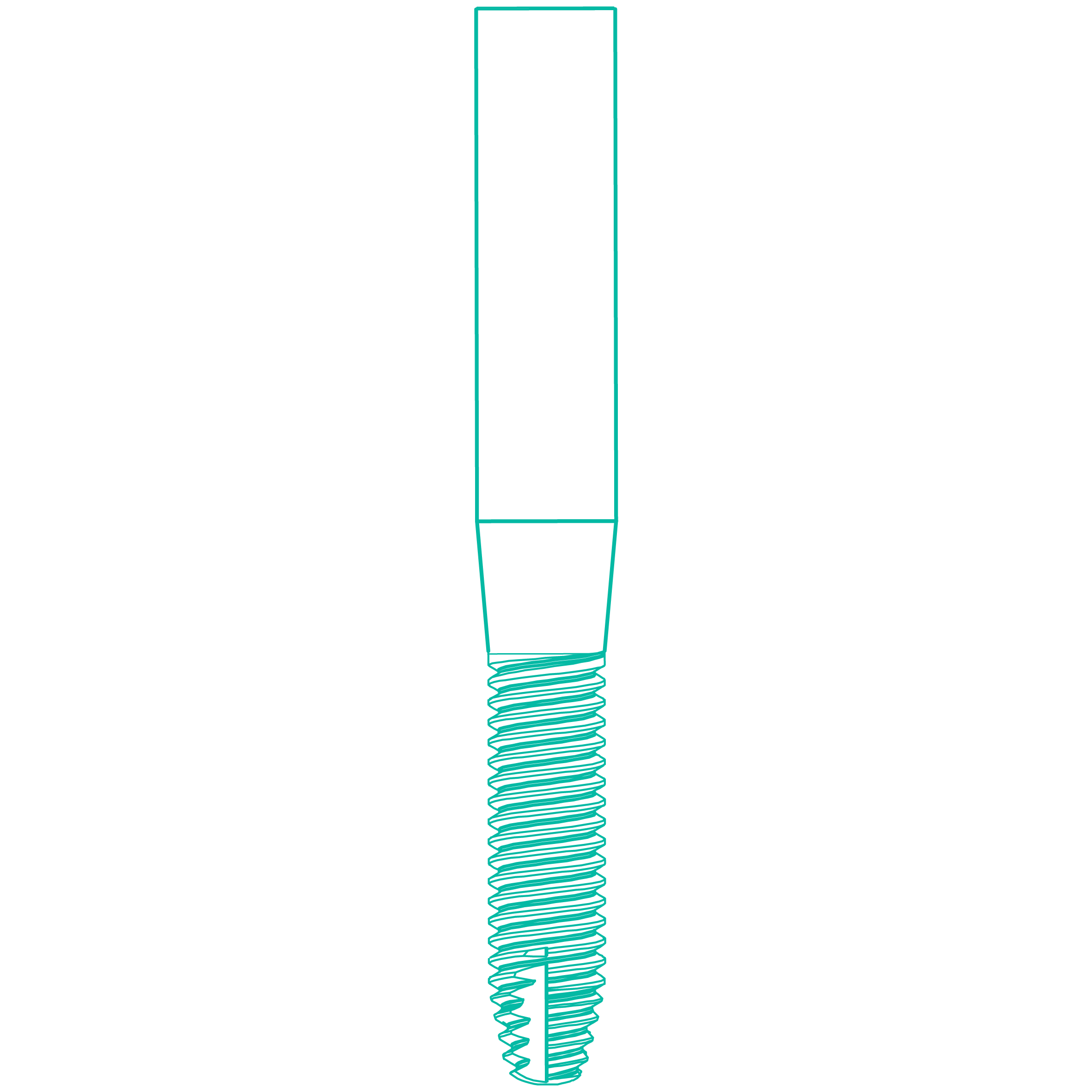

  • ZygomaticInternal Hexagon

    Zygomatic

    For severe maxillary atrophy.

    Ø
    3.5 · 4.2 mm
    L
    30 to 60 mm
    $350 · 26 SKUs

  • Bone levelConical Connection

    C-LSA – RP Platform

    Parallel wall, conical connection.

    Ø
    4.0 · 5.0 mm
    L
    7 to 16 mm
    $70 · 10 SKUs

  • Bone levelConical Connection

    LSA-Type – NP Platform

    Narrow spiral, conical connection.

    Ø
    3.5 mm
    L
    8 to 15 mm
    $70 · 5 SKUs

  • Bone levelConical Connection

    LSA-Type – RP Platform

    Self-drilling spiral, conical connection.

    Ø
    4.3 · 5.0 mm
    L
    8 to 15 mm
    $70 · 9 SKUs

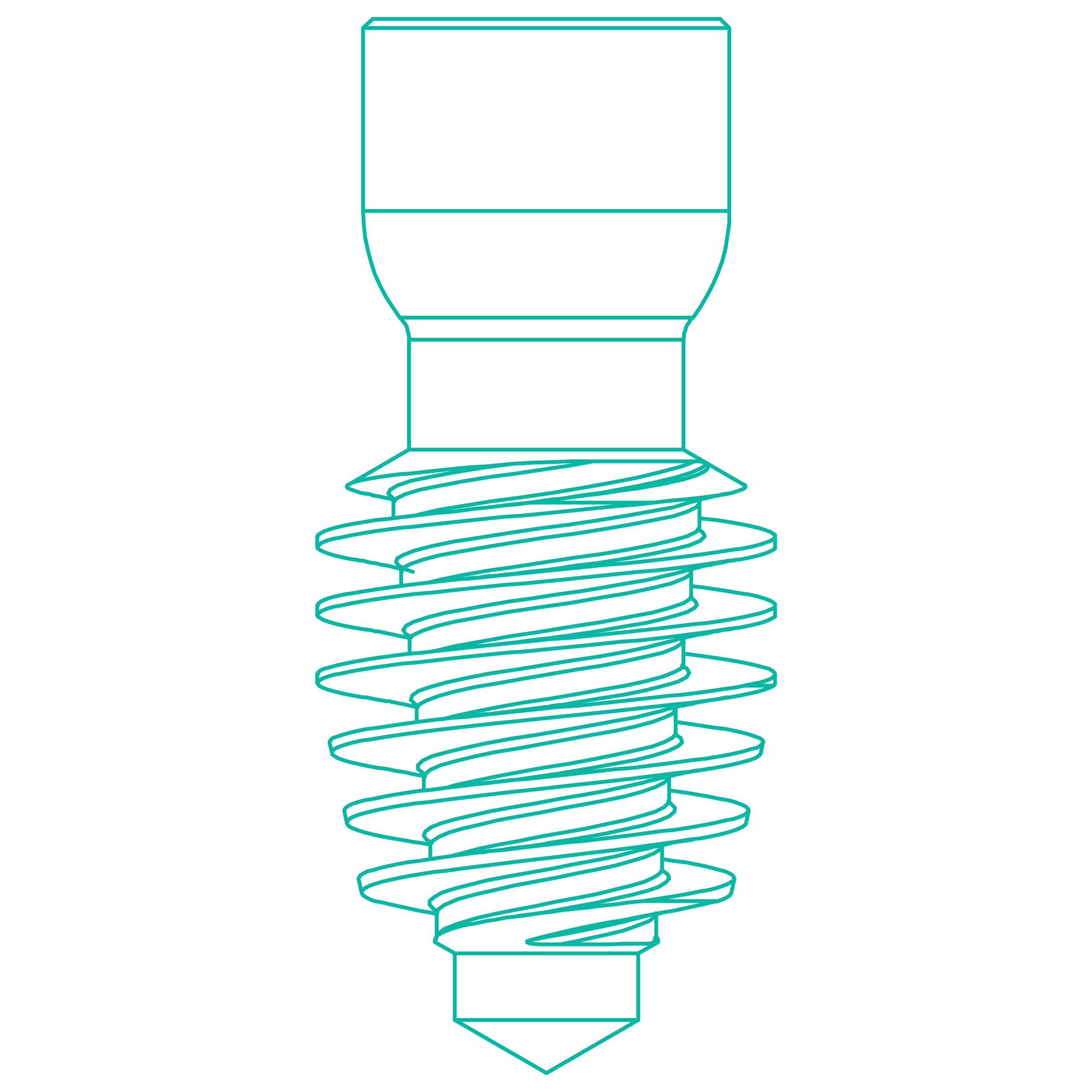

  • CorticalInternal Hexagon

    SC-Type Cortical

    3.5 mm neck for cortical engagement.

    Ø
    4.0 · 5.0 mm
    L
    10 to 16 mm
    $80 · 7 SKUs

Before you order

Not sure which part fits?

Three ways to get it right before the order ships.

2 Trial kitsTry complete workflows with ready-to-use evaluation kits.Get a trial kit →3 Bulk and clinic supplyCombine implants, abutments and components in one supply program.Bulk order program →
Browse Surcam dental implants and prosthetic components organized by connection type, placement level, and clinical application. Systems are structured to support consistent fit, streamlined workflows, and scalable procurement across clinics, laboratories, and distribution networks.
  • Internal Hex Implants: a widely adopted platform offering broad prosthetic compatibility.
  • Conical Connection Implants: feature a tapered interface for enhanced stability and interface control.
  • Bone-Level and Tissue-Level Implants: support flexible placement strategies for various surgical and prosthetic approaches.
  • Immediate and Full-Arch Systems: designed for high stability workflows and multi-unit restorations.
  • Advanced Solutions: include zygomatic and pterygoid implants for complex anatomical cases.
Complete each system with compatible components, including abutments, multi-unit systems, CAD/CAM Ti-bases, impression copings, and surgical tools. This ensures platform consistency and long-term restorative predictability.

Dental Implants: Clinical Taxonomy and Selection Signals

Dental implants are medical-grade titanium fixtures placed within the jawbone to support prosthetic restorations. A complete implant system includes the implant body, abutment, and restorative components, functioning as a load-bearing replacement for missing teeth.

Types of Dental Implants

Endosteal implantsThese implants are placed directly within the jawbone and represent the standard option for most clinical indications.Subperiosteal implantsThese implants are positioned over the bone, beneath the periosteum, and are reserved for cases with insufficient bone volume.Platform architecture (system selection)

  • Internal hex connection: Provides mechanical indexing, is widely used, and permits efficient inventory management.
  • Conical connection: Features a tapered interface that improves the seal and stability of the implant.
  • Bone-level versus tissue-level: Selection depends on the desired prosthetic emergence profile and clinical workflow.

Dental Implant Indications (Restorative Workflows)

Single-tooth replacementImplant-supported crowns are used for localized edentulism.Multi-unit restorationImplant-supported bridges are indicated for replacing multiple adjacent teeth.Full-arch rehabilitationImplant-supported fixed or removable prostheses, such as All-on-X frameworks, are used for full-arch rehabilitation.Immediate or early loading protocolsThe use of immediate or early loading protocols depends on primary stability, bone quality, and the chosen surgical protocol.

Clinical Considerations (Benefits and Limitations)

Advantages

  • Restores masticatory function and promotes proper occlusal load distribution.
  • Supports soft-tissue structure and enhances aesthetic outcomes.
  • It may help reduce progressive bone resorption following tooth loss.

Limitations

  • Surgical placement has inherent procedural risks.
  • Adequate bone volume is required, or bone augmentation procedures may be necessary.
  • Long-term success depends on patient hygiene, ongoing maintenance, and appropriate case selection.

FAQ

Dental Implants FAQ

All FAQs →
What are dental implants?

Dental implants are medical devices placed in the jawbone to support restorations such as crowns, bridges or dentures.

What is a dental implant system?

A dental implant system consists of an implant body and an abutment and may also include an abutment fixation screw.

What are the parts of a dental implant (post/abutment/crown)?

Many implant restorations include a threaded implant body (root substitute), an abutment connector, and a crown/bridge/denture as the restoration.

Are dental implants titanium?

Many dental implants are titanium; some systems may use ceramic materials depending on clinical requirements.

How do dental implants work?

They work through osseointegration, where bone heals tightly around the implant surface to provide stability.

How long does dental implant healing take?

Healing varies by case; bone healing and staged treatment can take several months.

What is the difference between internal hex and conical connection implants?

They differ by implant–abutment interface design; connection type influences component compatibility and restorative workflow within a system platform.

What is the difference between bone‑level and tissue‑level implants?

Bone‑level designs place the platform at/near crestal bone for emergence control; tissue‑level designs incorporate a transmucosal collar concept.

Who can purchase dental implants from Surcam Dental?

Surcam products are supplied to licensed dental professionals, laboratories and authorised distributors.

What should be recorded for traceability?

Record the implant brand and model used in patient records for maintenance and future component matching.
