SKU : U38008INX
U-Type Dental Implant
Regular price $100.00 USD
Download IFU (PDF)

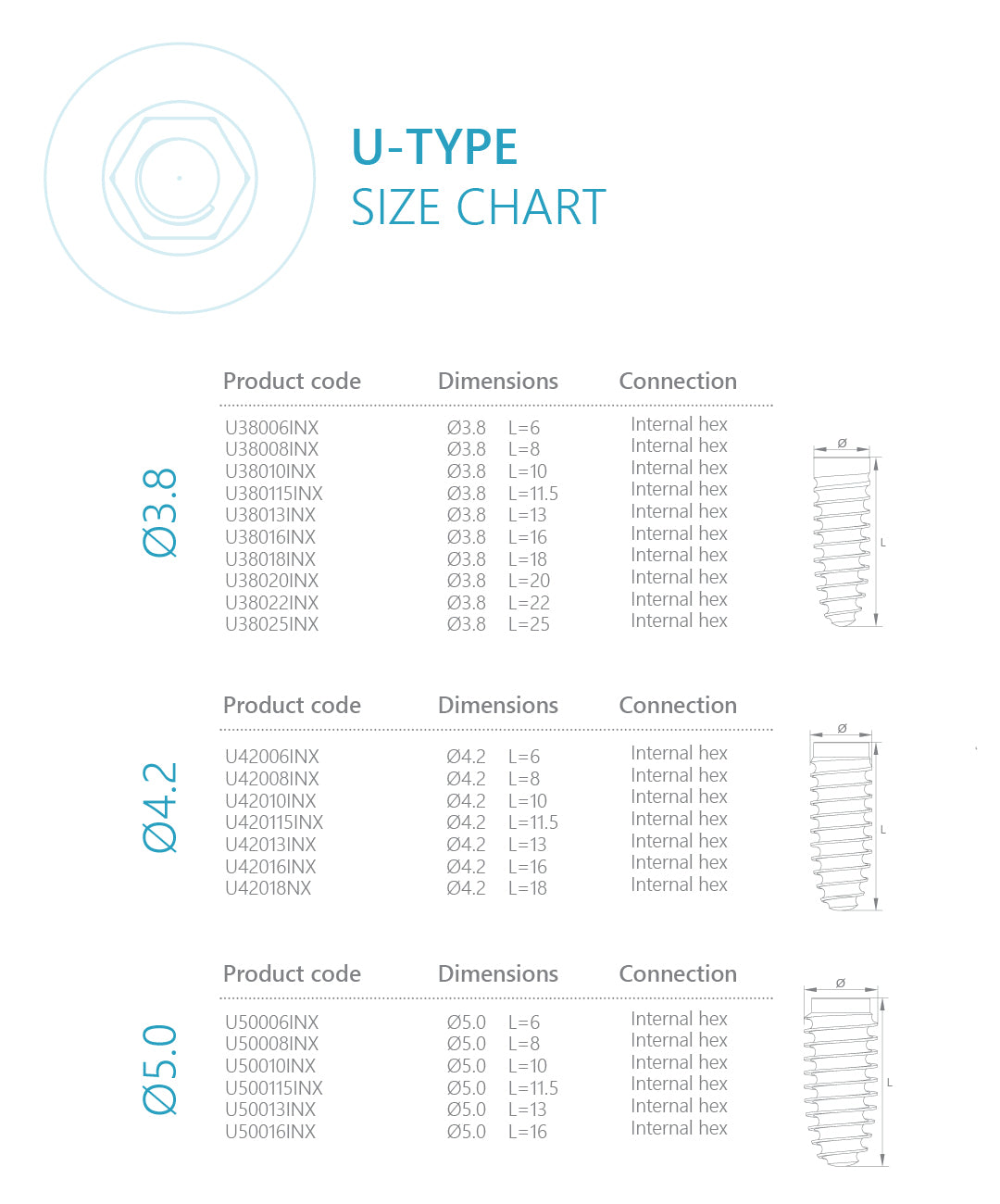

| Length | SKU / Stock | Price | Qty |
|---|---|---|---|
| Ø3.8 8.0 mm | SKU: U38008INX | $100.00 | |
| Ø3.8 10.0 mm | SKU: U38010INX | $100.00 | |
| Ø3.8 11.5 mm | SKU: U380115INX | $100.00 | |
| Ø3.8 13.0 mm | SKU: U38013INX | $100.00 | |
| Ø3.8 6.0 mm | N/A | — |
|
| Ø3.8 16.0 mm | SKU: U38016INX | $100.00 |
| Length | SKU / Stock | Price | Qty |
|---|---|---|---|
| Ø4.2 8.0 mm | SKU: U42008INX | $100.00 | |
| Ø4.2 10.0 mm | SKU: U42010INX | $100.00 | |
| Ø4.2 11.5 mm | SKU: U420115INX | $100.00 | |
| Ø4.2 13.0 mm | SKU: U42013INX | $100.00 | |
| Ø4.2 6.0 mm | SKU: U42006INX | $100.00 | |
| Ø4.2 16.0 mm | SKU: U42016INX | $100.00 |
| Length | SKU / Stock | Price | Qty |
|---|---|---|---|
| Ø5.0 8.0 mm | SKU: U50008INX | $100.00 | |
| Ø5.0 10.0 mm | SKU: U50010INX | $100.00 | |
| Ø5.0 11.5 mm | SKU: U500115INX | $100.00 | |
| Ø5.0 13.0 mm | SKU: U50013INX | $100.00 | |
| Ø5.0 6.0 mm | SKU: U50006INX | $100.00 | |
| Ø5.0 16.0 mm | SKU: U50016INX | $100.00 |
Complete the treatment
510(k) Cleared & CE & ISO 13485 Certified
Meets U.S. & international standards
Precision Fit
Engineered for major implant systems
Fast Shipping
Reliable delivery & easy re-ordering
Ask about U-Type Dental Implant
Product Details

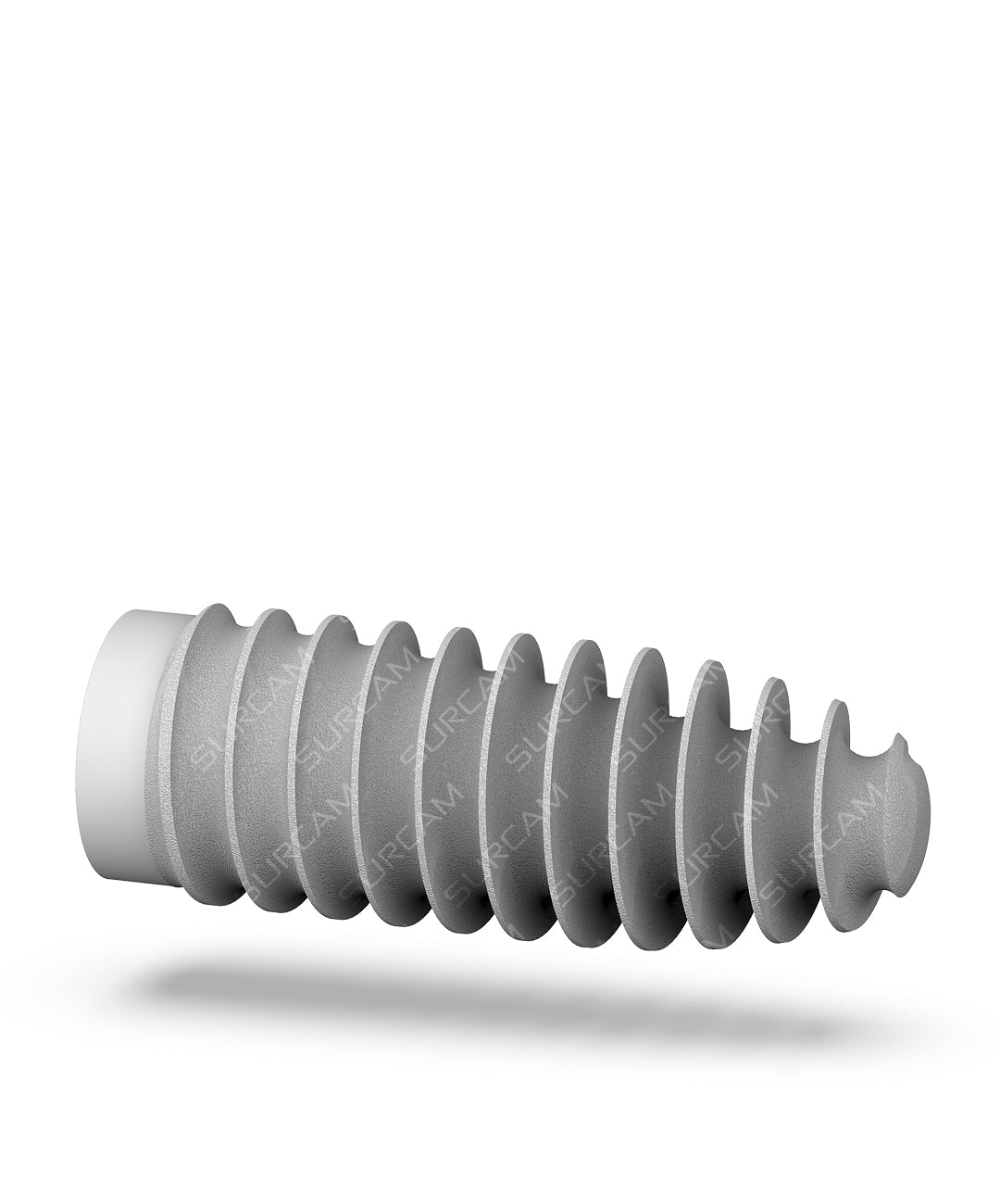

The U-Type Dental Implant (Universal System) is Surcam’s most advanced design, engineered for maximum primary stability in all bone densities (D1–D4). Designed for clinicians seeking consistency, control, and performance, the U-Type system delivers reliable results in both routine and complex cases.
A deep, knife-edge thread geometry and tapered body enable active bone condensation during insertion, resulting in high insertion torque and strong mechanical anchorage, even in soft or compromised bone.
The implant’s macro design is enhanced by a precision-engineered SLA (Sandblasted, Large grit, Acid-etched) surface that promotes rapid bone cell attachment and accelerated osseointegration, supporting immediate and early loading protocols.
The U stands for Universal, reflecting a system designed for consistent performance across indications, bone qualities, and clinical workflows. The U-Type implant maintains stability, control, and predictability in both dense cortical bone (D1) and low-density cancellous bone (D4).
The system offers a simplified, efficient surgical protocol that enables faster procedures and reduces chair time while maintaining clinical accuracy and outcomes.

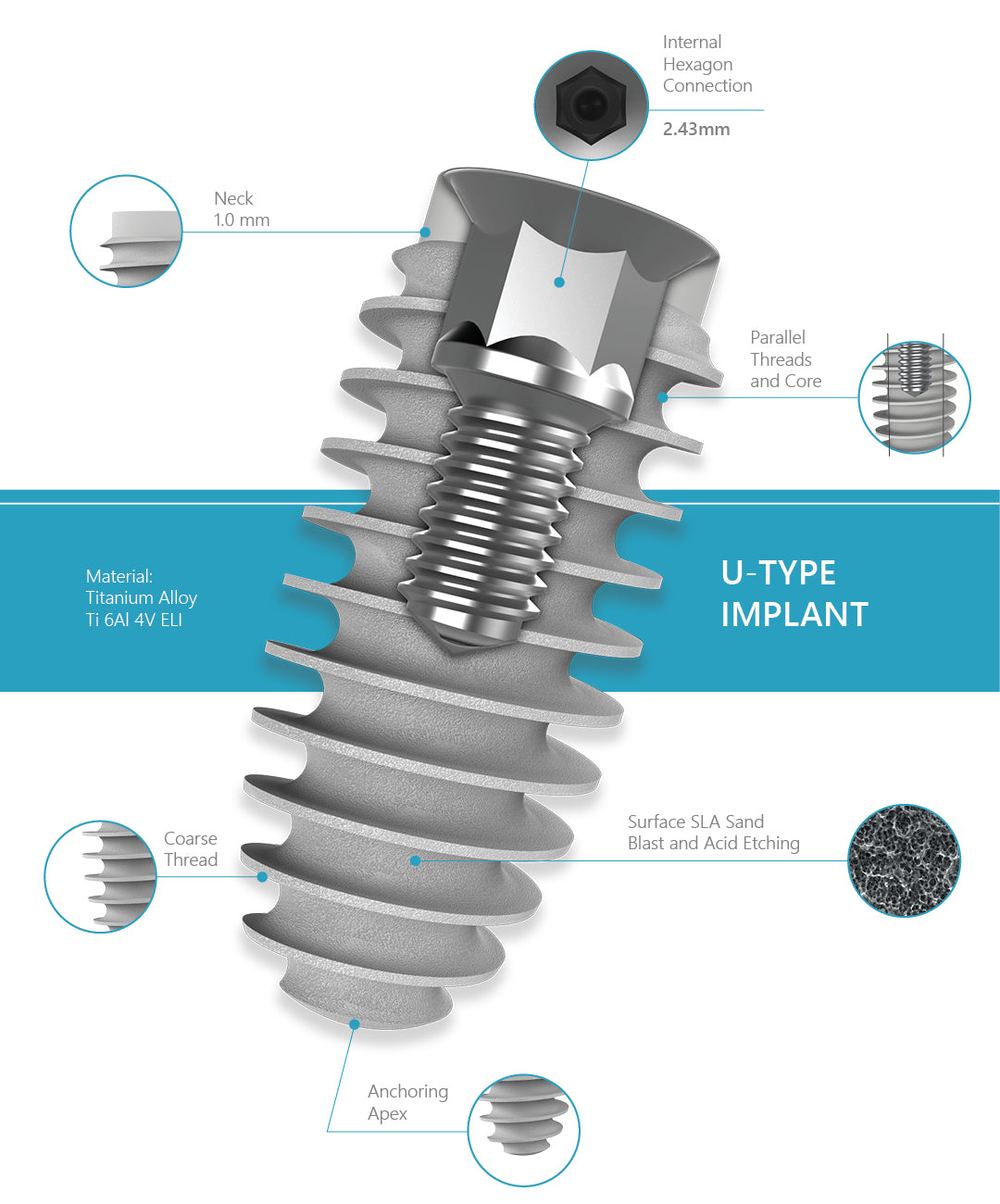

Key Features
-
Universal implant system (D1–D4 bone compatibility)
-
Maximum primary stability through aggressive knife-thread design
-
Tapered body with self-cutting threads for bone condensation
-
Internal Hex connection for prosthetic versatility
-
SLA surface treatment for enhanced osseointegration
-
Optimized for immediate placement and loading
-
Streamlined surgical protocol for efficiency and precision
-
Manufactured from Titanium Grade 5 (Ti-6Al-4V)

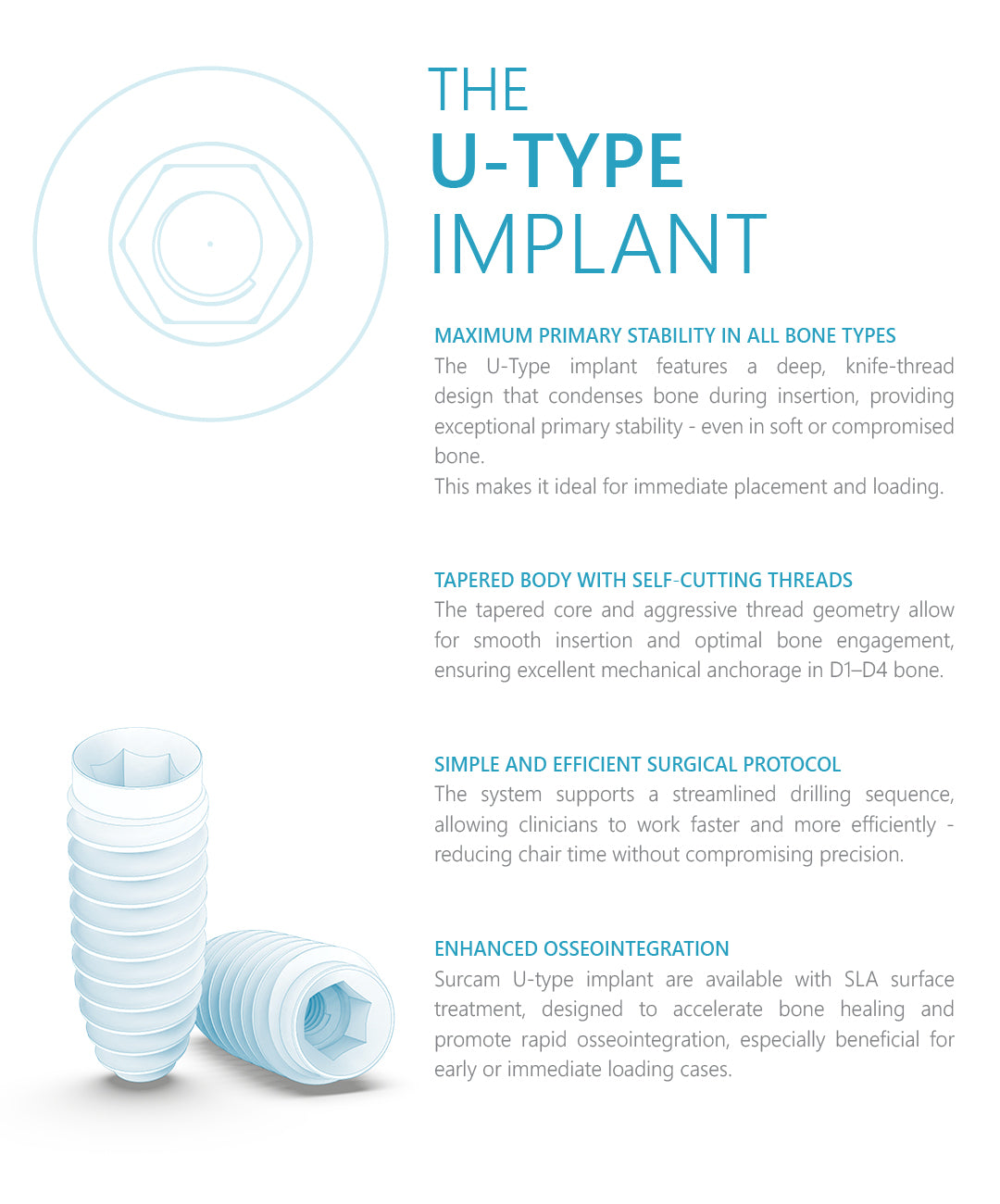

Clinical Performance Highlights
Maximum Primary Stability in All Bone Types
Deep, aggressive threads condense bone during insertion to achieve high insertion torque and stability, even in D3–D4 bone.
Tapered Body with Self-Cutting Threads
Provides controlled insertion, optimal bone engagement, and strong mechanical anchorage in all bone densities.

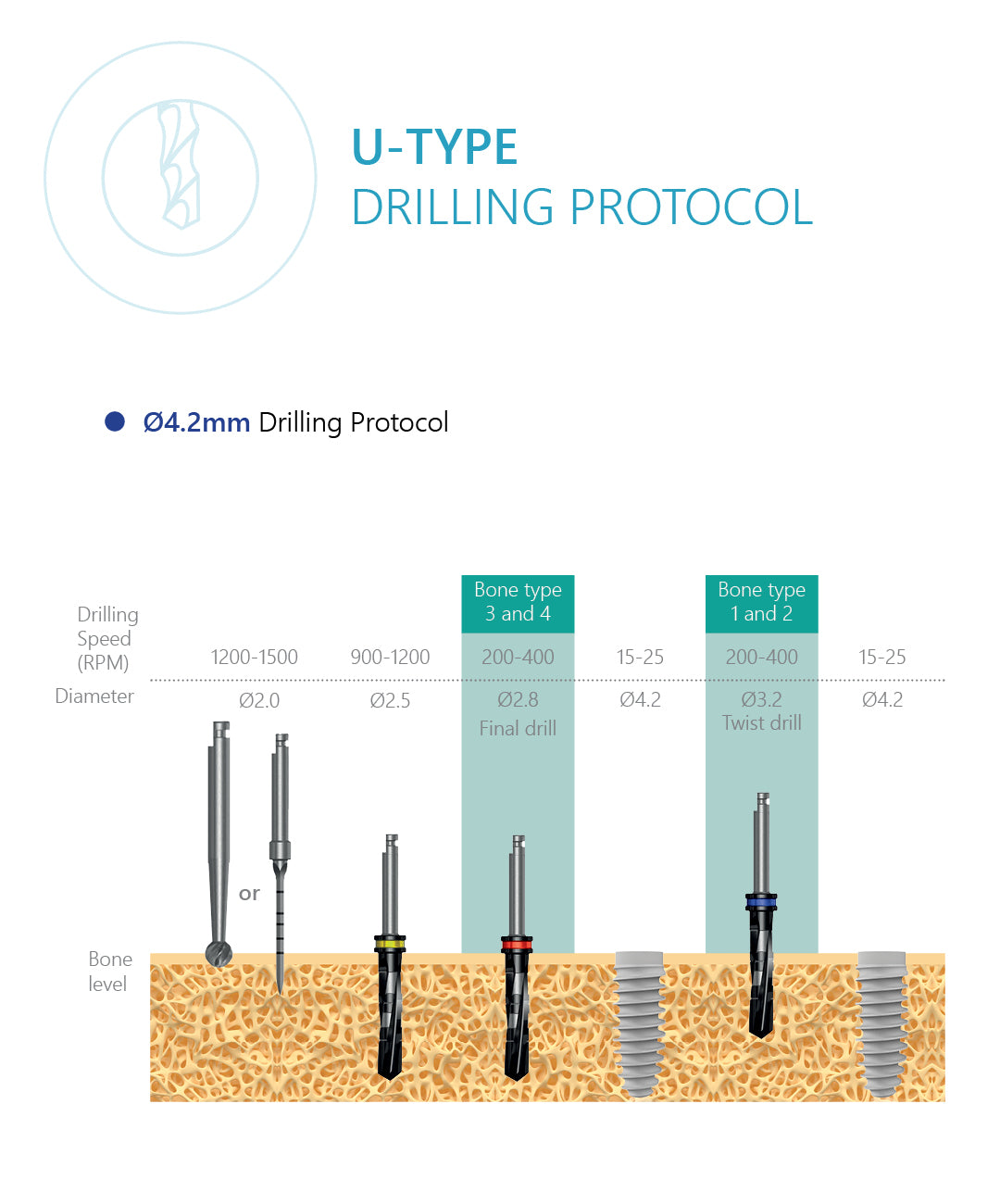

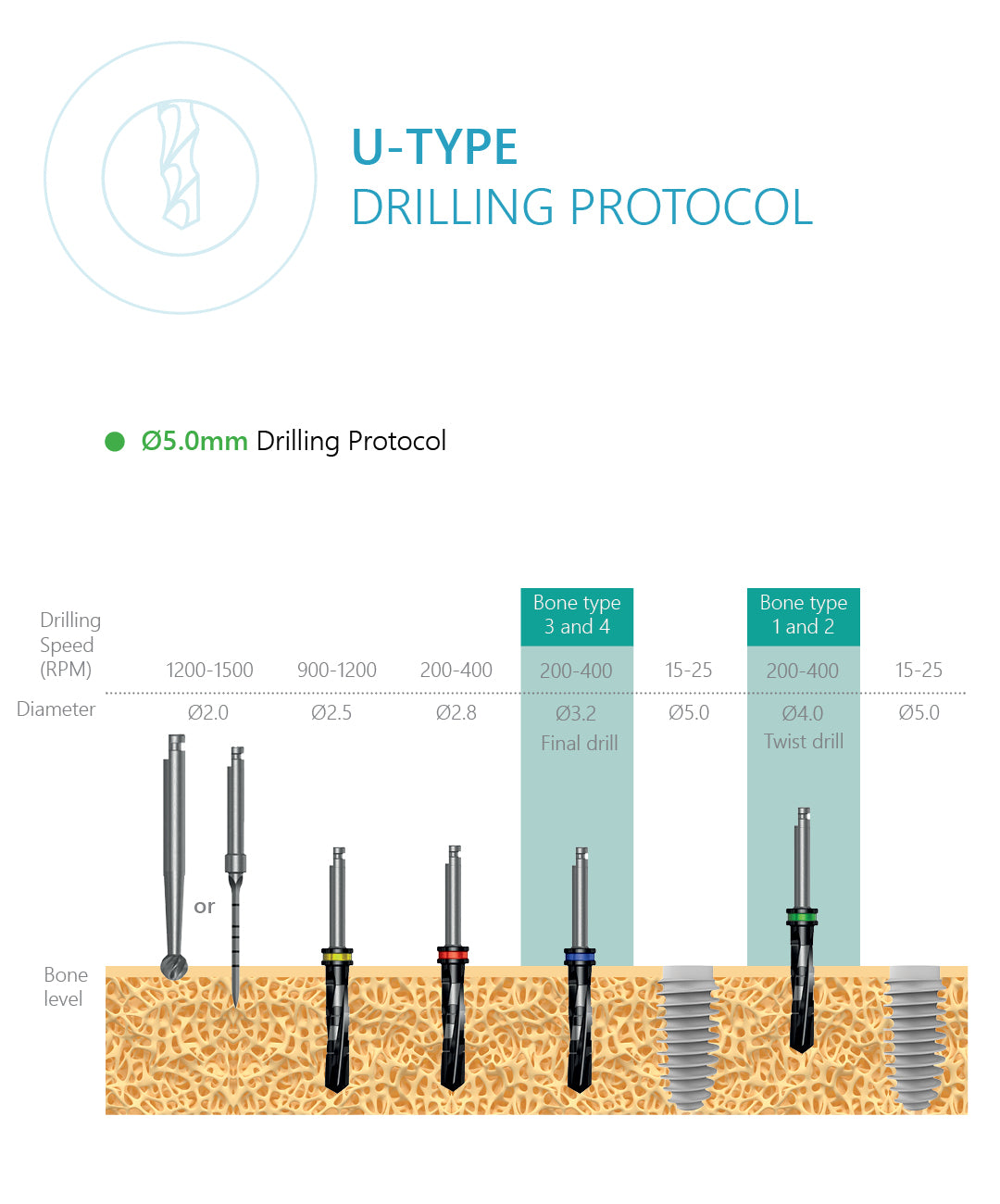

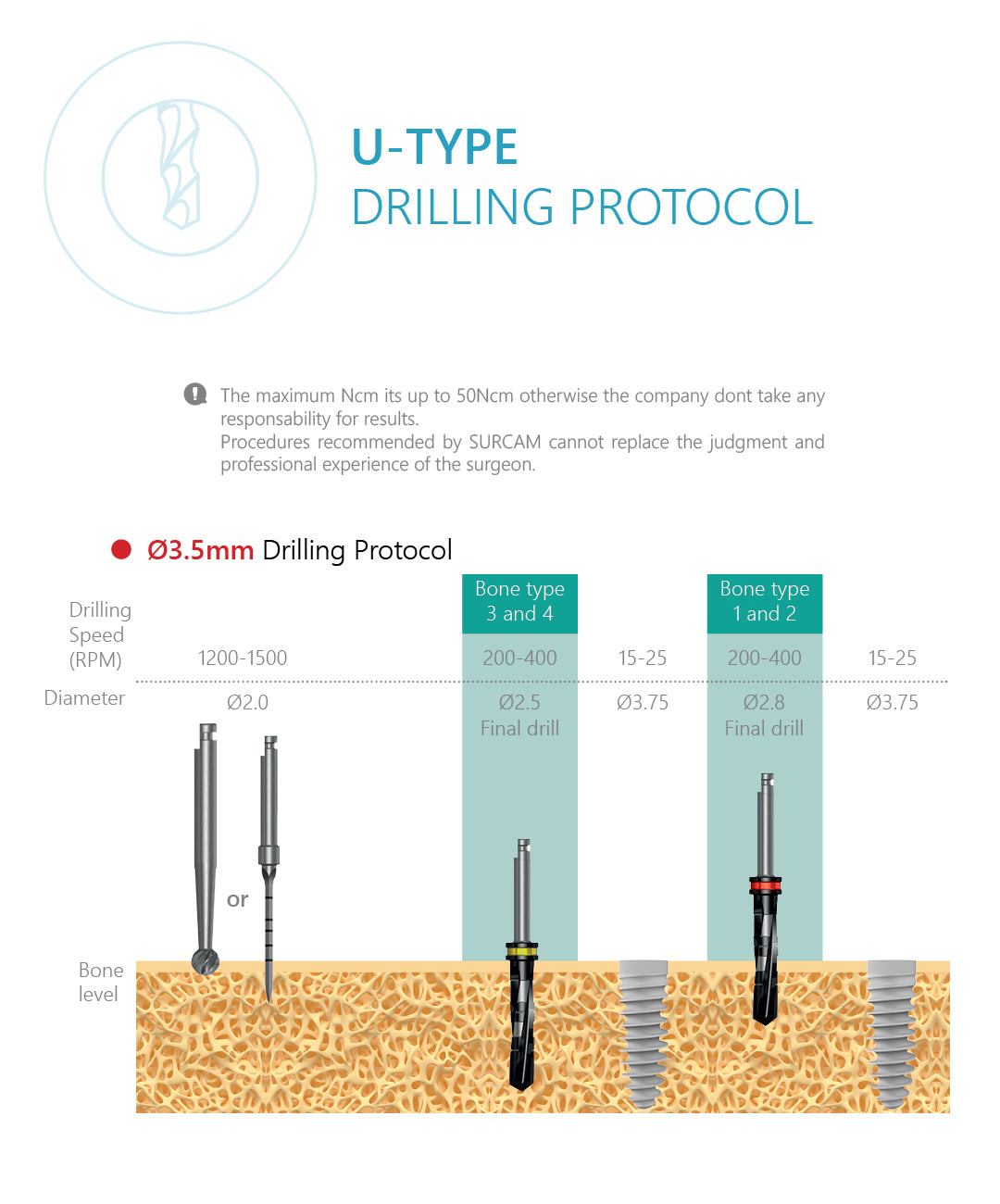

Simplified Surgical Workflow
A reduced drilling sequence allows for faster, more efficient procedures while maintaining surgical precision.
Enhanced Osseointegration
The SLA surface promotes rapid bone healing and strong bone-to-implant contact, making it ideal for immediate loading cases.
