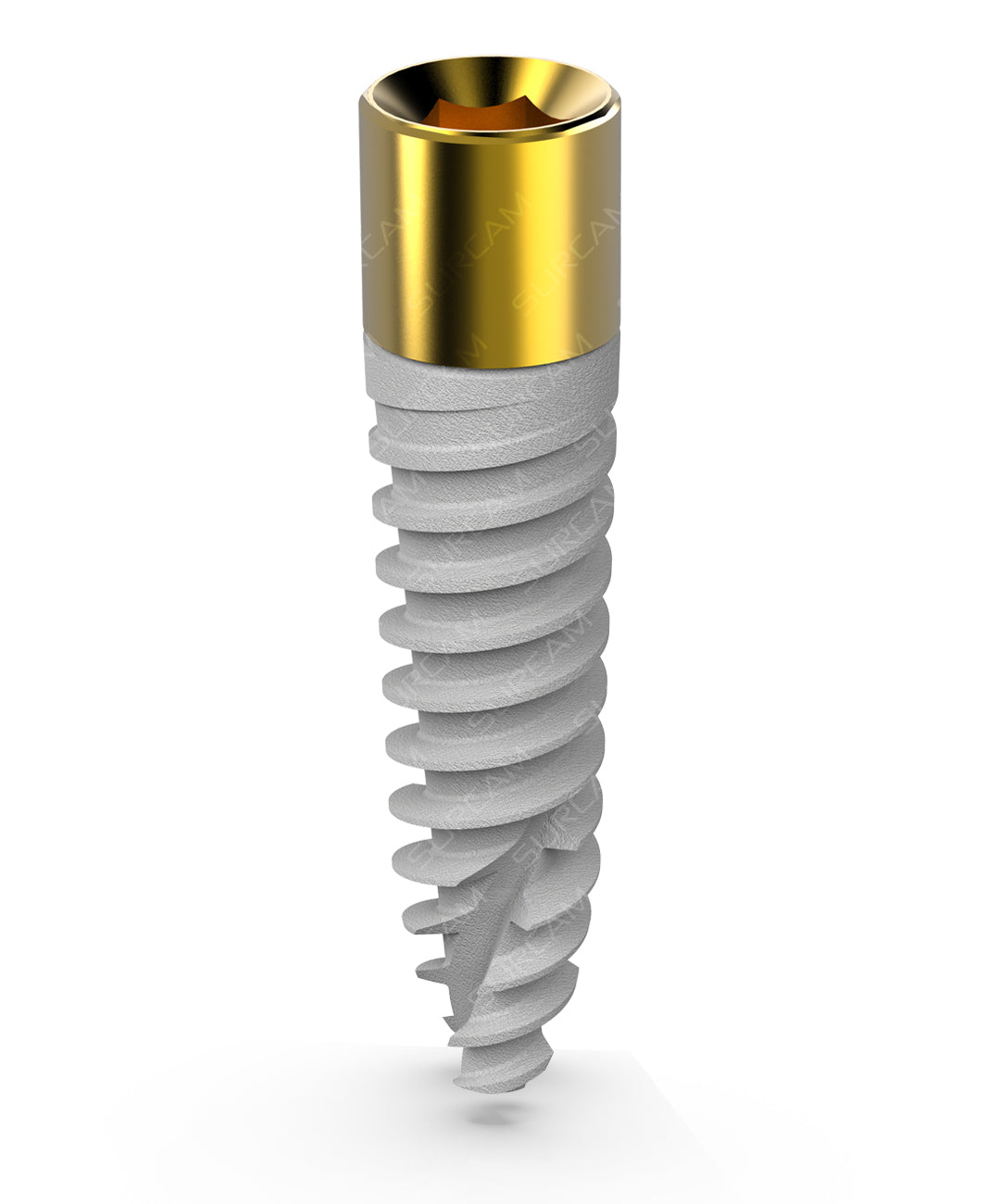

pterygoid dental implant 4 mm tin neck internal hex 2.43

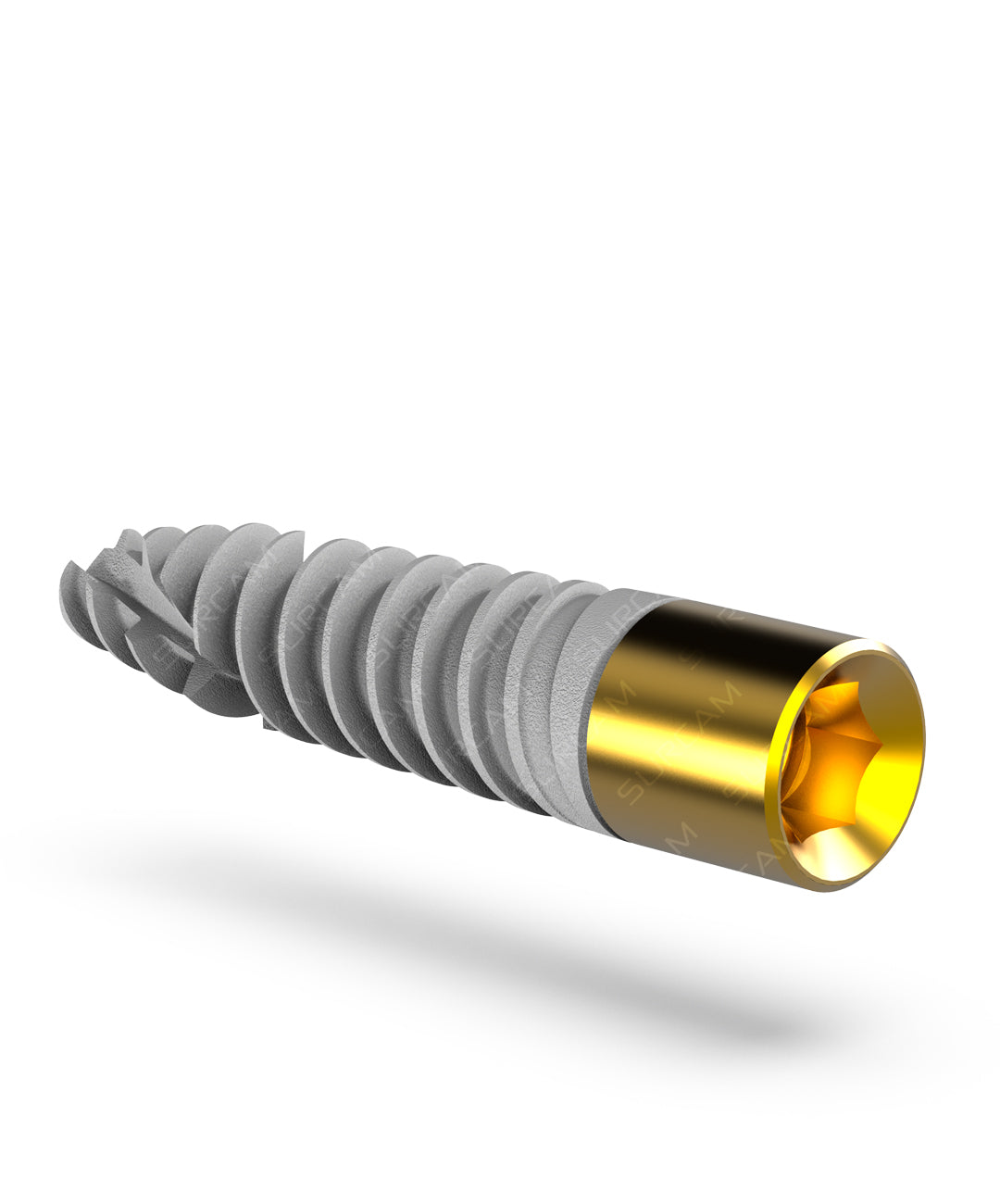

Surcam titanium alloy pterygoid implant with SLA surface treatment

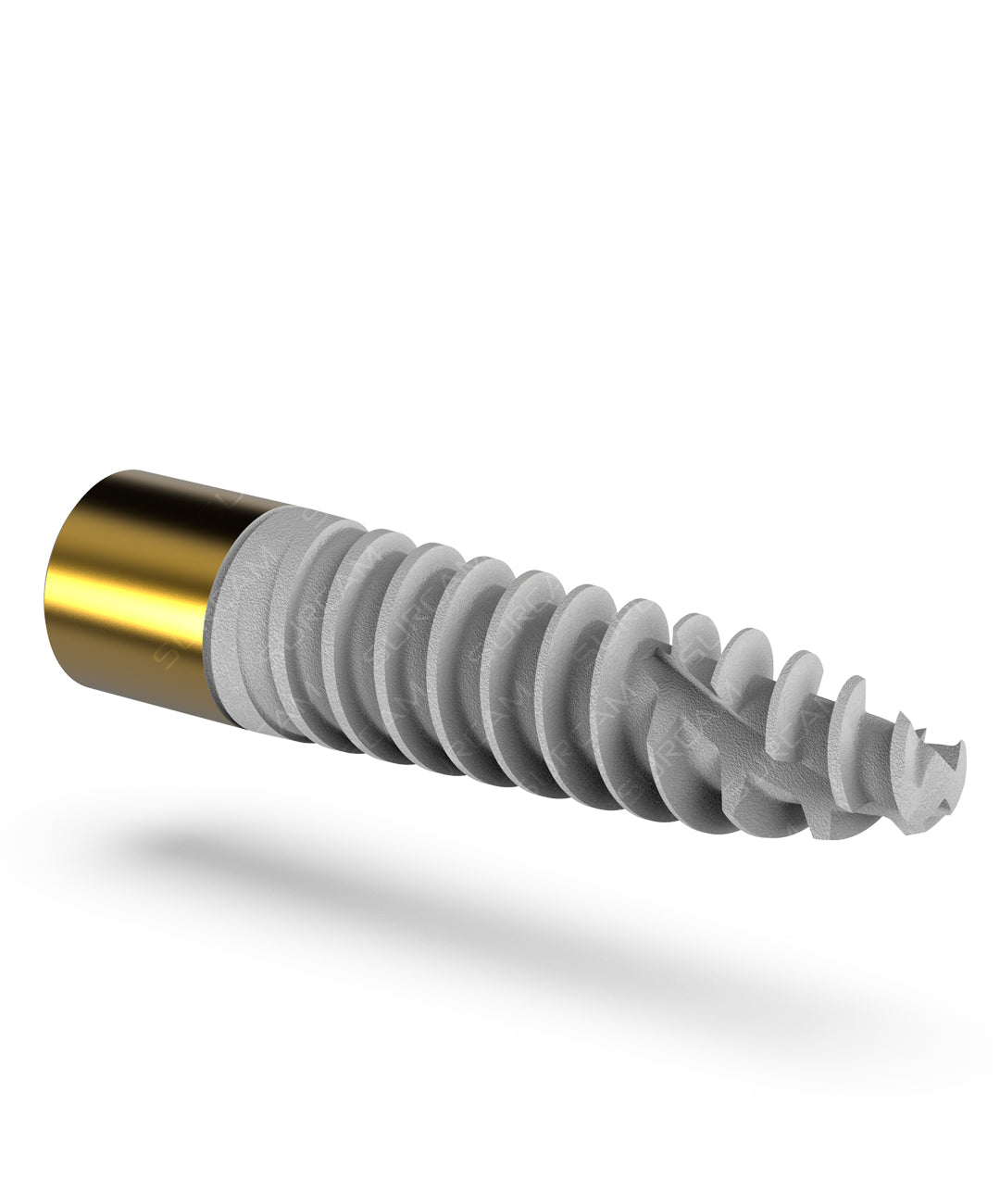

Internal hexagon connection pterygoid implant for upper jaw stability

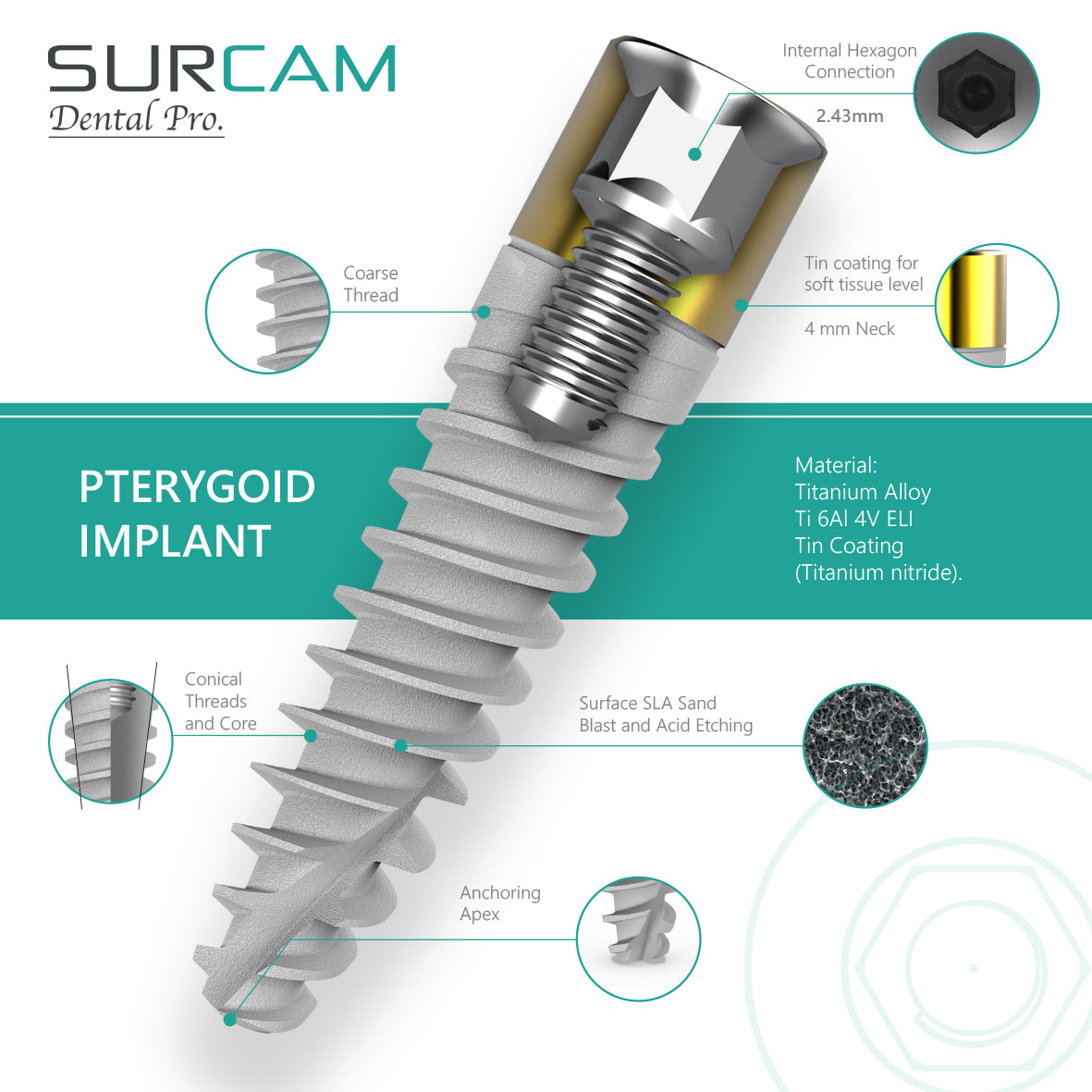

pterygoid dental implant 4 mm tin neck internal hex 2.43 features
SLA_Treatment

Pterygoid Dental Implant 4mm TiN Neck

Regular price $90.00


/

Pterygoid implant for posterior maxilla with 4.0 mm TiN-coated neck for tissue-level emergence. Conical, coarse threads and a 2.0 mm anchoring tip support primary stability. Ti-6Al-4V ELI, SLA surface. Connection: Internal Hex 2.43 mm.

Select Quantities
Ø Diameter:
Length SKU / Stock Price Qty
Ø4.2
18.0 mm
SKU: S42418INX-TT $90.00
Ø4.2
20.0 mm
SKU: S42420INX-TT $90.00
Ø4.2
22.0 mm
SKU: S42422INX-TT $90.00
Ø4.2
25.0 mm
SKU: S42425INX-TT $90.00
Ø4.2
28.0 mm
SKU: S42428INX-TT $90.00
Total (0): $0.00

Spent $350.00 more to get free shipping
Estimated delivery time : - .
Guarantee Safe Checkout

Ask about Pterygoid Dental Implant 4mm TiN Neck

Product Details

The Surcam Pterygoid Implant (4 mm Neck) is engineered for posterior maxillary rehabilitation when conventional sites are limited by bone volume. A titanium nitride–coated 4.0 mm neck provides a smooth, tissue-level collar and visual contrast for margin control. Conical coarse threads and a 2.0 mm anchoring apex support directional control and primary purchase along the pterygoid pathway. The SLA surface (dry alumina blasting + double acid etch) on Grade 5 ELI titanium promotes predictable osseointegration.
Connection / Platform: Internal Hex 2.43 mm (verify interface/fit). Planning via CBCT and adherence to IFU are essential.

FAQs

Is this implant suitable for atrophic posterior maxilla cases?

Yes—pterygoid implants are intended for posterior maxillary rehabilitation when conventional fixtures or grafting are limited. Final indication is case-dependent per IFU and CBCT planning.

What is the benefit of the 4.0 mm TiN-coated neck?

The TiN tissue-level collar offers a smooth, durable surface and visual contrast that can aid margin control and hygiene around the emergence profile.

Which restorative components are compatible?

Use Internal Hex 2.43 mm compatible parts (healing caps, abutments, multi-unit components). Verify platform code and indexing before use.

Can this be used for immediate or early loading?

Selective cases only. Consider immediate/early loading when primary stability/ISQ and occlusal control meet the manufacturer’s IFU criteria.

What surgical planning is recommended?

A CBCT-guided plan assessing zygomatic/pterygoid trajectory, sinus anatomy, and prosthetic space is essential. Follow IFU for osteotomy sequence, irrigation, and torque limits.

Specifications

  • Connection Internal Hex 2.43 mm
  • Neck 4.0 mm tissue-level TiN-coated collar
  • Material Titanium Grade 5 (Ti-6Al-4V ELI)
  • Threads/Core Conical, coarse geometry for anchorage
  • Apex 2.0 mm anchoring tip for stability and trajectory control
  • Surface SLA (dry alumina blasting + double acid etching)
  • Indication Posterior maxilla; pterygoid anchorage (case-dependent)
