Tray Multi Unit - Figure 6

Internal Hex (cone) Multi-Unit kit with M1.4 thread - 24 angled, 18 straight & 42 digital/restorative accessories

The Tray Multi Unit – Figure 6 is a clinic-ready Multi-Unit Internal Hex (cone) kit using M1.4 prosthetic screws. Curated for efficient full-arch and segmental cases, it combines 24 angled and 18 straight MU abutments with a complete set of digital and restorative accessories for predictable path correction, soft-tissue management, and seamless IOS→CAD/CAM workflows.

Benefits

• Full-arch ready — Balanced mix of angled & straight MU abutments for path alignment and passive frameworks.

• Digital workflow included — Scan bodies and digital analogs to accelerate CAD/CAM fabrication.

• Chairside efficiency — One tray covers surgery to provisionalization and final delivery.

• Tissue stewardship — MU healing caps support cleansable emergence during healing.

• M1.4 standardization — Consistent prosthetic screw thread across kit components.

What’s in the Tray

• Multi-Unit Abutments:

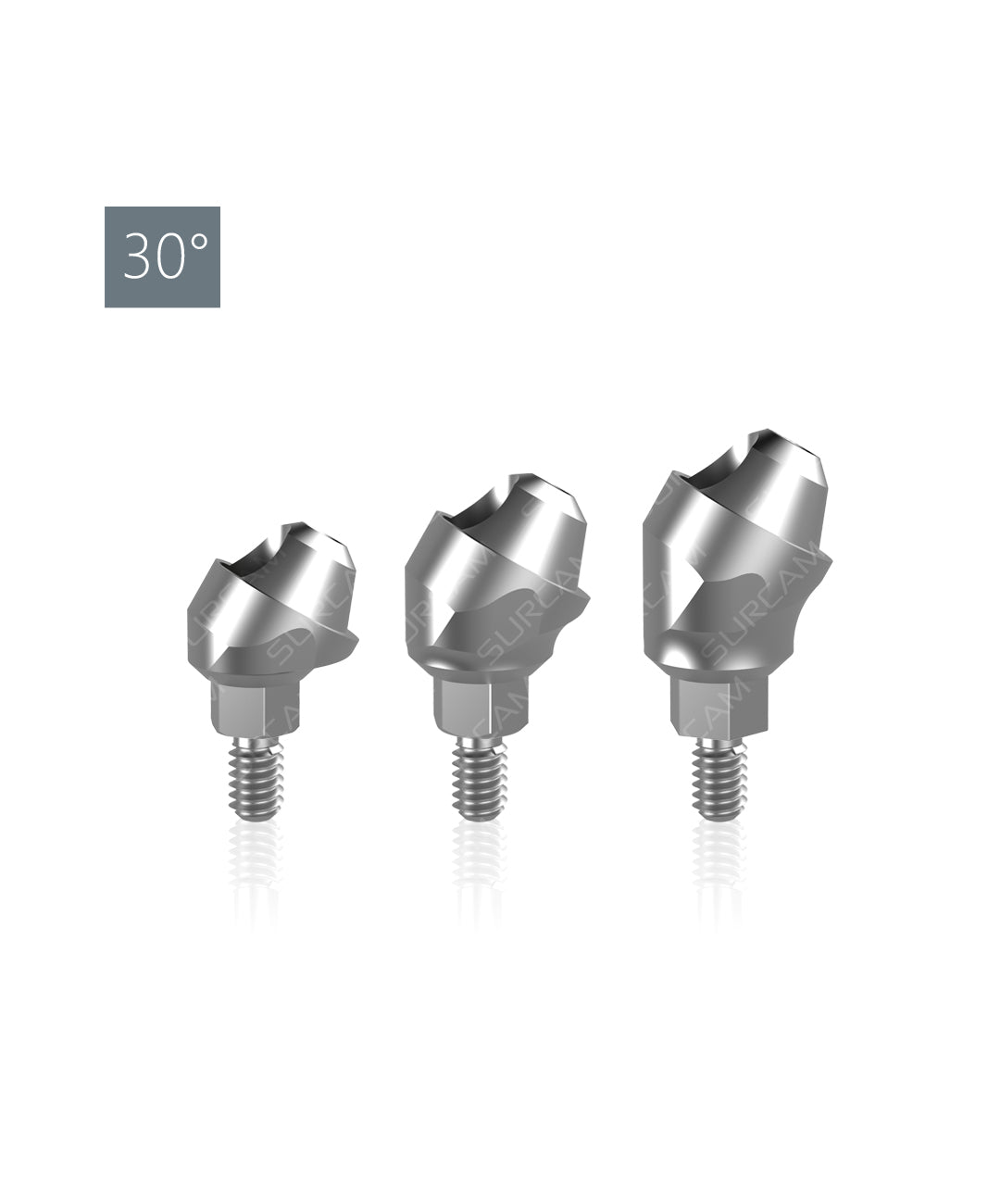

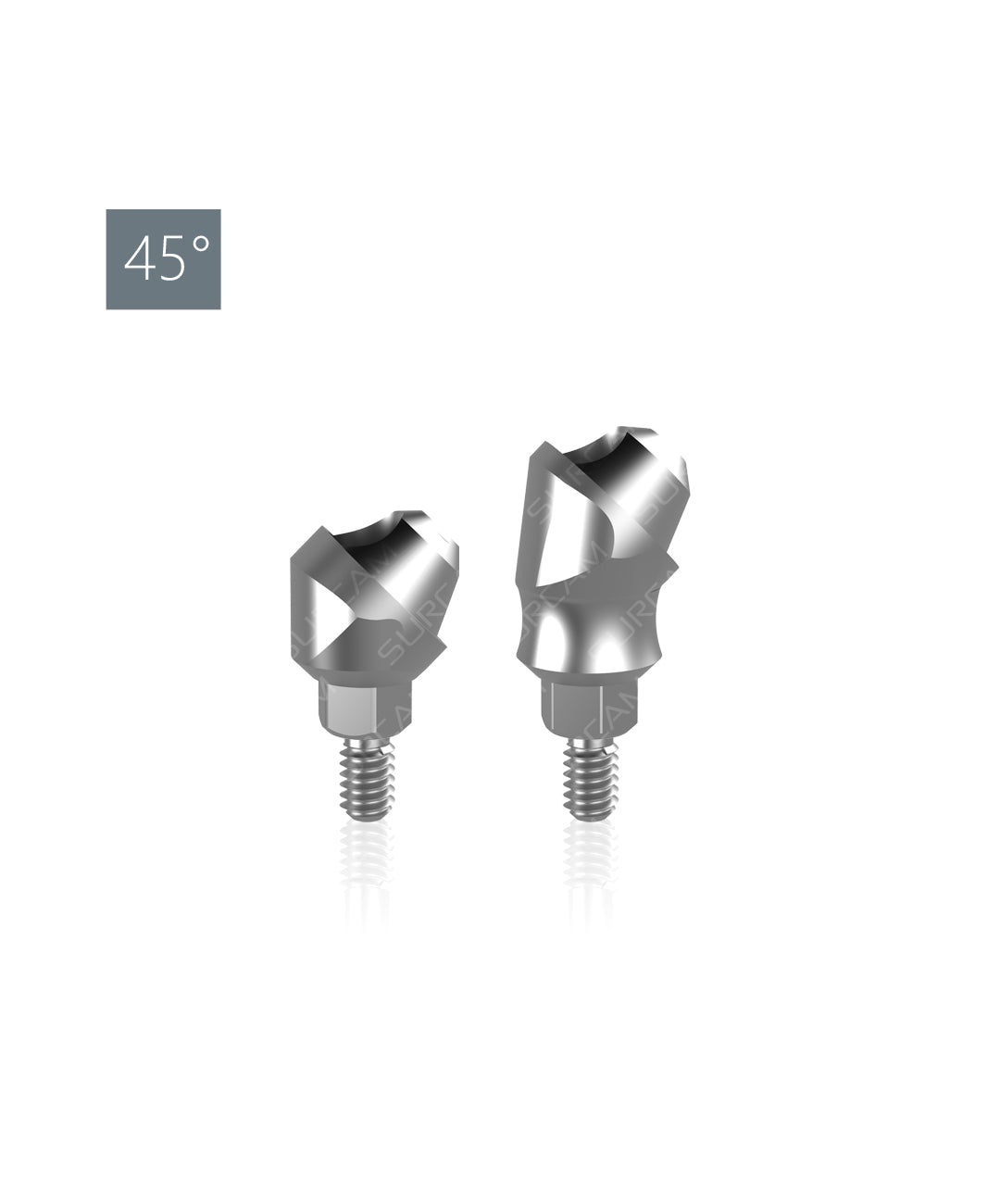

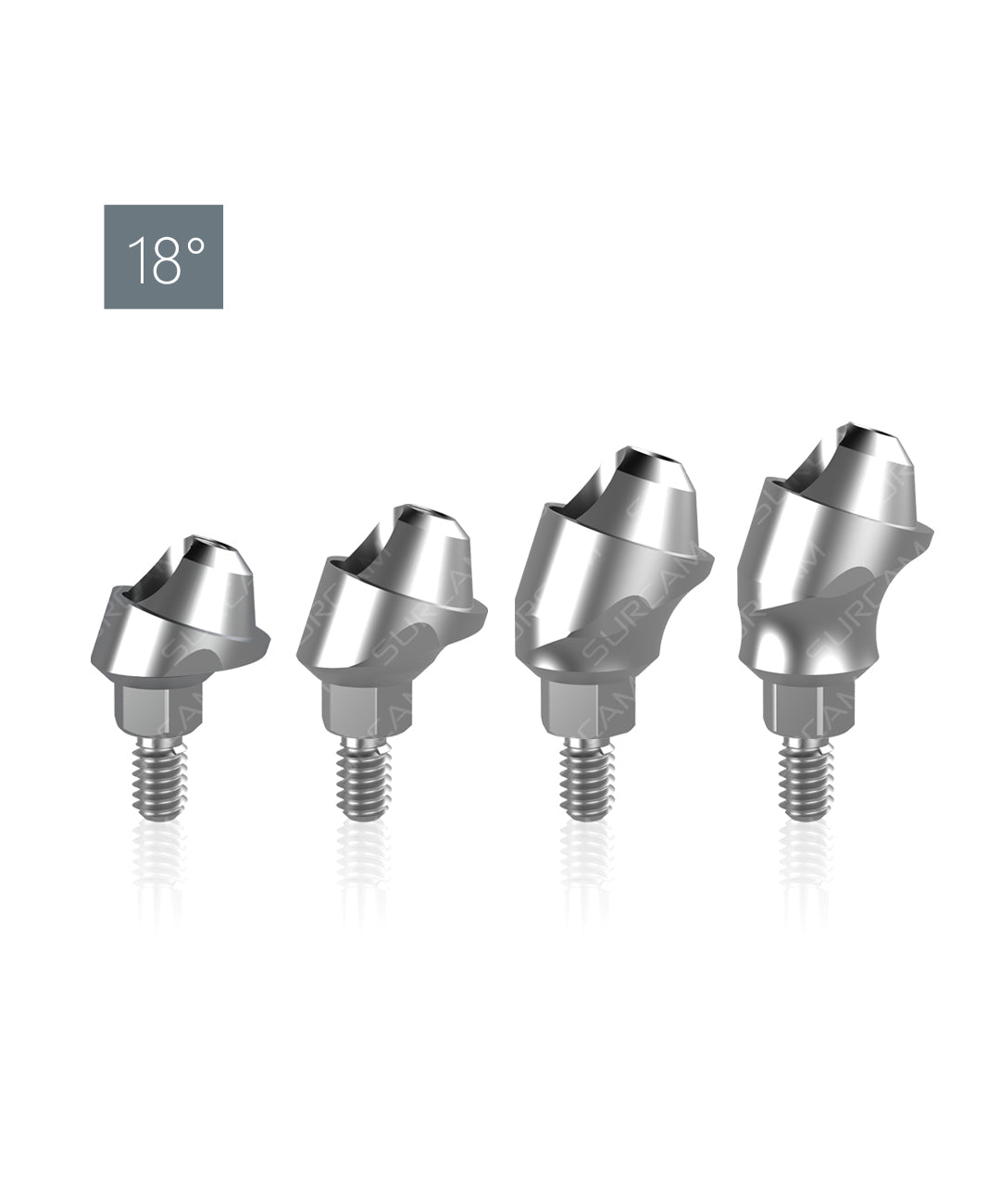

  • 24× Angular MU abutments (cone-type Internal Hex)

  • 18× Straight MU abutments

• 42× Accessories (modifiable; see Ordering Notes):

  • 10× MU Healing Caps

  • 10× MU Scan Bodies

  • 10× MU Ti-Bases

  • 12× MU Digital Analogs

The tray’s MU abutment composition is fixed. Only the 42 accessories can be customized.

Specifications

• Interface: Multi-Unit Internal Hex (cone)

• Prosthetic Thread: M1.4

• Use Cases: Screw-retained single/segmental/full-arch frameworks; immediate or early loading per clinical criteria

• Workflow: Conventional impressions and digital (IOS + CAD/CAM) protocols

• Torque: Follow your MU system IFU; do not exceed manufacturer values

Compatibility

Designed for cone-type Multi-Unit Internal Hex ecosystems using M1.4 prosthetic screws. Always verify cone geometry/hex dimensions and torque values with your implant/MU system IFU.

Ordering Notes & Customization

It is not possible to modify the composition of the Multi-Unit tray itself.
You can request changes to the 42 accessories (healing caps, scan bodies, Ti-bases, digital analogs). Specify your preferences in the Order Notes at checkout or contact us for assistance.

FAQs

Can I change the number of angled or straight MU abutments?

No. The tray’s MU abutment mix (24 angled, 18 straight) is fixed. Only the 42 accessories can be customized.

Which thread and interface does this kit use?

M1.4 prosthetic thread with cone-type Multi-Unit Internal Hex interface. Verify geometry and torque per your system IFU.

Is the kit suitable for digital workflows?

Yes. It includes scan bodies and digital analogs to support intraoral scanning and CAD/CAM fabrication.

Can I use this tray for immediate loading?

Case-dependent. Proceed only with adequate primary stability (torque/ISQ), controlled occlusion, and appropriate splinting for full-arch cases.

Are MU healing caps included?

Yes. 10 MU healing caps are included to help maintain soft-tissue contours during provisional phases.

How do I request accessory changes?

Add your requested quantities/changes in the Order Notes or contact us. We’ll confirm availability before fulfillment.
