Angular Multi-Unit Abutment – Wide Platform Ø4.5
- Angulation
- 18° · 30°
- Gingival Height
- 3 to 6 mm
- Connection
- Internal Hexagon (WP)
- SKUs
- 8
Compatible systems: Alpha-Bio®, BioHorizons®, Implant Direct®, MIS®, Zimmer Biomet®
Select °deg × gingival height
Tap a cell to add · tap again for +1Internal Hex 2.43 pathway
From placement to restoration, one connection
Every part below shares the Internal Hex 2.43 connection.
-
1Place
Implants 10 parts · from $70(opens in a new tab)
-
2Heal
Healing caps 5 parts · from $14(opens in a new tab)
-
3Record
Transfers & analogs 26 parts · from $8Open and closed tray(opens in a new tab)
-
4Restore
Cemented abutments 21 parts · from $15Straight and angled(opens in a new tab)
-
5Digital
Ti-Base CAD/CAM 8 parts · from $20Scan bodies and Ti-bases(opens in a new tab)
-
6Full archAngular Multi-Unit Abutment Internal Hex Multi-Unit Abutments and Components You are here
Overview
The Angular Multi-Unit Abutment – Wide Platform Ø4.5 is designed to correct implant angulation and provide an optimal prosthetic path for screw-retained implant restorations. Compatible with internal hex implant systems, this abutment allows clinicians to compensate for tilted implant placement while maintaining proper prosthetic alignment.
Available in 18° and 30° angulations, the abutment enables restoration of implants placed at different trajectories, particularly in full-arch and complex implant cases. By correcting implant angulation, it helps achieve a parallel restorative platform and improves prosthetic accessibility.
Manufactured from Titanium Grade 5 (Ti-6Al-4V), the abutment provides excellent strength, corrosion resistance, and long-term mechanical reliability. The Wide Platform Ø4.5 design ensures stable implant engagement and predictable prosthetic performance.
With gingival heights of 3, 4, 5, and 6 mm available for both angulation options, clinicians can select the appropriate height to manage soft-tissue depth and achieve an optimal emergence profile.
-
Angular multi-unit abutment for tilted implants
-
Platform: Wide Platform Ø4.5
-
Connection: Internal Hex
-

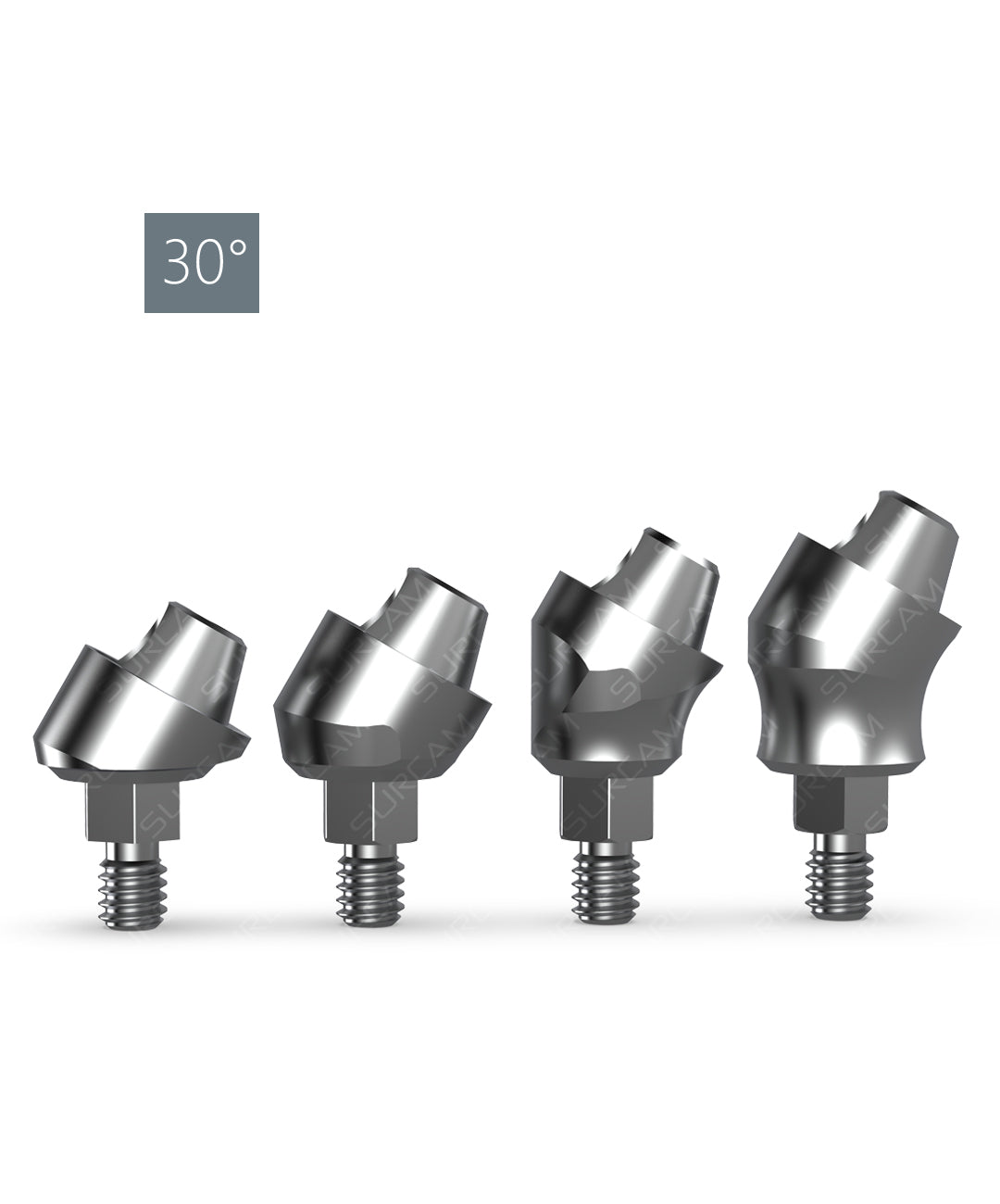

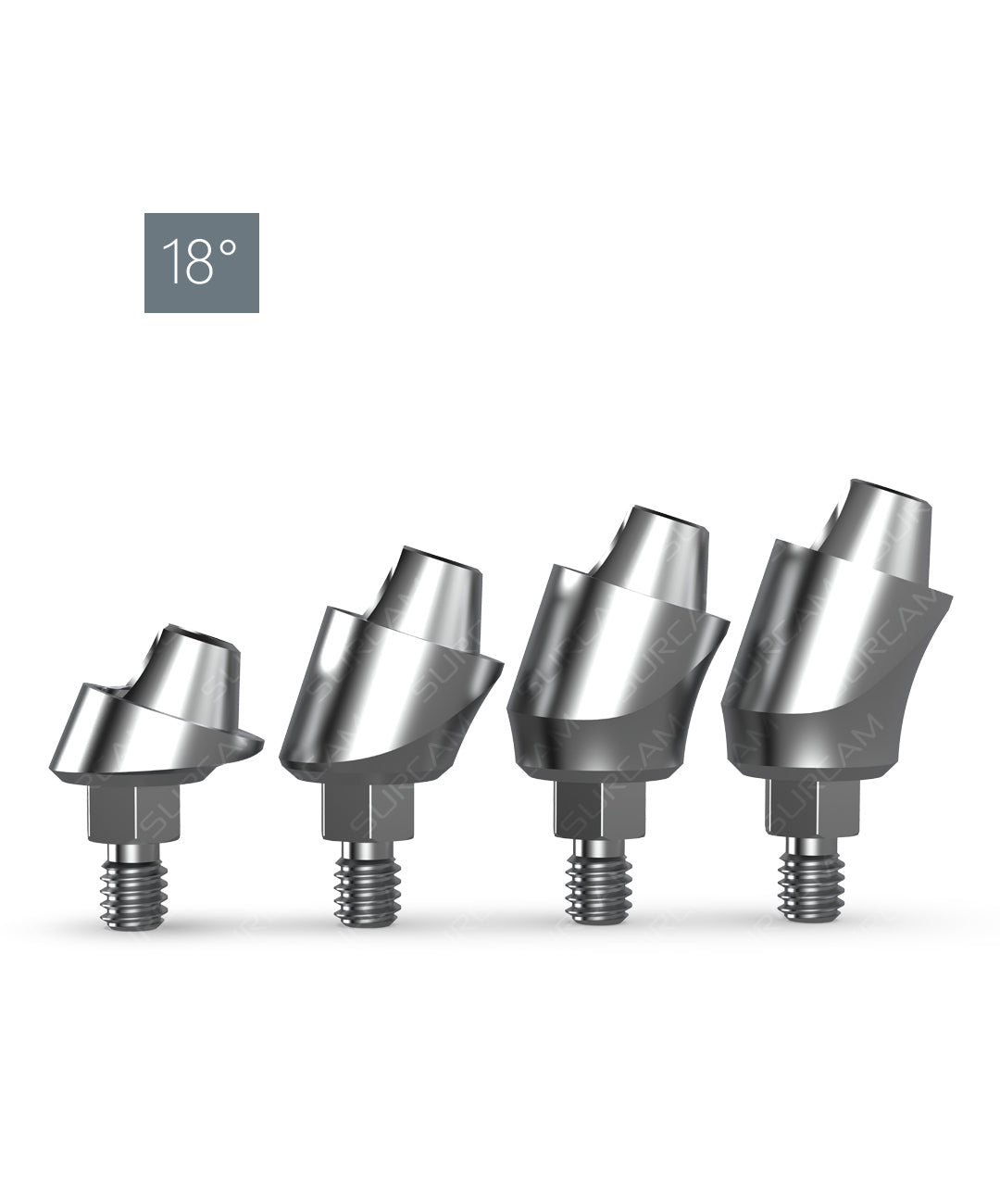

Angles available: 18° and 30°
-
Gingival heights: 3 / 4 / 5 / 6 mm
-
Corrects implant angulation for screw-retained restorations
-
Supports full-arch and multi-implant restorations
-
Manufactured from Titanium Grade 5 (Ti-6Al-4V)
-
Precision-machined for stable implant engagement
Technical sheets
Catalog pages, size charts and drilling protocols
Is this abutment compatible with my system?
It is designed for Internal Hex 2.42 mm platforms used by Alpha-Bio, Zimmer, MIS, Adin, Implant Direct, and AB Dental. Always verify platform code and indexing.
Which angle should I choose—18°, 30°, or 45°?
Select the angle based on implant divergence and the desired path of insertion. Use the least correction that achieves parallelism and restorative clearance.
How do I pick the gingival height (GH)?
Match GH to measured sulcus depth and planned margin. Typical guide: 1–2 mm (thin tissue), 3–4 mm (average), 5–6 mm (thick). Validate cleansability in the provisional.
What restorations is it intended for?
Screw-retained single units, bridges, and full-arch frameworks. Follow your Multi-Unit system protocol for framework passivity and torque.
What torque and driver should I use?
Use the MU driver and torque value specified in your implant system Instructions for Use (IFU). Do not exceed manufacturer limits.
