Multi Unit TraysInternal Hexagon

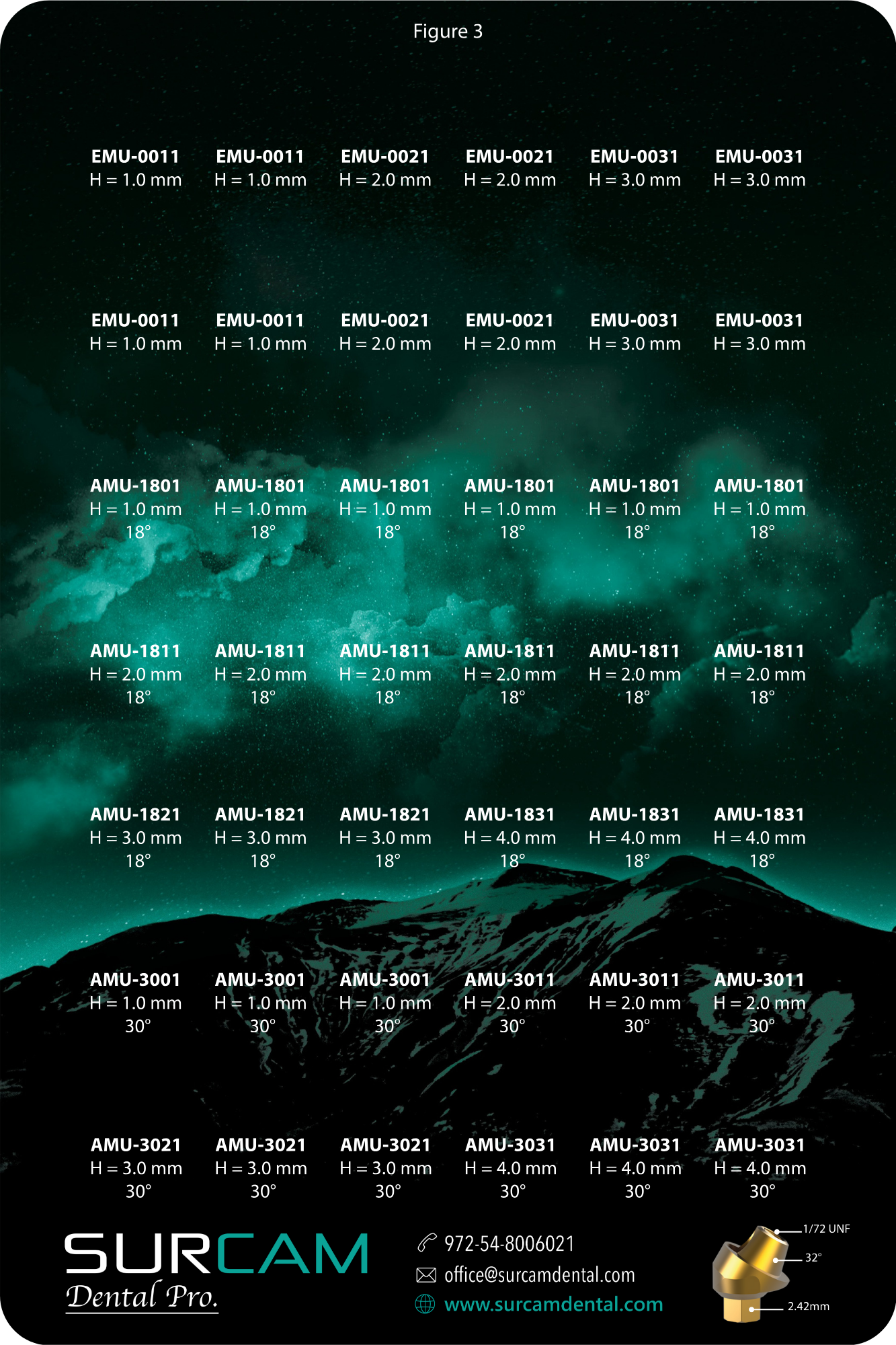

Tray Multi Unit - Figure 3
- Connection
- Internal Hexagon
- SKU
- TRAY-0042-Figure3
Compatible systems: Alpha-Bio®, BioHorizons®, Implant Direct®, MIS®, Zimmer Biomet®
Quantity
Overview
The Surcam® Tray Multi-Unit – Figure 3 is a comprehensive Internal Hex (cone) Multi-Unit kit built on the UNF 1-72 prosthetic thread standard.

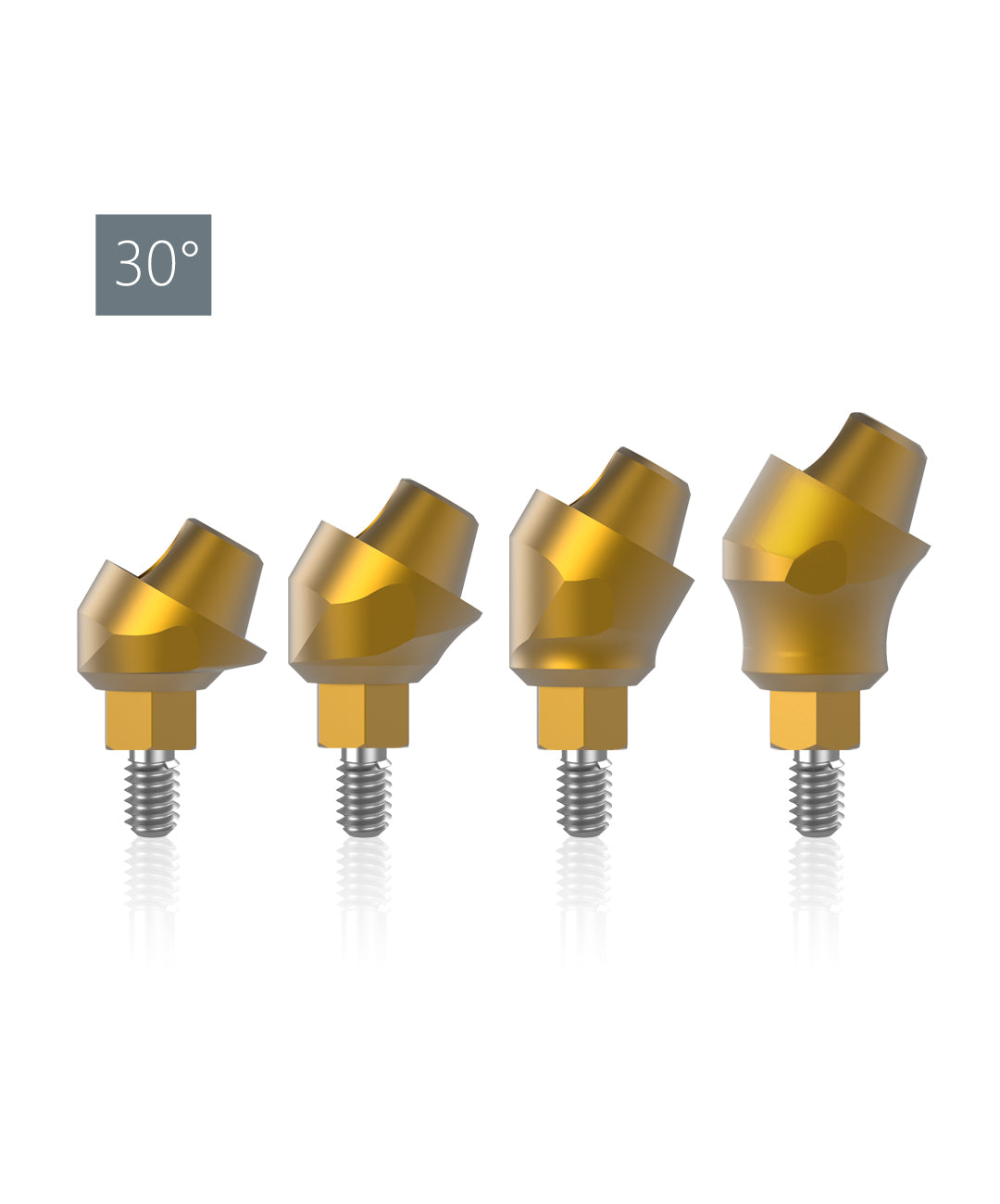

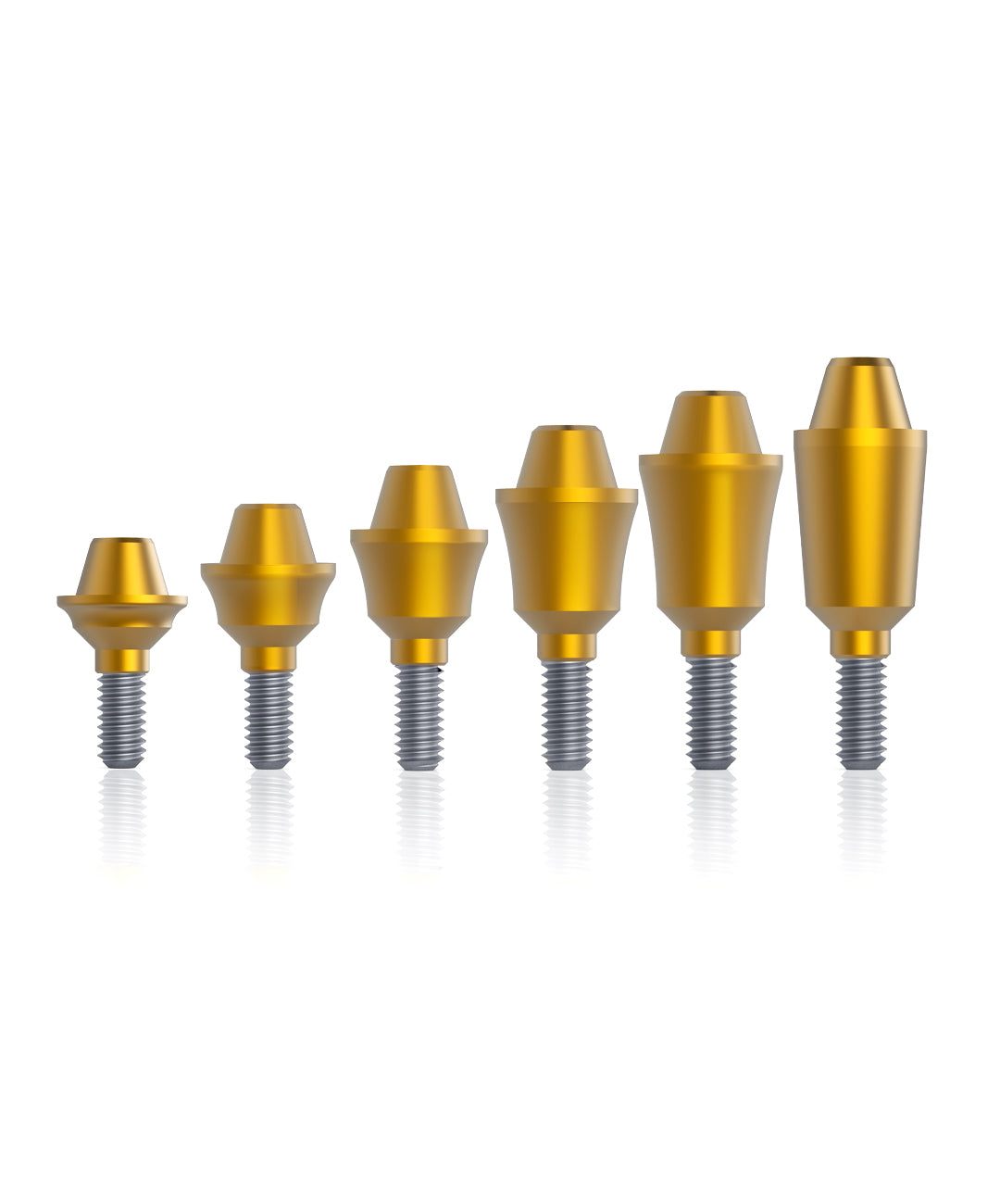

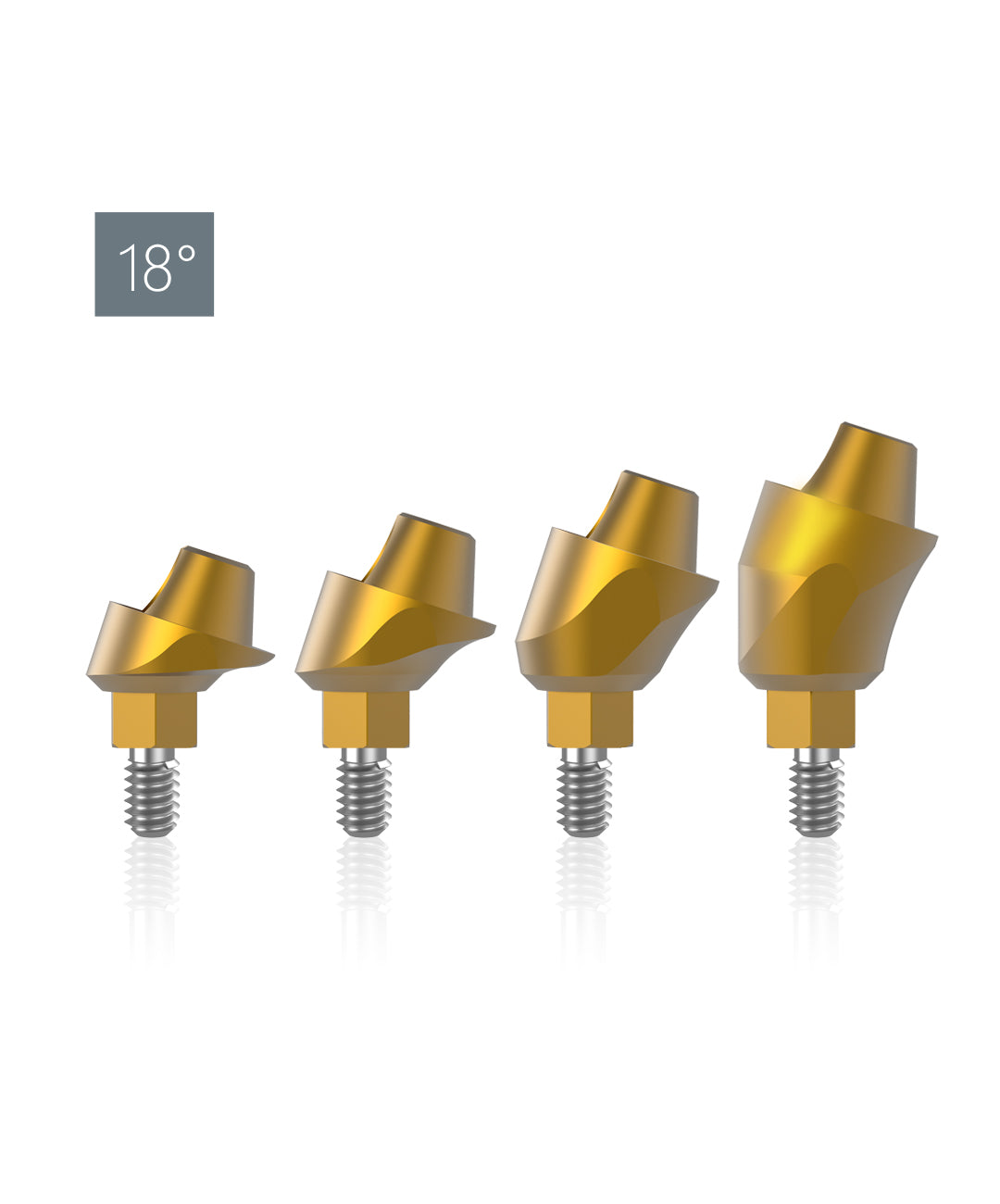

It includes 24 angled and 18 straight MU abutments, along with 42 digital and restorative accessories, engineered for predictable full-arch and segmental screw-retained frameworks.
Digital accessories - scan bodies, Ti-bases, and analogs - enable seamless IOS → CAD/CAM integration, while MU healing caps support soft-tissue conditioning and a cleansable emergence profile.
The kit’s standardized UNF 1-72 threading ensures cross-compatibility across restorative components, simplifying prosthetic inventory and chairside efficiency.
The abutment mix is fixed, while accessory quantities and configurations can be customized to meet specific clinical or laboratory needs.
FAQ
Can I change the number of angled or straight MU abutments?
No. The tray composition (24 angled + 18 straight) is fixed. Only the 42 accessory items can be customized.
Which thread and interface does this kit use?
UNF 1-72 prosthetic thread with cone-type Internal Hex Multi-Unit interface. Verify geometry and torque values per your system’s IFU.
Is this kit suitable for digital workflows?
Yes. It includes scan bodies and digital analogs that integrate with IOS and CAD/CAM fabrication workflows.
Can it be used for immediate loading?
Yes, when primary stability, torque, and occlusal control are achieved per clinical criteria.
Are MU healing caps included?

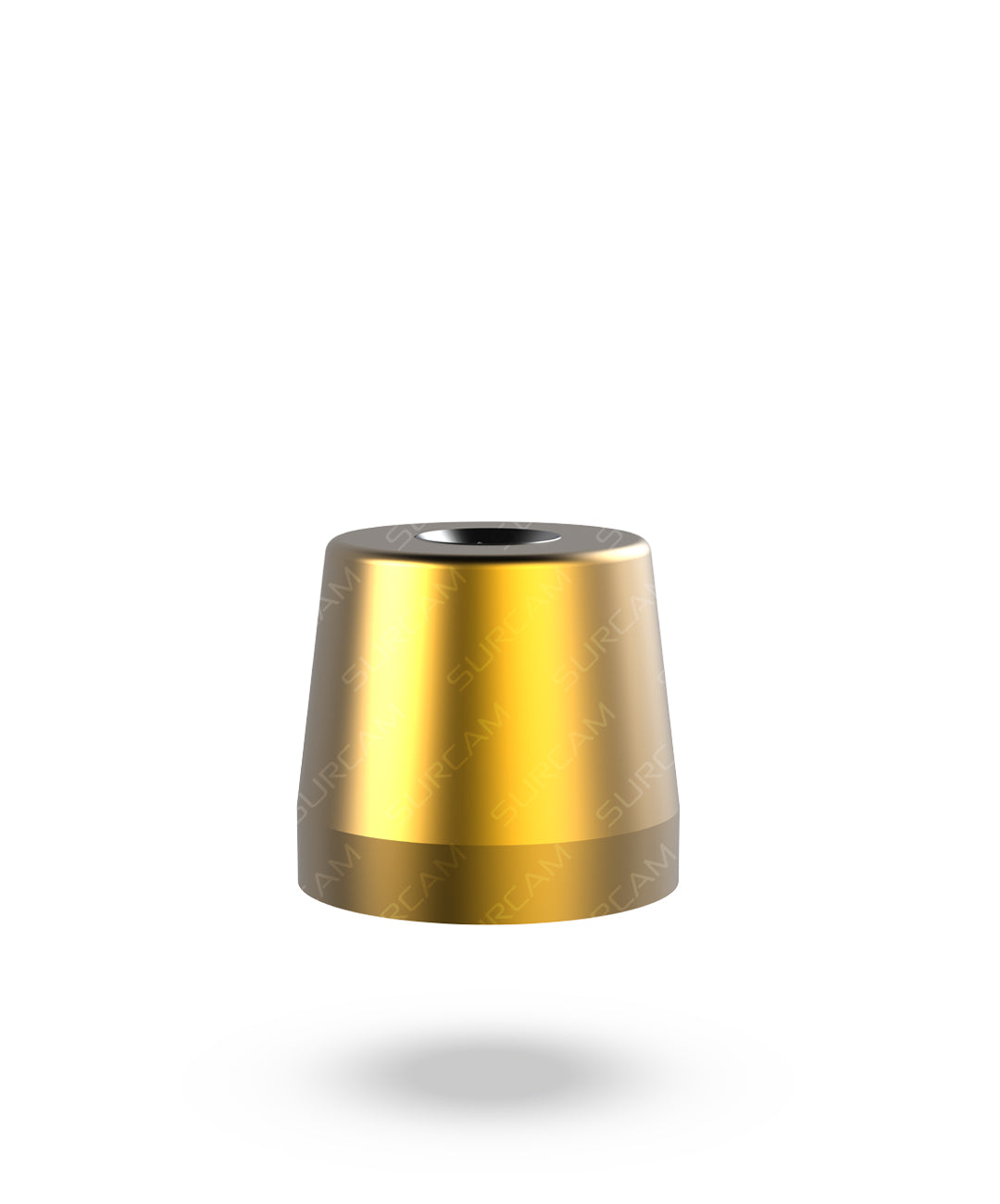

Yes. The accessory set includes 10 MU healing caps for soft-tissue preservation and emergence profile maintenance.
How do I request accessory changes?
Enter your preferred accessory configuration in the Order Notes at checkout or contact Surcam Dental to confirm before fulfillment.
Specifications
| System | Surcam® Tray Multi-Unit – Figure 3 |
|---|---|
| Interface | Multi-Unit Internal Hex (cone-type) |
| Prosthetic Thread | UNF 1-72 |
| Composition | 24 Angular MU abutments + 18 Straight MU abutments + 42 Accessories |

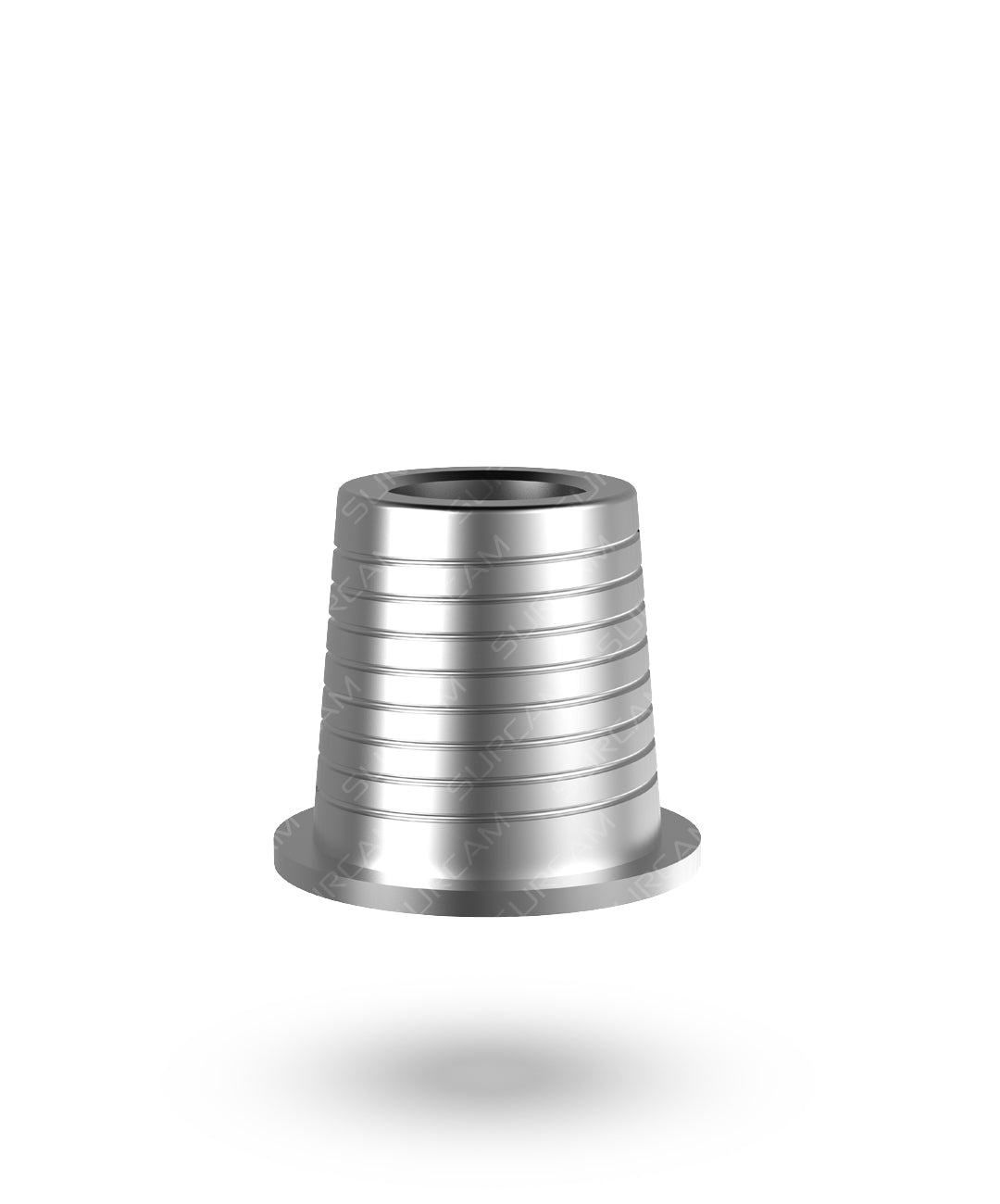

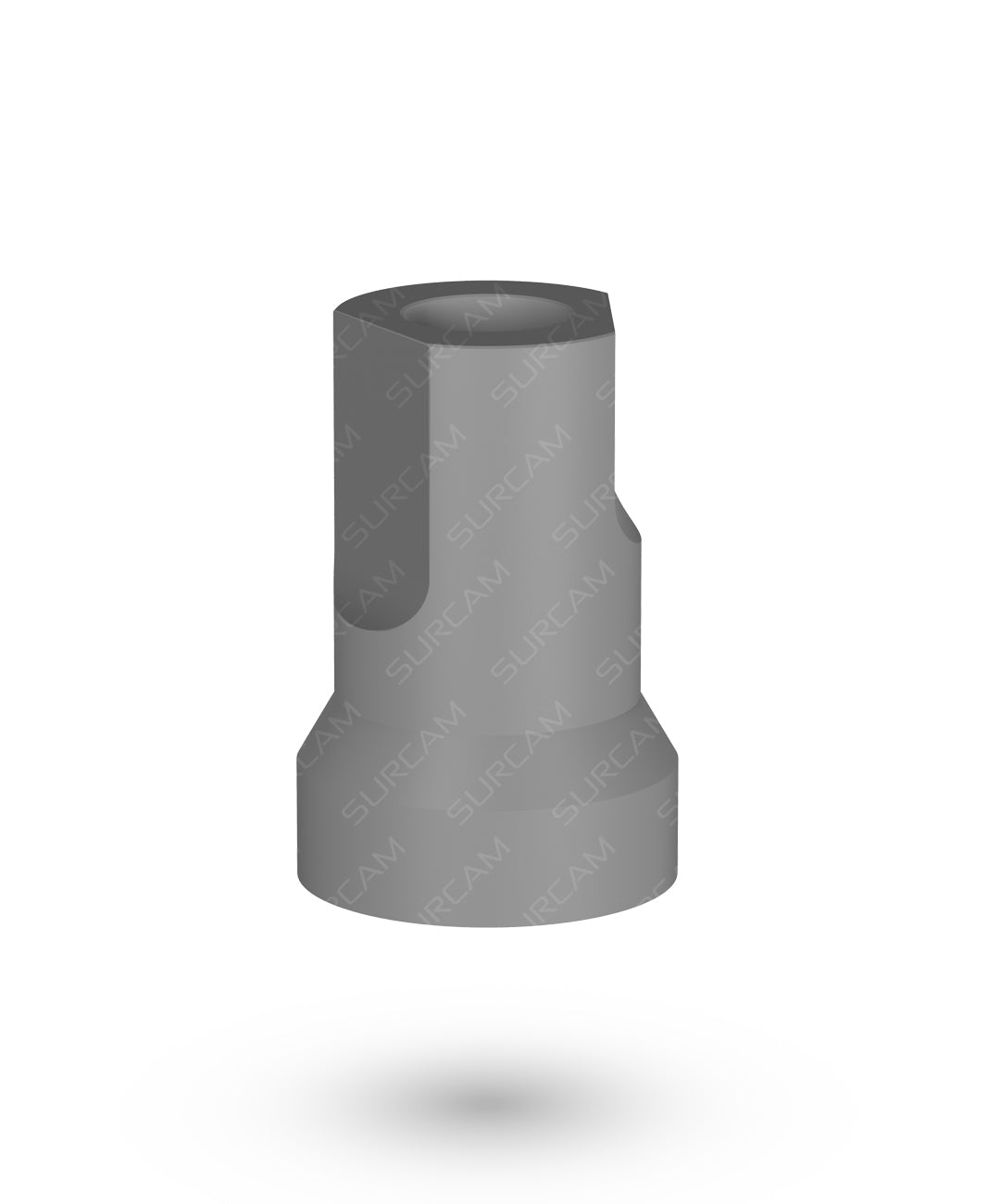

| Accessories Include | 10 MU Healing Caps, 10 MU Scan Bodies, 10 MU Ti-Bases, 12 MU Digital Analogs |
| Use Cases | Screw-retained single, segmental, and full-arch restorations; immediate or early loading where clinically indicated |
| Workflow | Compatible with conventional impressions and digital IOS → CAD/CAM protocols |
| Torque | Follow MU system IFU; do not exceed recommended values |
| Customization | MU abutments fixed; accessories modifiable upon request |
| Compatibility | Cone-type Internal Hex Multi-Unit systems using UNF 1-72 prosthetic screws |
| Compatible systems | Alpha-Bio®, BioHorizons®, Implant Direct®, MIS®, Zimmer Biomet® |
Verify platform and indexing against your system before use. Follow the IFU for torque and loading.
Technical sheets
Catalog pages, size charts and drilling protocols
Can I change the number of angled or straight MU abutments?
No. The tray composition (24 angled and 18 straight) is fixed. Only the 42 accessory items can be customized.
Which thread and interface does this kit use?
The Figure 3 kit uses the UNF 1-72 prosthetic thread with a cone-type Internal Hex Multi-Unit interface. Verify geometry and torque per your system IFU.
Is this kit suitable for digital workflows?
Yes. The kit includes scan bodies, Ti-bases, and digital analogs to support intraoral scanning and CAD/CAM fabrication.
Can it be used for immediate loading?
Yes, provided sufficient primary stability, torque, and occlusal control are achieved according to clinical judgment.
Are MU healing caps included?
Yes. Ten Multi-Unit healing caps are included to preserve soft-tissue contours during the healing phase.
How do I request accessory changes?
Add your preferred accessory configuration to the Order Notes or contact Surcam Dental for confirmation before fulfillment.
