Multi Unit TraysConical Connection

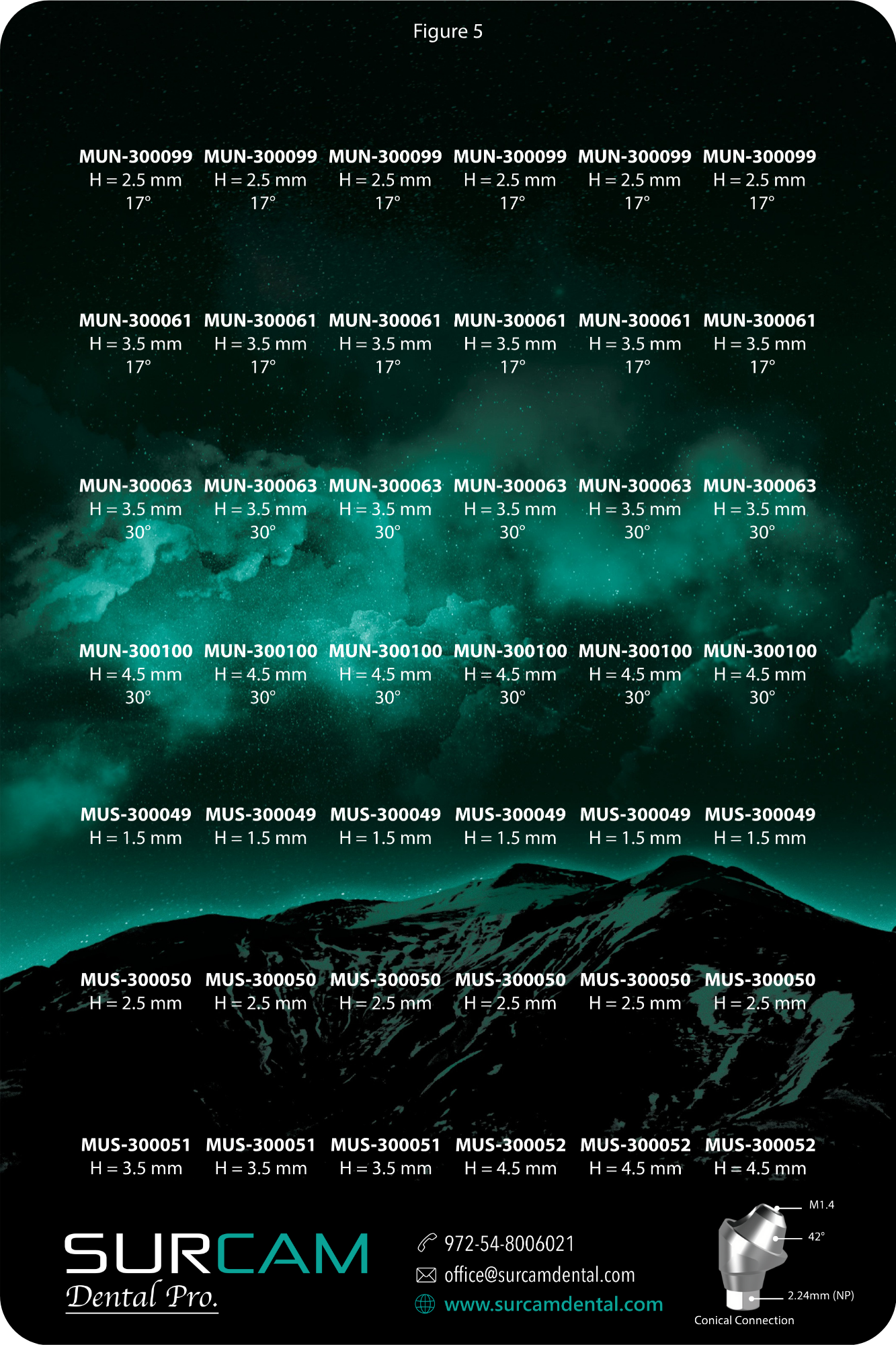

Tray Multi Unit - Figure 5
- Connection
- Conical Connection
- SKU
- TRAY-0042-Figure5
Compatible systems: Nobel Biocare®
Quantity
Overview
The Surcam® Tray Multi-Unit – Figure 5 is a clinic-ready NP platform Multi-Unit kit with a cone-type conical connection using M1.4 prosthetic screws.

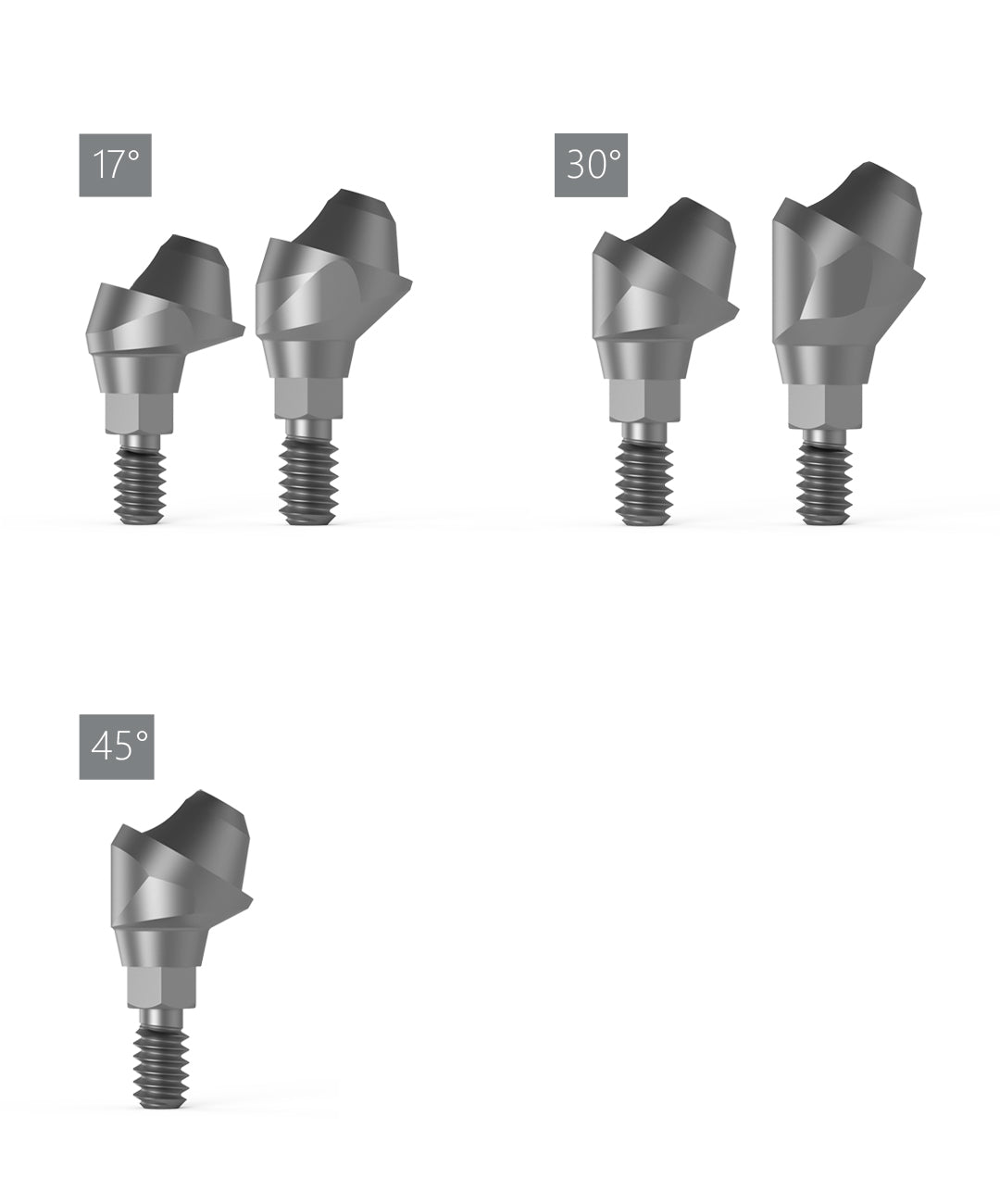

It includes 24 angled and 18 straight MU abutments plus 42 digital/restorative accessories, designed for predictable full-arch and segmental restorations.
The standardized M1.4 thread ensures prosthetic compatibility, while the included scan bodies, Ti-bases, and digital analogs integrate seamlessly into IOS → CAD/CAM workflows.
MU healing caps maintain a cleansable emergence profile and aid in soft-tissue management throughout the healing and provisional phases.
The tray’s abutment mix is fixed; the 42 accessory items may be customized at checkout to match your preferred clinical setup.
FAQ
Can I change the number of angled or straight MU abutments?
No. The tray composition (24 angled + 18 straight) is fixed. Only the 42 accessories can be customized.
Which thread and interface does this kit use?
M1.4 prosthetic thread with NP platform, cone-type conical connection interface.
Is this kit suitable for digital workflows?
Yes. It includes scan bodies, Ti-bases, and digital analogs to support IOS and CAD/CAM fabrication.
Can I use this tray for immediate loading?
Yes, provided sufficient primary stability (torque/ISQ), occlusal control, and splinting are achieved.
Are MU healing caps included?
Yes. Ten MU healing caps are included for tissue management during provisionalization.
How can I request accessory changes?
List your preferred accessory quantities in the Order Notes at checkout or contact Surcam Dental to confirm availability before fulfillment.
Specifications
| System | Surcam® Tray Multi-Unit – Figure 5 |
|---|---|
| Platform / Interface | NP platform, cone-type (conical connection) |
| Prosthetic Thread | M1.4 |
| Composition | 24 Angular MU abutments + 18 Straight MU abutments + 42 Accessories |
| Accessories Include | 10 MU Healing Caps, 10 MU Scan Bodies, 10 MU Ti-Bases, 12 MU Digital Analogs |
| Use Cases | Screw-retained single, segmental, and full-arch restorations; immediate or early loading when clinically appropriate |
| Workflow | Compatible with conventional impressions and digital IOS → CAD/CAM fabrication |
| Torque | Follow MU system IFU; do not exceed manufacturer torque values |
| Customization | MU abutments fixed; accessories modifiable upon request |
| Compatibility | NP platform, cone-type Multi-Unit systems using M1.4 screws |
| Compatible systems | Nobel Biocare® |
Verify platform and indexing against your system before use. Follow the IFU for torque and loading.
Technical sheets
Catalog pages, size charts and drilling protocols
Can I change the number of angled or straight MU abutments?
No. The tray composition (24 angled and 18 straight) is fixed. Only the 42 accessories can be customized.
Which thread and interface does this kit use?
The kit uses an M1.4 prosthetic thread with an NP platform cone-type conical connection Multi-Unit interface.
Is this kit suitable for digital workflows?
Yes. It includes scan bodies, Ti-bases, and digital analogs for IOS and CAD/CAM workflows.
Can I use this tray for immediate loading?
Yes, when adequate primary stability, torque, and occlusal control are achieved according to clinical judgment.
Are MU healing caps included?
Yes. Ten Multi-Unit healing caps are included to maintain tissue contours during the healing and provisional phases.
How can I request accessory changes?
Add customization requests to the Order Notes at checkout or contact Surcam Dental to confirm before fulfillment.
