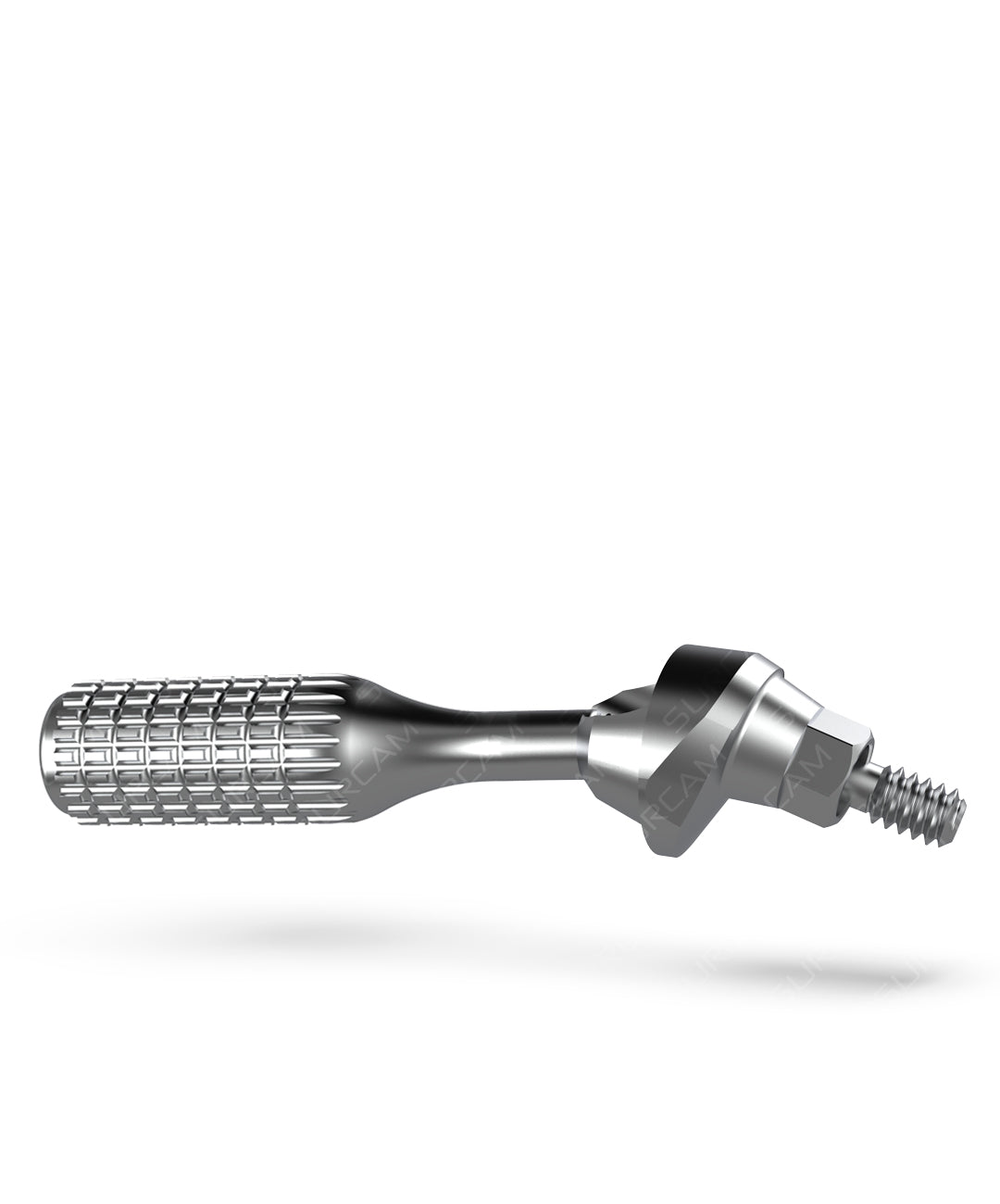

NP Platform Angular Multi-Unit

Angled NP 3.5 Multi-Unit Abutment for Screw-Retained Full-Arch & Divergence Correction

The Surcam NP Platform Angular Multi-Unit is a low-profile, conical-connection NP 3.5 abutment system for screw-retained prostheses—ideal when implants are tilted or divergent. Precision-machined from Titanium Grade 5 (Ti-6Al-4V), it aligns the restorative path of insertion, improves cleansability, and supports predictable full-arch and segmental restorations. Available in straight (0°), 17°, 30°, and 45° with a range of gingival heights for soft-tissue adaptation.
Includes: 1× Angular Conical Platform Multi-Unit, 1× Prosthetic Screw, 1× Stick Holder.
Compatibility: Conical Connection NP 3.5 platform; Nobel Active® compatible (verify interface and platform before use).*

Benefits

• Divergence Correction — 0°/17°/30°/45° options align the prosthetic pathway for passive, screw-retained restorations.

• Low-Profile Emergence — Enhances hygiene access and esthetics under full-arch frameworks.

• Screw-Retained Retrievability — Easy access for maintenance, hygiene, and component replacement.

• Soft-Tissue Adaptation — Multiple gingival heights to match biotype and mucosal thickness.

• Chairside Control — Stick holder improves handling and visibility in posterior/limited access sites.

• Material Confidence — Ti-6Al-4V Grade 5 strength and biocompatibility for long-term service.

• Full-Arch Ready — Supports All-on-X concepts (case-dependent) with cross-arch splinting.

Product Details

• Connection / Platform: Conical connection NP 3.5

• Angulation Options: 0°, 17°, 30°, 45°

• Gingival Heights: Multiple options (select per tissue thickness/esthetics)

• Material: Titanium Grade 5 (Ti-6Al-4V)

• Pack Contents: 1× Angular Multi-Unit, 1× Prosthetic Screw, 1× Stick Holder

• Brand Compatibility: Nobel Active® NP 3.5 (for comparison; confirm fit)

Specifications

• Indications: Screw-retained single, segmental, and full-arch prostheses on NP 3.5 conical implants

• Workflow: Supports immediate provisionalization when primary stability and occlusion permit

• Torque: Seat/torque per implant system IFU; do not exceed manufacturer values

• Prosthetics: Use compatible multi-unit cylinders, temporary cylinders, and prosthetic screws per system library

• Hygiene: Low-profile design facilitates plaque control around the collar

Why Choose Surcam Multi-Unit?

• Predictable path alignment on tilted/divergent implants

• Retrievable screw-retained prosthetics for long-term serviceability

• Robust titanium construction with precise machining tolerances

• Full ecosystem support with complementary components and sizes

Surcam Multi-Unit FAQs

Which platforms is this Multi-Unit compatible with?

Conical Connection NP 3.5 platforms; Nobel Active® NP 3.5 compatible. Always verify platform dimensions and the conical interface before use.

Which angulations are available and how do I choose?

0°, 17°, 30°, 45°. Select the angle that corrects implant divergence and achieves a common path of insertion for passive, screw-retained seating.

How do I select the gingival height?

Match the gingival height to soft-tissue thickness and intended emergence profile; confirm clinically (probing) and radiographically.

Can this be used for immediate loading?

Often case-dependent. Immediate provisionalization requires adequate insertion torque, cross-arch splinting, and controlled occlusion.

What torque should I use for seating and the prosthetic screw?

Follow the implant system’s IFU for NP 3.5 multi-unit torque values. Do not exceed manufacturer specifications.

What is included in the package?

1× Angular Multi-Unit, 1× Prosthetic Screw, and 1× Stick Holder for improved intraoral handling.

* Nobel Active® is a registered trademark of Nobel Biocare. References are for compatibility/comparison only.
