Angular Multi-Unit Abutment Prime Coating
SKU : AMU-1801
Regular price $55.00
| Gingival Height | SKU / Stock | Price | Qty |
|---|---|---|---|
|
18° Deg ·
2.0 mm |
SKU: AMU-1801 | $55.00 | |
|
18° Deg ·
3.0 mm |
SKU: AMU-1811 | $55.00 | |
|
18° Deg ·
4.0 mm |
SKU: AMU-1821 | $55.00 | |
|
18° Deg ·
5.0 mm |
SKU: AMU-1831 | $55.00 | |
|
18° Deg ·
6.0 mm |
N/A | — |
|
|
18° Deg ·
4.5 mm |
N/A | — |
| Gingival Height | SKU / Stock | Price | Qty |
|---|---|---|---|
|
30° Deg ·
2.0 mm |
N/A | — |
|
|
30° Deg ·
3.0 mm |
SKU: AMU-3001 | $55.00 | |
|
30° Deg ·
4.0 mm |
SKU: AMU-3011 | $55.00 | |
|
30° Deg ·
5.0 mm |
SKU: AMU-3021 | $55.00 | |
|
30° Deg ·
6.0 mm |
SKU: AMU-3031 | $55.00 | |
|
30° Deg ·
4.5 mm |
N/A | — |
| Gingival Height | SKU / Stock | Price | Qty |
|---|---|---|---|
|
45° Deg ·
2.0 mm |
N/A | — |
|
|
45° Deg ·
3.0 mm |
N/A | — |
|
|
45° Deg ·
4.0 mm |
N/A | — |
|
|
45° Deg ·
5.0 mm |
N/A | — |
|
|
45° Deg ·
6.0 mm |
SKU: AMU-100064 | $55.00 | |
|
45° Deg ·
4.5 mm |
SKU: AMU-100005 | $55.00 |
Download IFU (PDF)
Ask about Angular Multi-Unit Abutment Prime Coating
Product Details

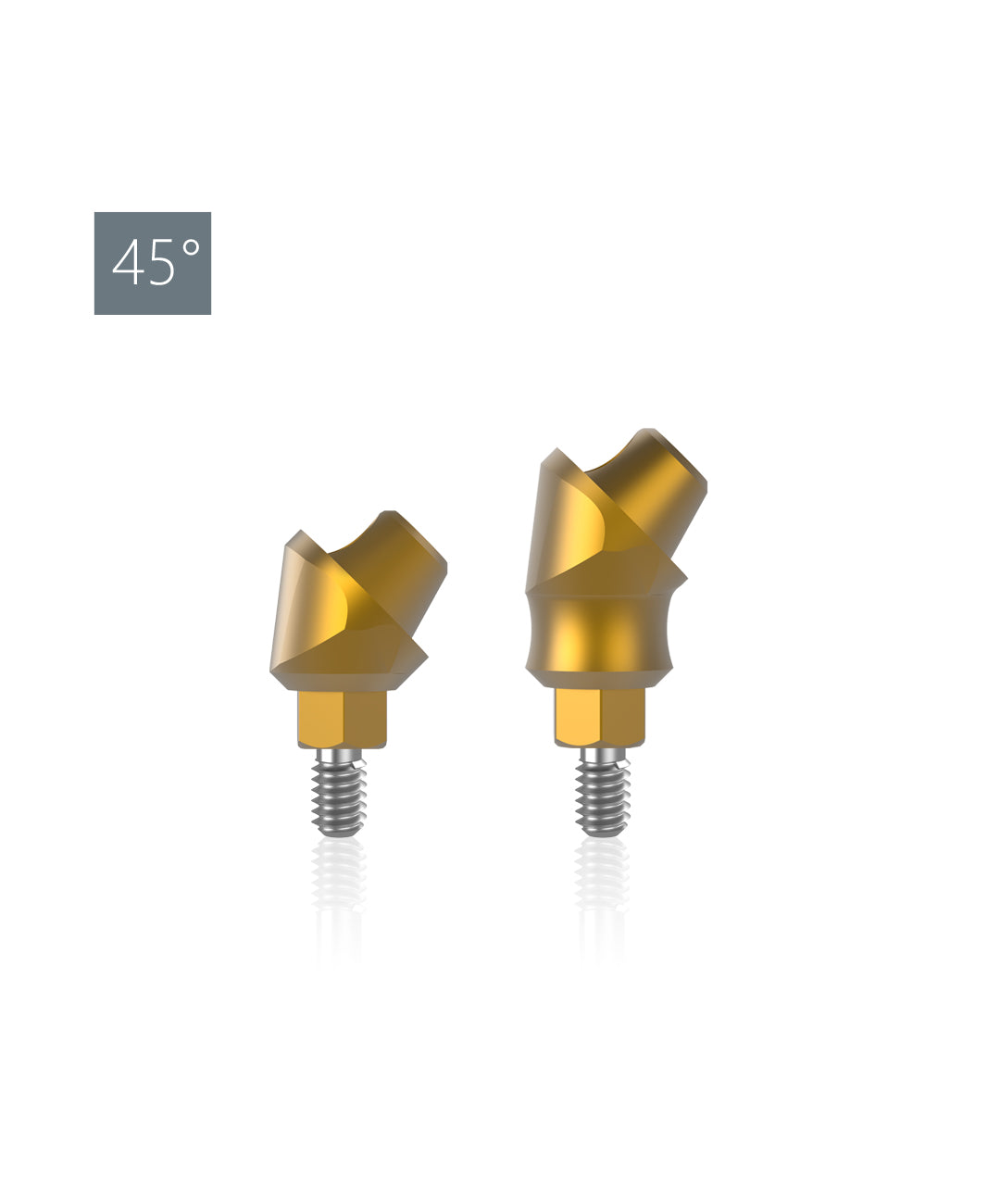

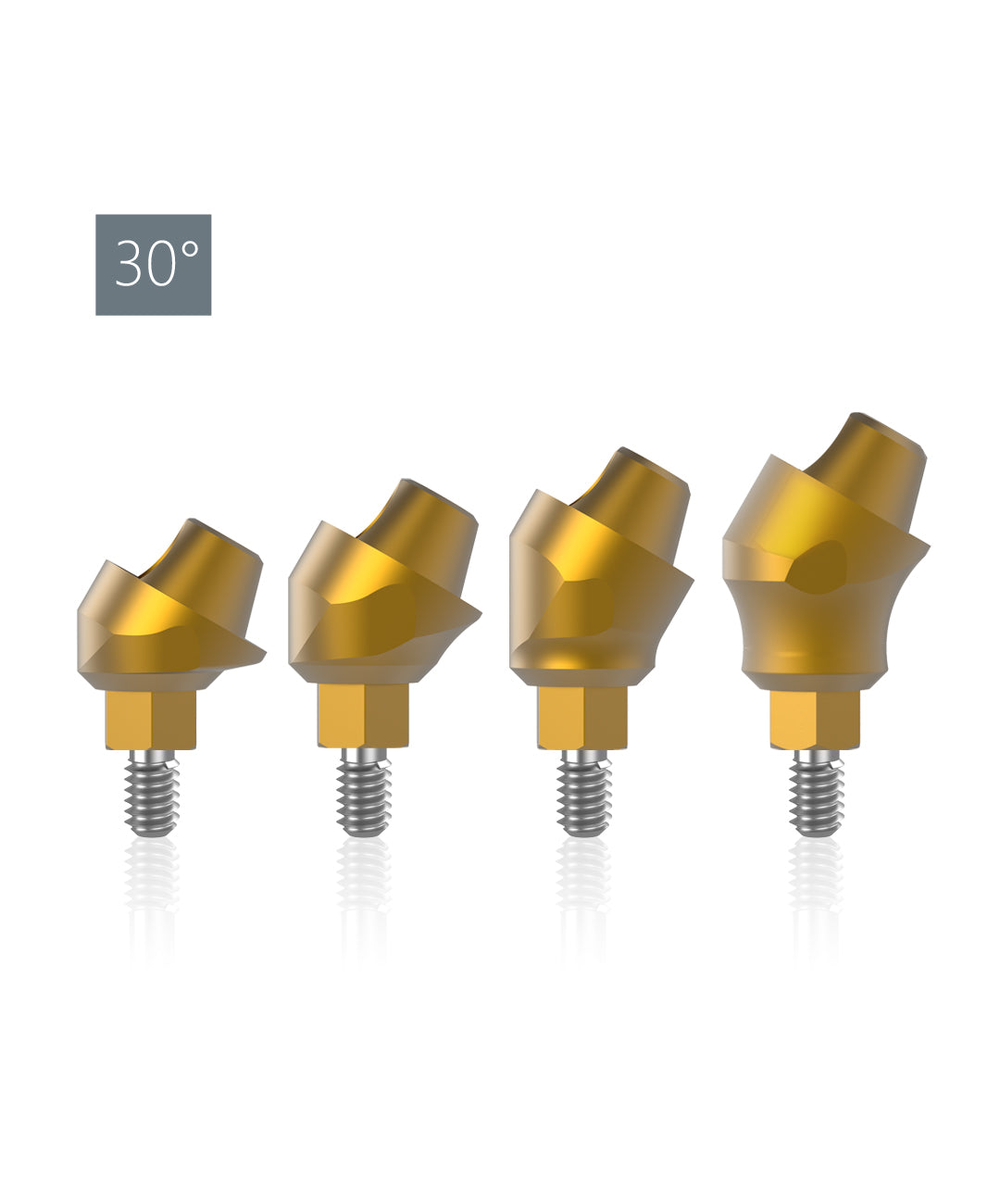

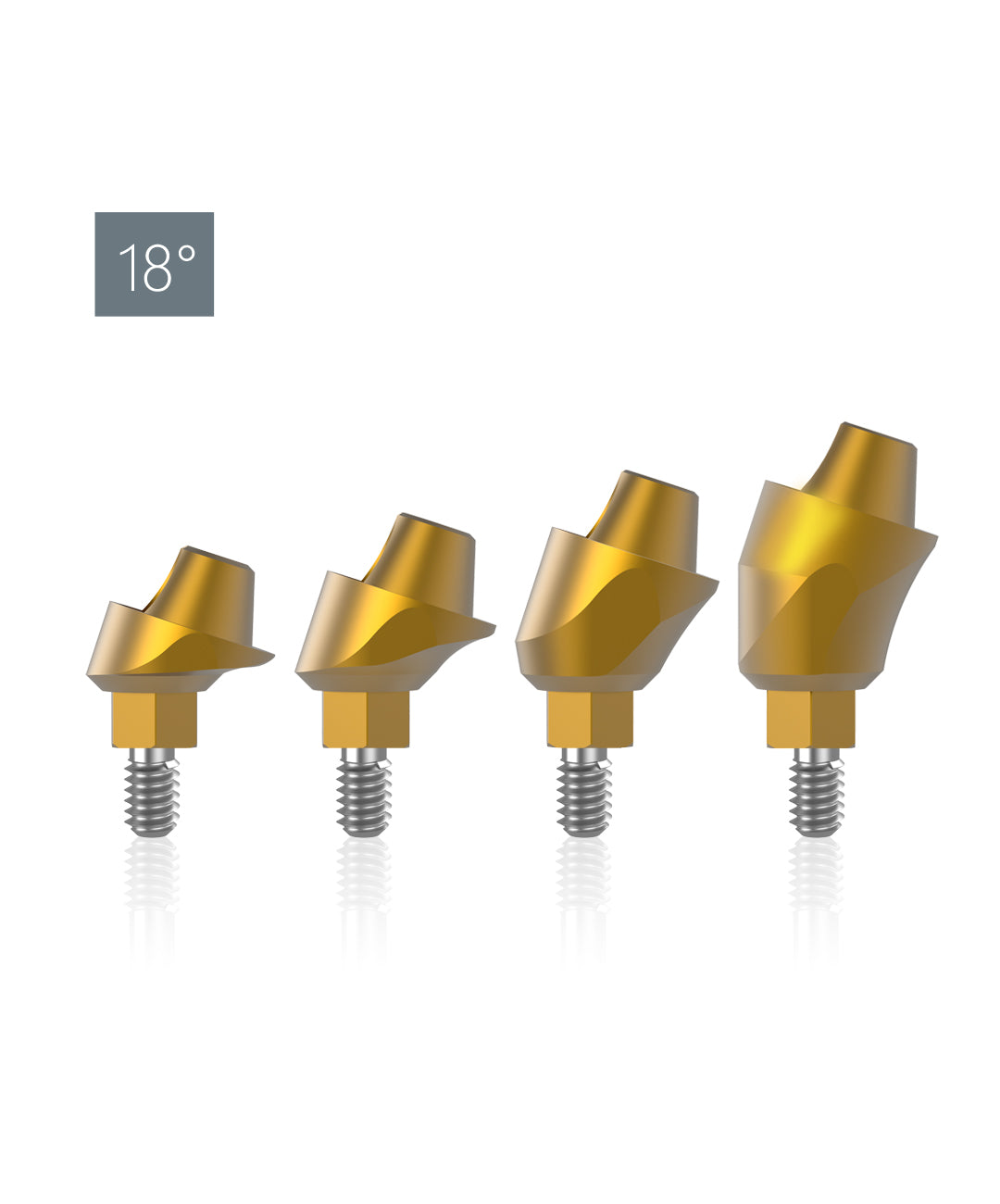

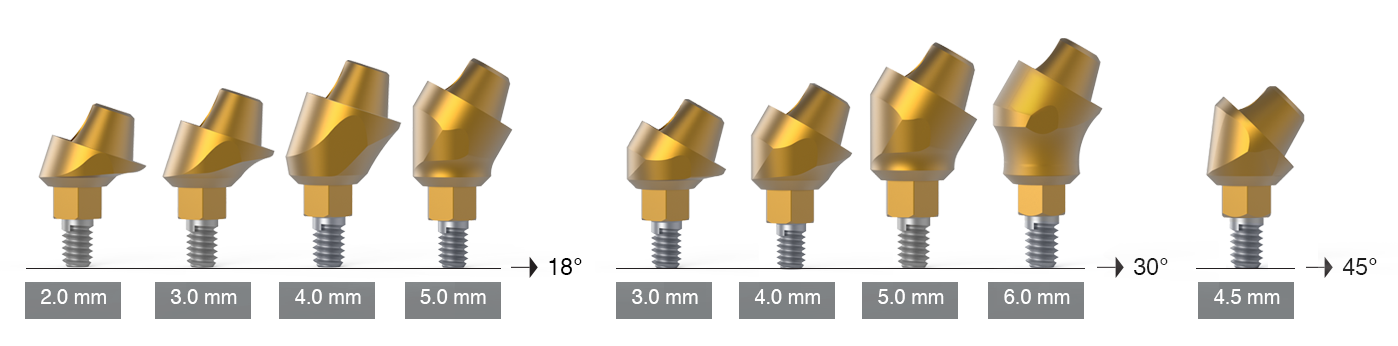

The Surcam Angular Multi-Unit Abutment with Prime Coating solves alignment challenges in tilted-implant and full-arch cases. The low-profile, Prime-coated collar promotes cleansable margins and healthy tissue response, while 18° / 30° / 45° angle options let you correct divergence and optimize prosthetic path. Multiple gingival heights support predictable emergence across variable tissue thickness. Precision-machined Ti-6Al-4V (Grade 5) ensures durable, accurate seating on Internal Hex 2.42 mm platforms used by leading systems.
Use cases: screw-retained single units, segments, and full-arch frameworks; immediate/early loading when stability and occlusion meet IFU criteria.
FAQs
Is this abutment compatible with my system?
It’s designed for Internal Hex 2.42 mm platforms used by Alpha-Bio, Zimmer, MIS, Adin, Implant Direct, and AB Dental. Always verify platform code and indexing.
Which angle should I choose - 18°, 30°, or 45°?
Match the angle to the degree of implant divergence and desired path of insertion. Use the least correction that achieves parallelism and restorative clearance.
How do I pick the gingival height (GH)?
Base GH on sulcus depth and planned margin. Typical guide: 1–2 mm (thin), 3–4 mm (average), 5–6 mm (thick tissue). Confirm cleansability in the provisional.
What restorations is it intended for?
Screw-retained crowns/bridges and full-arch frameworks. Follow your MU system protocol for framework passivity and torque.

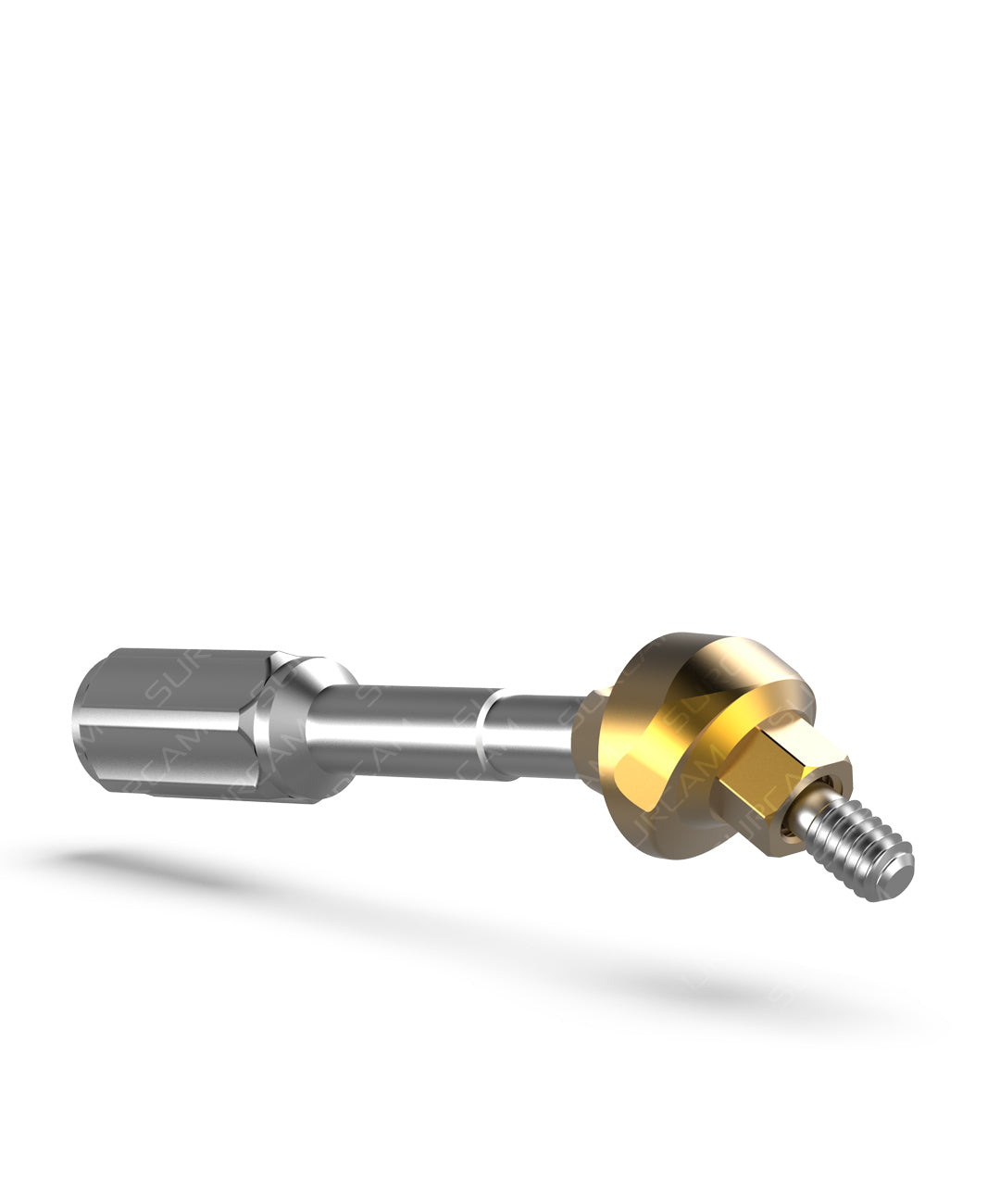

What torque and driver should I use?
Use the MU driver and torque specified in your implant system IFU. Do not exceed manufacturer limits.
