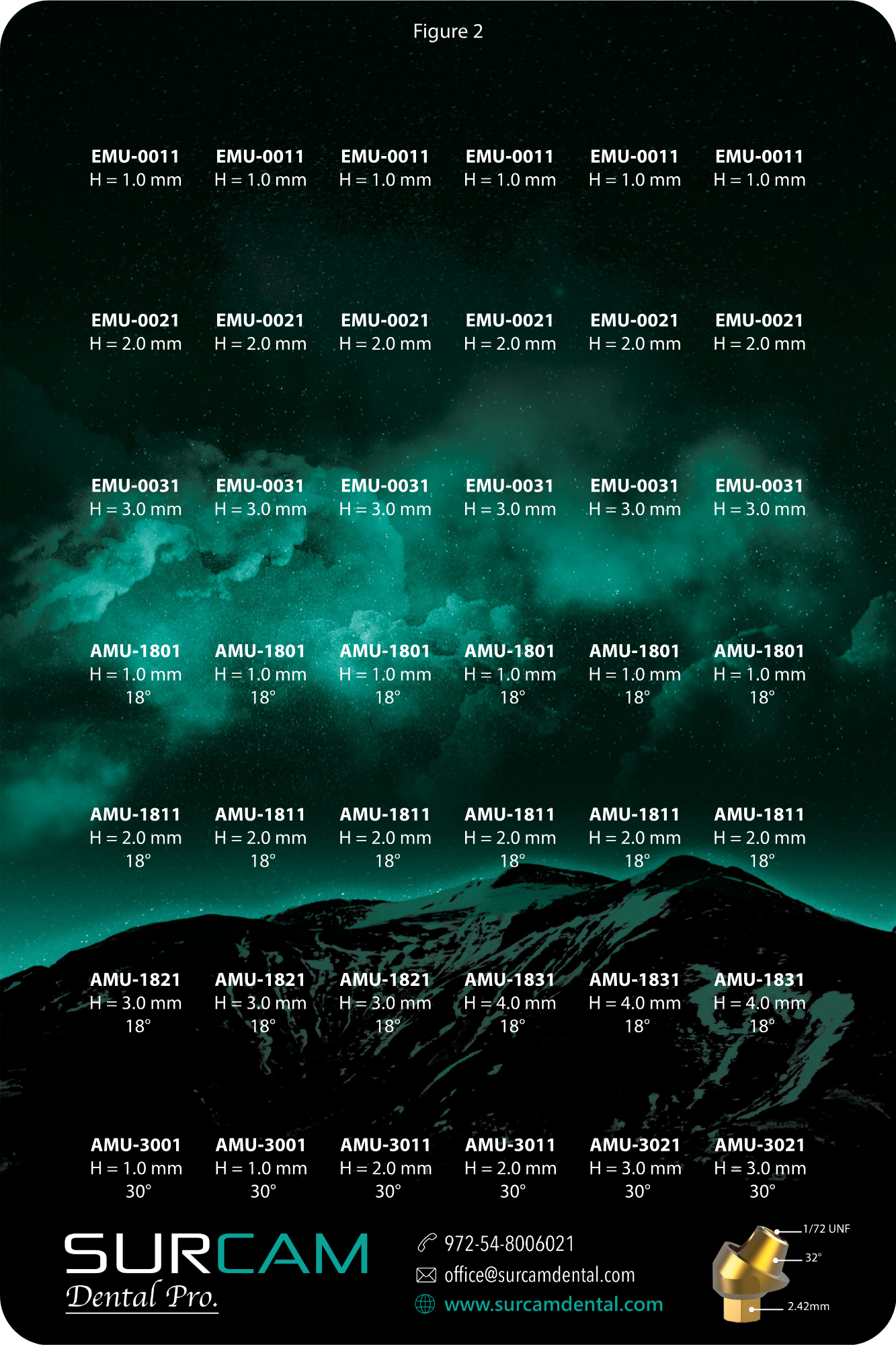

Tray Multi Unit - Figure 2

Internal Hex (cone) Multi-Unit kit, UNF 1-72 thread - 24 angled, 18 straight & 42 digital/restorative accessories

The Tray Multi Unit – Figure 2 is a clinic-ready Internal Hex (cone) Multi-Unit kit built on the UNF 1-72 prosthetic screw standard. It blends 24 angled and 18 straight MU abutments with a full set of digital and restorative accessories, enabling reliable path correction, tissue management, and seamless IOS → CAD/CAM workflows from surgery to final delivery.

Benefits

• Full-arch readiness — Balanced angled + straight MU abutments support common path and passive, screw-retained frameworks.

• Digital built-in — Scan bodies and digital analogs streamline intraoral scanning and CAD/CAM fabrication.

• UNF 1-72 standardization — Consistent prosthetic threading across the kit for simpler inventory control.

• Chairside efficiency — One tray covers provisional and definitive phases, reducing ordering friction.

• Soft-tissue stewardship — MU healing caps help maintain a cleansable emergence profile during healing.

What’s in the Tray

• Multi-Unit Abutments

  • 24× Angular MU abutments (cone-type Internal Hex)

  • 18× Straight MU abutments

• 42× Accessories (modifiable; see Ordering Notes)

  • 10× MU Healing Caps

  • 10× MU Scan Bodies

  • 10× MU Ti-Bases

  • 12× MU Digital Analogs

Note: The tray’s MU abutment mix is fixed. Only the 42 accessories can be customized.

Specifications

• Interface: Multi-Unit Internal Hex (cone)

• Prosthetic Thread: UNF 1-72

• Use Cases: Screw-retained single, segmental, and full-arch frameworks; immediate/early loading per clinical criteria

• Workflow: Compatible with conventional impressions and digital (IOS + CAD/CAM)

• Torque: Apply values specified by your MU system IFU; do not exceed manufacturer limits

Compatibility

Designed for cone-type Internal Hex Multi-Unit ecosystems that utilize UNF 1-72 prosthetic screws. Always verify cone geometry, platform dimensions, and torque against your implant/MU system IFU.

Ordering Notes & Customization

It is not possible to modify the composition of the Multi-Unit tray (numbers of angled/straight MU abutments).
You can request changes to the 42 included accessories (healing caps, scan bodies, Ti-bases, digital analogs). List your preferences in the Order Notes at checkout or contact us for assistance.

FAQs

How is Figure 2 different from other MU trays?

The Figure 2 kit uses Internal Hex (cone) with UNF 1-72 threading and includes 24 angled + 18 straight MU abutments plus 42 accessories for digital/restorative workflows.

Can I change the number of angled or straight MU abutments?

No. The tray’s MU abutment composition is fixed. Only the 42 accessories can be customized.

Which thread and interface does this kit use?

UNF 1-72 prosthetic thread with cone-type Multi-Unit Internal Hex interface. Verify geometry and torque per your system IFU.

Is the kit suitable for digital workflows?

Yes. It includes scan bodies and digital analogs to support intraoral scanning and CAD/CAM fabrication.

Can I use this tray for immediate loading?

Case-dependent. Proceed only with adequate primary stability (torque/ISQ), controlled occlusion, and appropriate splinting for full-arch cases.

Are MU healing caps included?

Yes. 10 MU healing caps are included to help preserve soft-tissue contours during healing.

How do I request accessory changes?

Specify your desired adjustments in the Order Notes at checkout or contact us. We’ll confirm availability before fulfillment.
