Angular narrow multi-unit NP 3.5, 18°/30° with 2.0–3.7 mm cuff heights

General Multi-UnitInternal HexagonSP

Angular Narrow Multi-Unit

Angulation
18° · 30°
Gingival Height
2 to 3.7 mm
Connection
Internal Hexagon (SP)
SKUs
4
$55each
Fits
Internal Hexagon · Standard Platform (SP)

Compatible systems: Alpha-Bio®, BioHorizons®, Implant Direct®, MIS®, Zimmer Biomet®

Select °deg × gingival height

Tap a cell to add · tap again for +1
23.52.73.718°
30°
    $0

    Internal Hex 2.43 pathway

    From placement to restoration, one connection

    Every part below shares the Internal Hex 2.43 connection.

    1. 1Place
      Implants 10 parts · from $70(opens in a new tab)
    2. 2Heal
      Healing caps 5 parts · from $14(opens in a new tab)
    3. 3Record
      Transfers & analogs 25 parts · from $9Open and closed tray(opens in a new tab)
    4. 4Restore
      Cemented abutments 21 parts · from $15Straight and angled(opens in a new tab)
    5. 5Digital
      Ti-Base CAD/CAM 8 parts · from $20Scan bodies and Ti-bases(opens in a new tab)
    6. 6Full arch
      Angular Narrow Multi-Unit Internal Hex Multi-Unit Abutments and Components You are here

    Overview

    Narrow-profile angled Multi-Unit for NP 3.5 - path alignment, low profile & screw-retained workflow

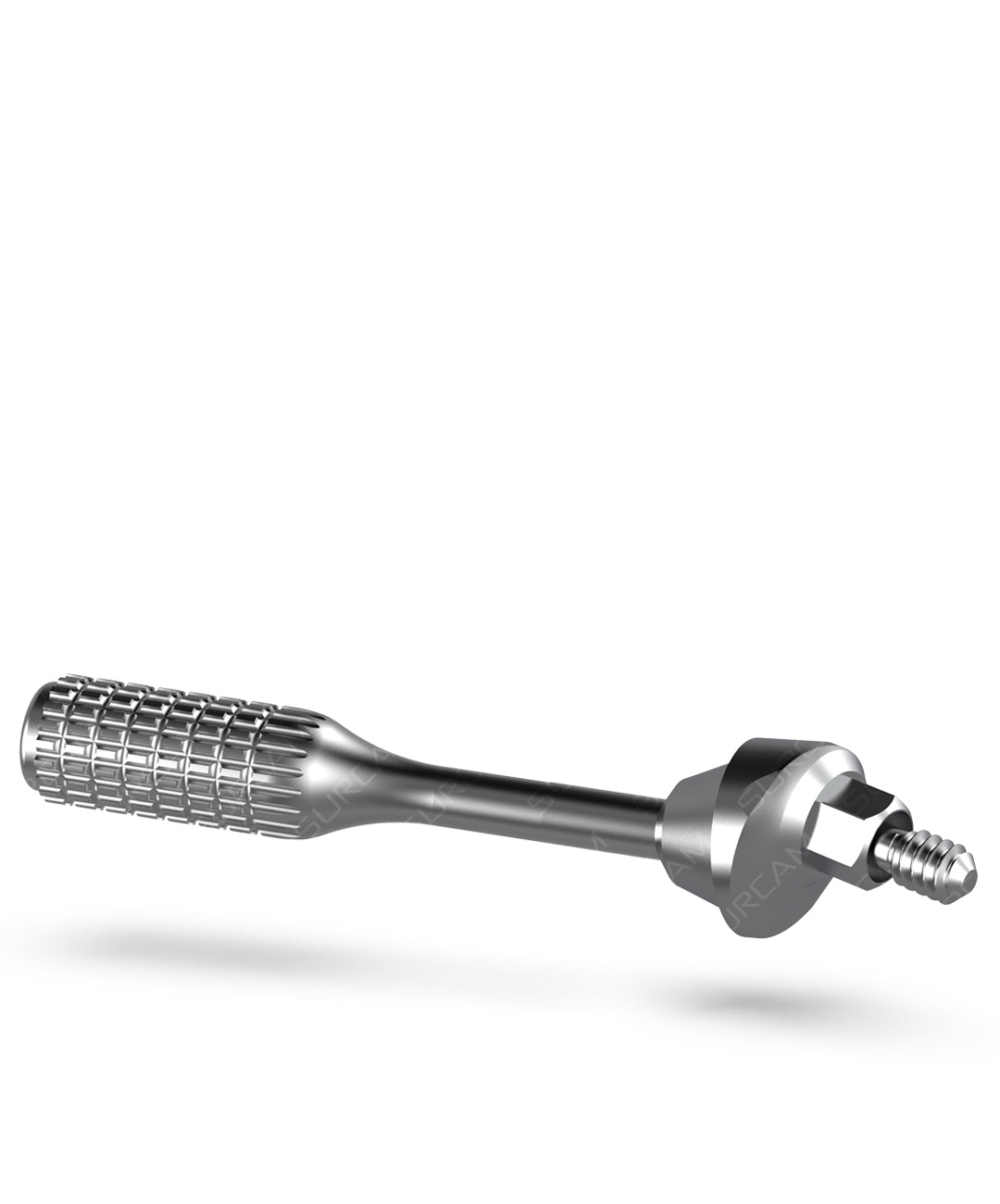

    The Surcam Angular Narrow Multi-Unit is a narrow-profile, conical-connection NP 3.5 abutment engineered for screw-retained prostheses when implants are tilted or space is limited. The slim transmucosal profile improves cleansability and soft-tissue adaptation in tight embrasures, while angled options correct implant divergence to establish a common path of insertion for passive frameworks. Precision-machined from Titanium Grade 5 (Ti-6Al-4V), it supports immediate provisionalization (case-dependent) and predictable full-arch or segmental restorations.
    Includes: 1× Angular Narrow Multi-Unit abutment, 1× Prosthetic Screw.
    Compatibility: NP 3.5 conical connection (e.g., Nobel Active® NP) — verify platform/interface before use.*


    Benefits

    • Divergence correction — Angled options align the restorative axis for passive, screw-retained seating.

    • Narrow transmucosal profile — Better emergence and hygiene in tight spaces or thin ridges.

    • Low-profile head — Improves tongue space and cleansability under full-arch frameworks.

    • Retrievability — Screw-retained access simplifies maintenance and hygiene.

    • Material confidence — Ti-6Al-4V Grade 5 durability with precise indexing.

    • Immediate workflows — Supports same-day provisionals when torque/occlusion allow.


    Product Details

    • Platform / Connection: NP 3.5 conical connection (narrow platform)

    • Angulations & Cuff (Transmucosal) Heights (“Length” = gingival/cuff height):

      • 18°: 2.0 mm, 3.5 mm

      • 30°: 2.7 mm, 3.7 mm

    • Material: Titanium Grade 5 (Ti-6Al-4V)

    • Pack Contents: 1× Angular Narrow Multi-Unit, 1× Prosthetic Screw


    Specifications

    • Indications: Screw-retained single, segmental, and full-arch prostheses on NP 3.5 implants

    • Workflow: Supports immediate provisionalization when primary stability permits

    • Torque: Seat/torque per implant system IFU; do not exceed manufacturer values

    • Prosthetics: Use compatible multi-unit cylinders, temp cylinders, and screws per system library

    • Hygiene: Narrow, low profile aids plaque control around the collar


    Why Choose Surcam Multi-Unit?

    • Predictable path alignment on tilted/divergent implants

    • Narrow profile for challenging esthetic zones and limited space

    • Retrievable screw-retained design for long-term serviceability


    Surcam Multi-Unit FAQs

    Which platforms is this Multi-Unit compatible with?

    NP 3.5 conical-connection platforms (e.g., Nobel Active® NP). Always verify platform dimensions and interface before use.

    Which angulations and cuff heights are available?

    18° with 2.0 mm or 3.5 mm cuff heights; 30° with 2.7 mm or 3.7 mm cuff heights.

    How do I choose the right cuff height (length)?

    Match cuff height to mucosal thickness and desired emergence: thinner tissue → shorter cuff; thicker tissue/concave emergence → longer cuff. Confirm clinically (probing) and radiographically.

    When should I pick 18° vs 30°?

    Use 18° for mild/moderate divergence; 30° when greater correction is needed to obtain a common path of insertion for passive seating.

    Can this be used for immediate loading?

    Often case-dependent. Immediate provisionalization requires adequate insertion torque, cross-arch splinting, and controlled occlusion.

    What torque should I use for seating and the prosthetic screw?

    Follow the implant system’s IFU for NP 3.5 multi-unit torque values. Do not exceed manufacturer specifications.

    * Nobel Active® is a registered trademark of Nobel Biocare. References are for compatibility/comparison only.
