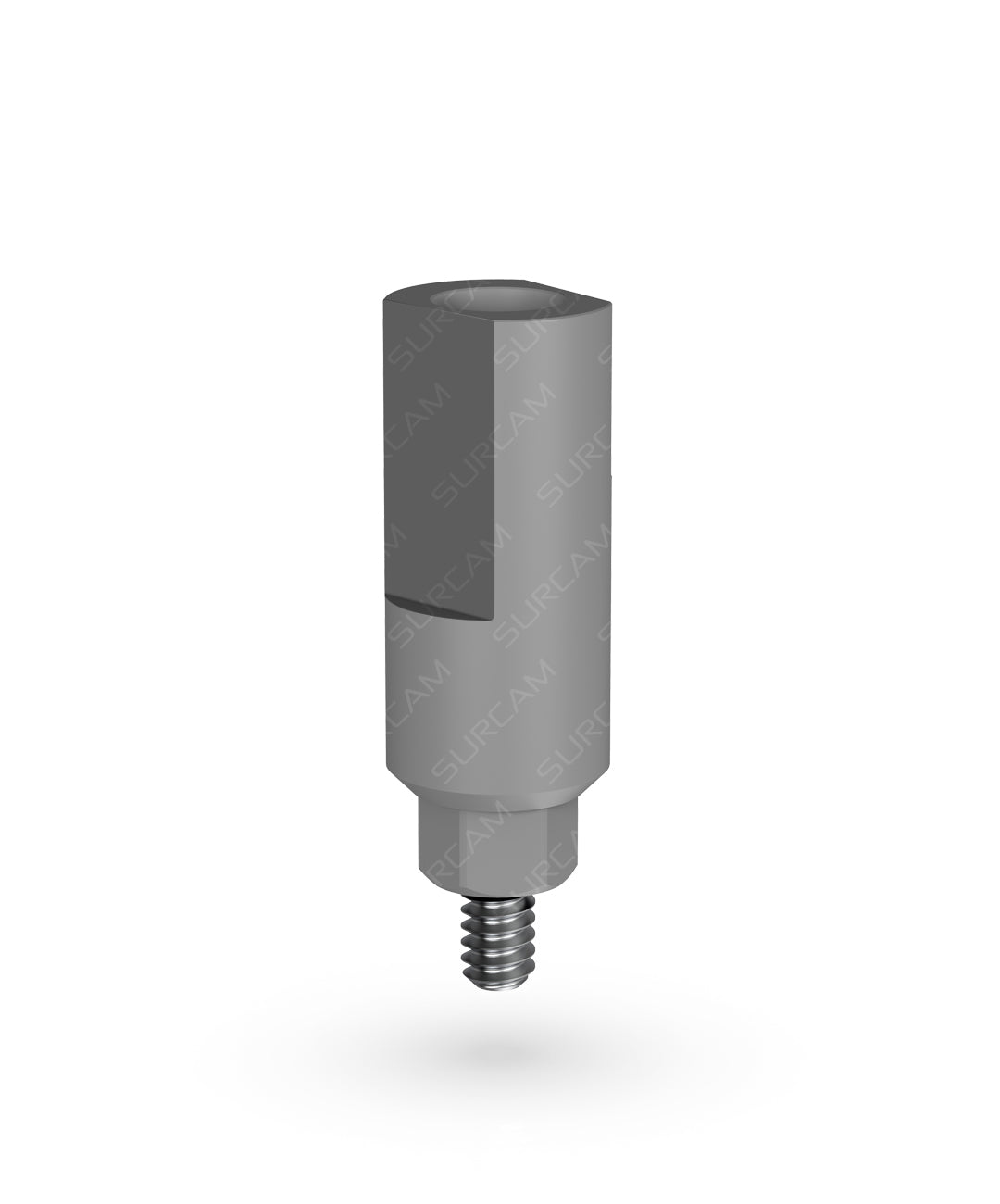

Titanium Scan Body, Internal Hex 2.42

Ti BaseInternal Hexagon

Digital Scan Body / Scan Marking

Titanium Grade 5 (Ti-6Al-4V) scan body for Internal Hex 2.42 mm platforms. Registers implant position and angulation for IOS + CAD/CAM workflows. Supplied with prosthetic screw. Multi-brand compatible (verify interface/fit).

Connection
Internal Hexagon
SKU
SBT-100016
Material
Titanium Grade 5
$20each
Fits
Internal Hexagon

Compatible systems: Alpha-Bio®, BioHorizons®, Implant Direct®, MIS®, Zimmer Biomet®

Quantity

1
    $0

    Internal Hex 2.43 pathway

    From placement to restoration, one connection

    Every part below shares the Internal Hex 2.43 connection.

    1. 1Place
      Implants 10 parts · from $70(opens in a new tab)
    2. 2Heal
      Healing caps 5 parts · from $14(opens in a new tab)
    3. 3Record
      Transfers & analogs 25 parts · from $9Open and closed tray(opens in a new tab)
    4. 4Restore
      Cemented abutments 21 parts · from $15Straight and angled(opens in a new tab)
    5. 5Digital
      Digital Scan Body / Scan Marking Internal Hex Ti-Base CAD/CAM You are here
    6. 6Full arch
      Multi-unit 17 parts · from $15Straight, 17°, 30°, 45°(opens in a new tab)

    Overview

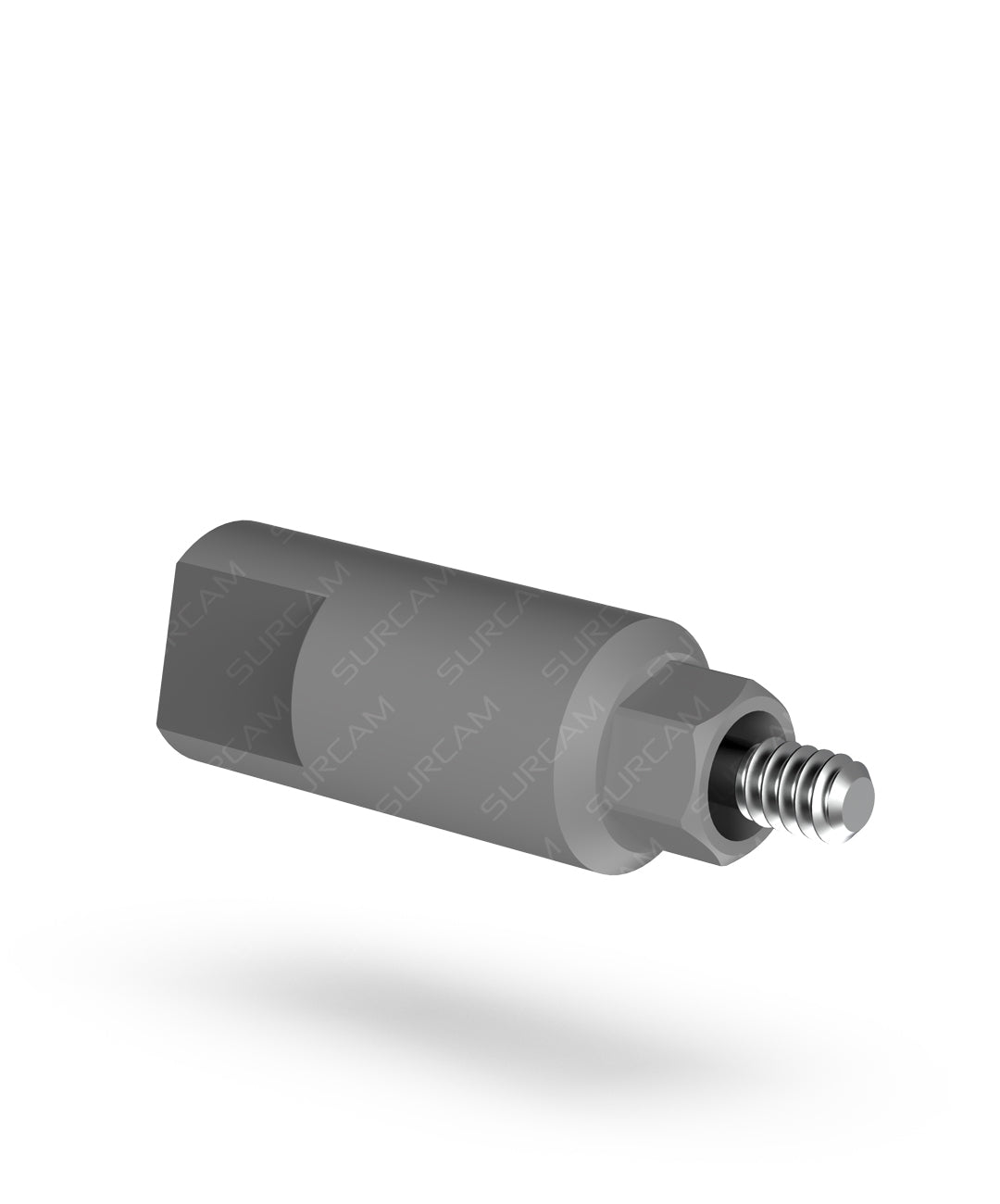

    The Surcam Digital Scan Body (Scan Marking) is a precision Ti-6Al-4V scan abutment designed to capture implant position, depth, and orientation during intraoral scanning. Its accurate interface for Internal Hex 2.42 mm ensures reliable alignment in your CAD software, helping streamline digital design and fabrication. Delivered with a prosthetic screw for stable seating during scanning. Use with validated libraries and follow system IFU for tightening and sterilization.

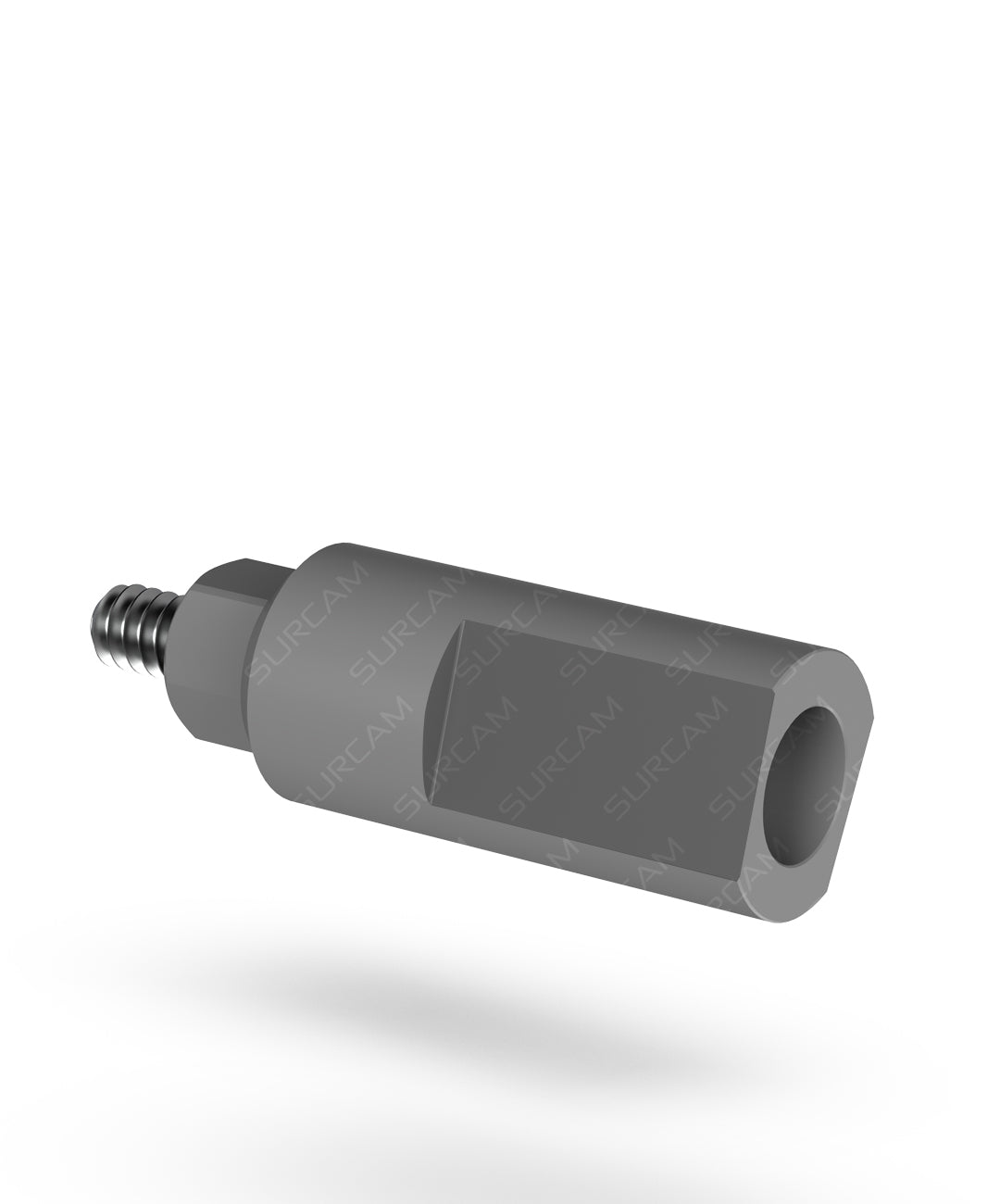

    Includes: 1× Scan Body (Titanium), 1× Prosthetic Screw
    Height: 10 mm (catalog code SBT-100016)
    Compatibility (Internal Hex 2.42 mm): Alpha-Bio®, Zimmer®, MIS®, Adin®, Implant Direct®, AB Dental® (third-party; verify interface/fit)

    Specifications

    PlatformInternal Hex 2.42 mm
    MaterialTitanium Grade 5 (Ti-6Al-4V)
    WorkflowIOS + CAD/CAM; use matching digital library
    Pack contentsScan body + prosthetic screw
    UseCaptures implant position/orientation for digital restoration design
    Compatible systemsAlpha-Bio®, BioHorizons®, Implant Direct®, MIS®, Zimmer Biomet®

    Verify platform and indexing against your system before use. Follow the IFU for torque and loading.

    Technical sheets

    Catalog pages, size charts and drilling protocols

    FAQ

    Questions about Digital Scan Body / Scan Marking

    All FAQs →
    Is this compatible with Internal Hex 2.42 systems?

    Yes. It is designed for Internal Hex 2.42 mm platforms commonly used by Alpha-Bio, Zimmer, MIS, Adin, Implant Direct, and AB Dental (third-party compatibility; verify interface/fit).

    What’s included in the package?

    One titanium scan body and one prosthetic screw for secure seating during scanning.

    Is it suitable for intraoral scanning?

    Yes. It is intended for IOS and CAD/CAM workflows to accurately register implant position and orientation.

    Which digital libraries does it use?

    Use the corresponding Surcam library for your CAD system (e.g., 3Shape, Exocad, Dental Wings where available). Contact support if you need the library files.

    How tight should I fasten it and can I sterilize it?

    Follow the implant system Instructions for Use (IFU) for driver type and torque—typically low torque for scanning. If supplied non-sterile, clean and steam-sterilize per IFU before use.
