Tray Multi Unit - Figure 1

Internal Hex cone MU kit (UNF 1-72) for full-arch path alignment & digital workflows

The Tray Multi Unit – Figure 1 is a clinic-ready Internal Hex (cone) Multi-Unit kit built on the UNF 1-72 prosthetic thread. It combines a high-utility mix of angled and straight MU abutments with a complete set of digital and restorative accessories, enabling predictable path correction, soft-tissue management, and seamless IOS → CAD/CAM from surgery to final delivery.

Benefits

• Full-arch readiness — Large inventory of angled MU abutments helps achieve a common prosthetic path.

• Digital built-in — Scan bodies and digital analogs accelerate CAD/CAM fabrication.

• Standardized threading — UNF 1-72 across components for simpler inventory and servicing.

• Chairside efficiency — One tray supports surgery, provisionalization, and final restoration.

• Tissue stewardship — MU healing caps help maintain a cleansable emergence during healing.

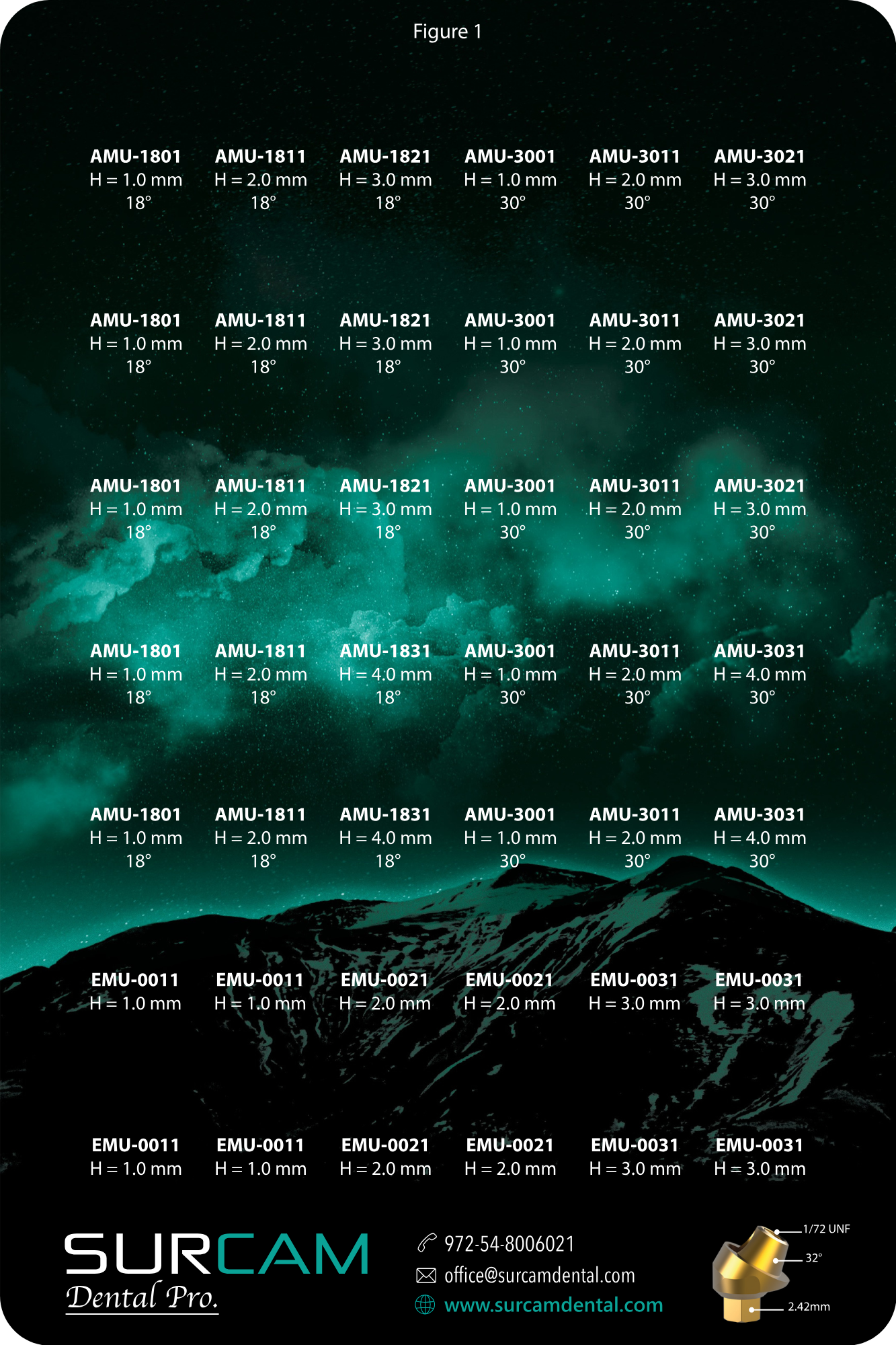

What’s in the Tray

• Multi-Unit Abutments

  • 30× Angular MU abutments (cone-type Internal Hex)

  • 12× Straight MU abutments

• 42× Accessories (modifiable; see Ordering Notes)

  • 10× MU Healing Caps

  • 10× MU Scan Bodies

  • 10× MU Ti-Bases

  • 12× MU Digital Analogs

The tray’s MU abutment composition is fixed. Only the 42 accessories can be customized.

Specifications

• Interface: Multi-Unit Internal Hex (cone)

• Prosthetic Thread: UNF 1-72

• Use Cases: Screw-retained single, segmental, and full-arch frameworks; immediate/early loading per clinical criteria

• Workflow: Compatible with conventional impressions and digital (IOS + CAD/CAM)

• Torque: Apply values specified by your MU system IFU; do not exceed manufacturer limits

Compatibility

Designed for cone-type Internal Hex Multi-Unit ecosystems using UNF 1-72 prosthetic screws. Always verify cone geometry, platform dimensions, and torque against your implant/MU system IFU.

Ordering Notes & Customization

It is not possible to modify the composition of the Multi-Unit tray (numbers of angled/straight MU abutments).
You can request changes to the 42 accessories (healing caps, scan bodies, Ti-bases, digital analogs). Add details in the Order Notes at checkout or contact us.

FAQs

How is Figure 1 configured?

A high-angle mix: 30 angled and 12 straight MU abutments plus 42 accessories for restorative and digital workflows.

Can I change the number of angled or straight MU abutments?

No. The tray’s MU abutment mix is fixed. Only the 42 accessories can be customized.

Which thread and interface does this kit use?

UNF 1-72 prosthetic thread with cone-type Multi-Unit Internal Hex interface. Verify geometry and torque per your system IFU.

Is this kit suitable for digital workflows?

Yes. Scan bodies and digital analogs are included for IOS and CAD/CAM fabrication.

Can I use this tray for immediate loading?

Case-dependent. Proceed only with adequate primary stability (torque/ISQ), controlled occlusion, and appropriate splinting for full-arch cases.

Are MU healing caps included?

Yes. 10 MU healing caps are supplied to help maintain soft-tissue contours during healing.

How do I request accessory changes?

Specify your preferred accessory quantities in the Order Notes at checkout or contact us. We’ll confirm availability before fulfillment.
