Short Open-Tray Transfer Standard Platform

Short impression transfer for precise open-tray pick-up on Internal Hex 2.42 (long screw included)

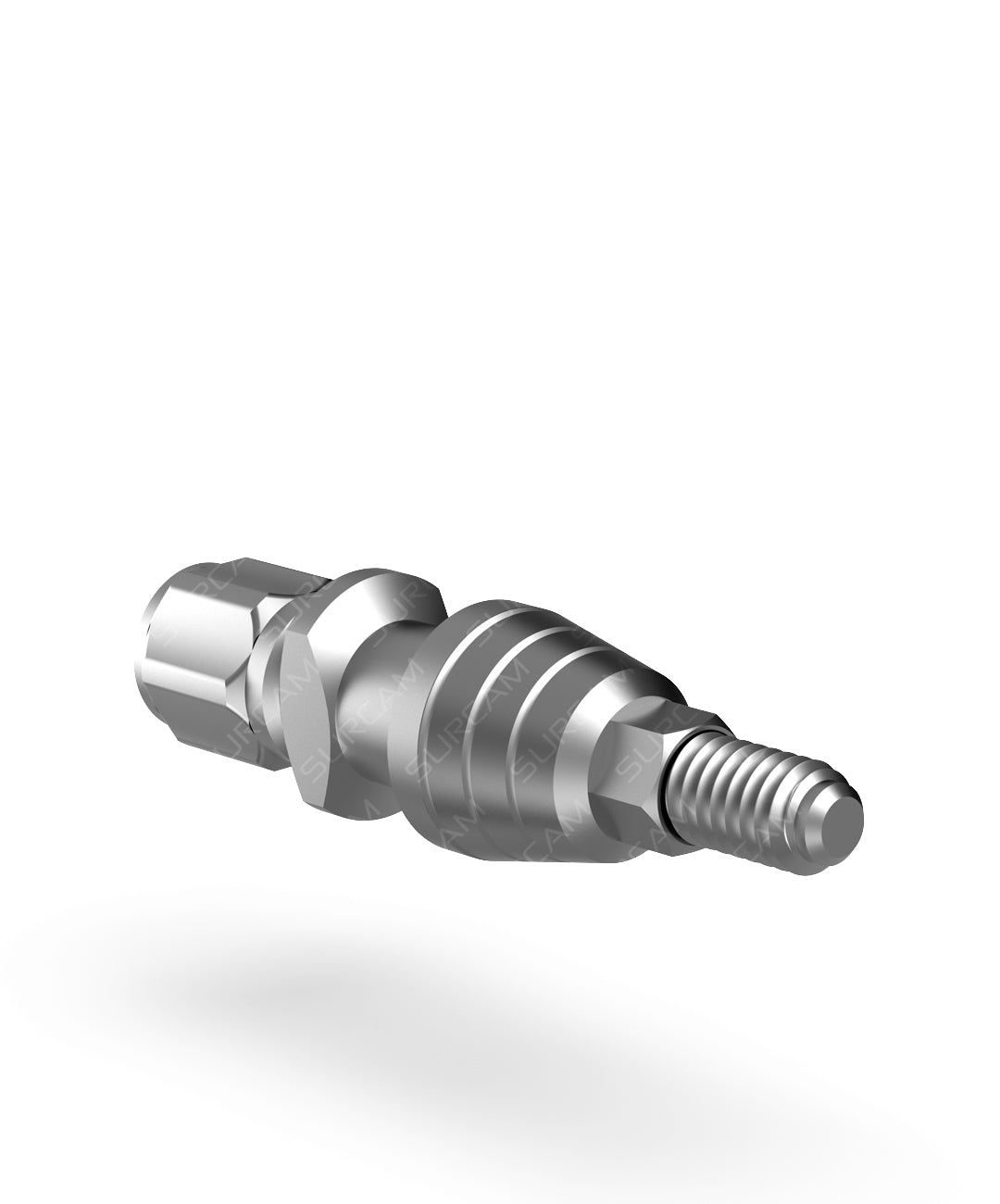

The Surcam Short Open-Tray Transfer (Standard Platform) is a stainless-steel impression transfer coping designed for open-tray (pick-up) impressions on Internal Hex 2.42 mm implant systems. Its short vertical height fits limited interocclusal space while the long transfer screw projects through the custom tray for easy access during impression pickup. Engineered for accurate implant position capture in single or multiple-unit cases, it supports reliable PVS/polyether workflows and consistent fit at delivery.

Includes: 1× Short Open-Tray Transfer, 1× Prosthetic Long Screw for transfer
Compatibility: Internal Hex 2.42; brands such as Alpha Bio®, Zimmer®, MIS®, Adin®, Implant Direct®, AB Dental® (verify interface)

Benefits

• Accurate pick-up impressions for definitive implant position and angulation

• Short height ideal for reduced interocclusal space and posterior access

• Long access screw simplifies tray access and pickup in deep sites

• Rigid stainless steel for dimensional stability during impression removal

• Multi-unit ready — supports splinting techniques for full-arch accuracy

Product Details

• Connection / Platform: Internal Hexagon 2.42 mm

• Material: Stainless steel transfer coping and long transfer screw

• Pack Contents: 1× Short Open-Tray Transfer, 1× Prosthetic Long Screw

• Brand Compatibility: Alpha Bio®, Zimmer®, MIS®, Adin®, Implant Direct®, AB Dental® (confirm fit)

• Technique: Open-tray (pick-up) impression with PVS/polyether

Specifications

• Indications: Single, segmental, and full-arch impressions on IH 2.42 implants

• Seating: Verify full seating and rotational index; confirm with radiograph when indicated

• Tightening: Hand-tighten per IFU; avoid over-torque on transfer screws

• Multiple implants: Consider splinting transfers (e.g., floss & pattern resin) to minimize movement

• Disinfection: Follow clinic protocol and material IFUs

Why Choose Surcam Transfers?

• Consistent fit and indexing on IH 2.42 platforms

• Space-saving short profile without sacrificing accuracy

• Durable stainless-steel construction for dependable pickup

Surcam Transfers FAQs

Which implant platforms are compatible?

Internal Hex 2.42 mm systems including Alpha Bio®, Zimmer®, MIS®, Adin®, Implant Direct®, AB Dental®. Always verify platform dimensions and interface before use.

When should I choose a short open-tray transfer?

Select short height when interocclusal space is limited, posterior access is challenging, or you need screw clearance through a thin tray.

How do I use this in an open-tray impression?

Seat the transfer and hand-tighten, verify seating (radiograph as needed), create/confirm the tray access, inject PVS/polyether, allow set, then unscrew through the tray and remove the tray with the transfer embedded.

Is this suitable for multiple implants or full-arch cases?

Yes. For higher accuracy, splint transfers (e.g., with pattern resin) and section/re-lut per protocol before impression.

Which impression materials are recommended?

High-accuracy PVS or polyether per manufacturer IFU; ensure a rigid custom tray and adequate access for the long screw.

Is a long transfer screw included?

Yes. The package includes 1 prosthetic long screw specifically for the open-tray pickup.

*Trademark note: Alpha Bio®, Zimmer®, MIS®, Adin®, Implant Direct®, and AB Dental® are registered trademarks of their respective owners. References are for compatibility/comparison only.
