Prime Multi-UnitInternal HexagonWP

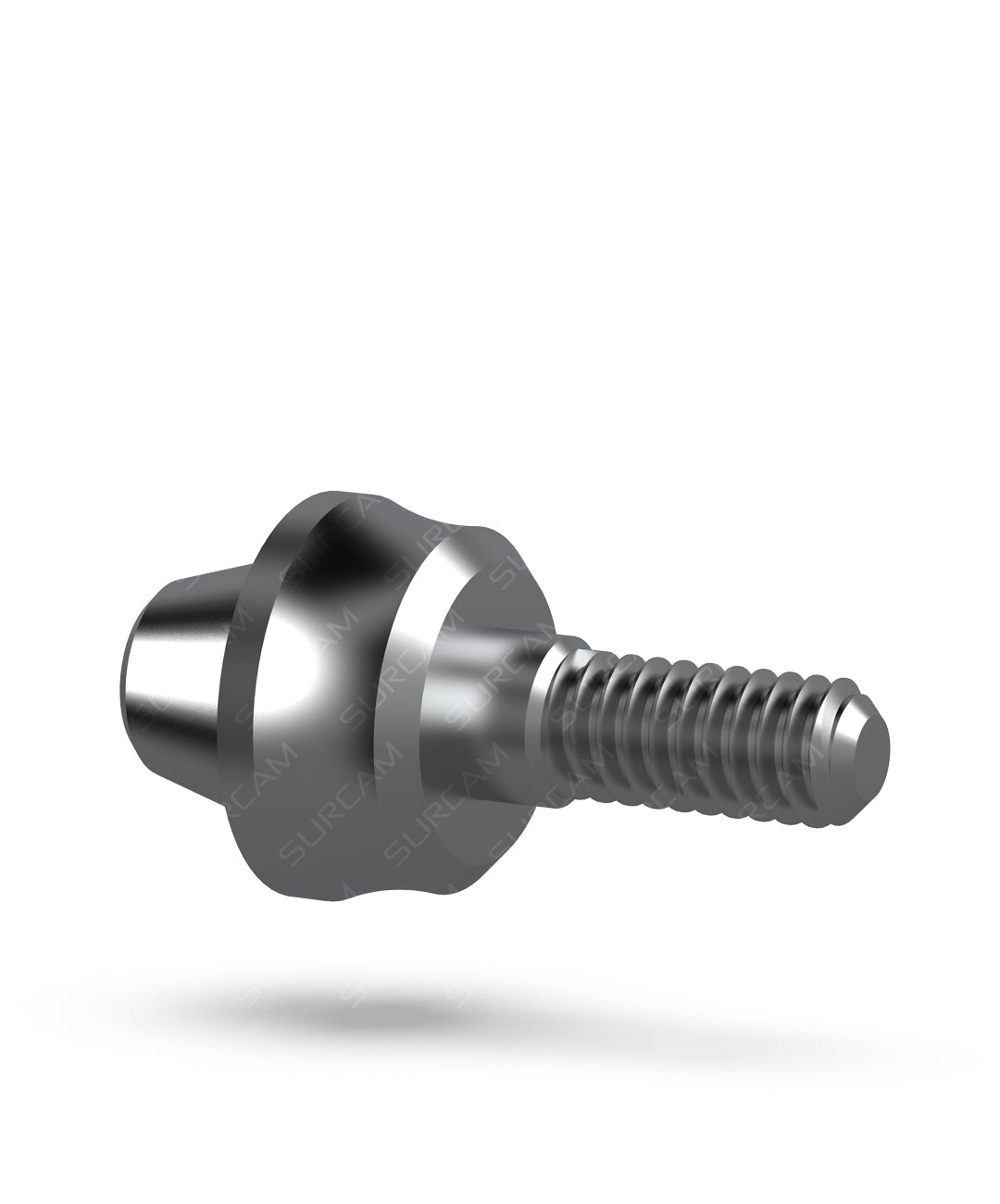

Straight Multi-Unit Abutment – Wide Platform Ø4.5
- Gingival Height
- 1 to 6 mm
- Connection
- Internal Hexagon (WP)
- SKUs
- 6
Compatible systems: Alpha-Bio®, BioHorizons®, Implant Direct®, MIS®, Zimmer Biomet®
Gingival Height
Overview
The Straight Multi-Unit Abutment – Wide Platform Ø4.5 is designed to provide a stable prosthetic platform for screw-retained implant restorations. Compatible with internal hex implant systems, it enables predictable restorative alignment and simplified prosthetic workflows.
The straight configuration allows direct restorative access when implant angulation is favorable, making it suitable for single-unit restorations, multi-unit bridges, and full-arch implant prosthetics.
Manufactured from Titanium Grade 5 (Ti-6Al-4V), the abutment delivers excellent mechanical strength, corrosion resistance, and long-term durability in clinical conditions. The Wide Platform Ø4.5 design ensures secure implant engagement and stable prosthetic support.
Available in gingival heights of 1, 2, 3, 4, 5, and 6 mm, the abutment allows clinicians to select the appropriate height for proper soft-tissue management and optimal emergence profile.
-
Straight multi-unit abutment for screw-retained restorations
-
Platform: Wide Platform Ø4.5
-
Connection: Internal Hex
-
Gingival heights available: 1 / 2 / 3 / 4 / 5 / 6 mm
-
Provides stable prosthetic platform for implant restorations
-
Suitable for single-unit and full-arch prosthetic solutions
-
Manufactured from Titanium Grade 5 (Ti-6Al-4V)
-
Precision-machined for secure implant connection
Technical sheets
Catalog pages, size charts and drilling protocols
Is this abutment compatible with my system?
It is designed for Internal Hex 2.42 mm platforms used by Alpha-Bio, Zimmer, MIS, Adin, Implant Direct, and AB Dental. Always verify platform code and indexing.
Which angle should I choose—18°, 30°, or 45°?
Select the angle based on implant divergence and the desired path of insertion. Use the least correction that achieves parallelism and restorative clearance.
How do I pick the gingival height (GH)?
Match GH to measured sulcus depth and planned margin. Typical guide: 1–2 mm (thin tissue), 3–4 mm (average), 5–6 mm (thick). Validate cleansability in the provisional.
What restorations is it intended for?
Screw-retained single units, bridges, and full-arch frameworks. Follow your Multi-Unit system protocol for framework passivity and torque.
What torque and driver should I use?
Use the MU driver and torque value specified in your implant system Instructions for Use (IFU). Do not exceed manufacturer limits.
