Prime Multi-UnitInternal HexagonSP

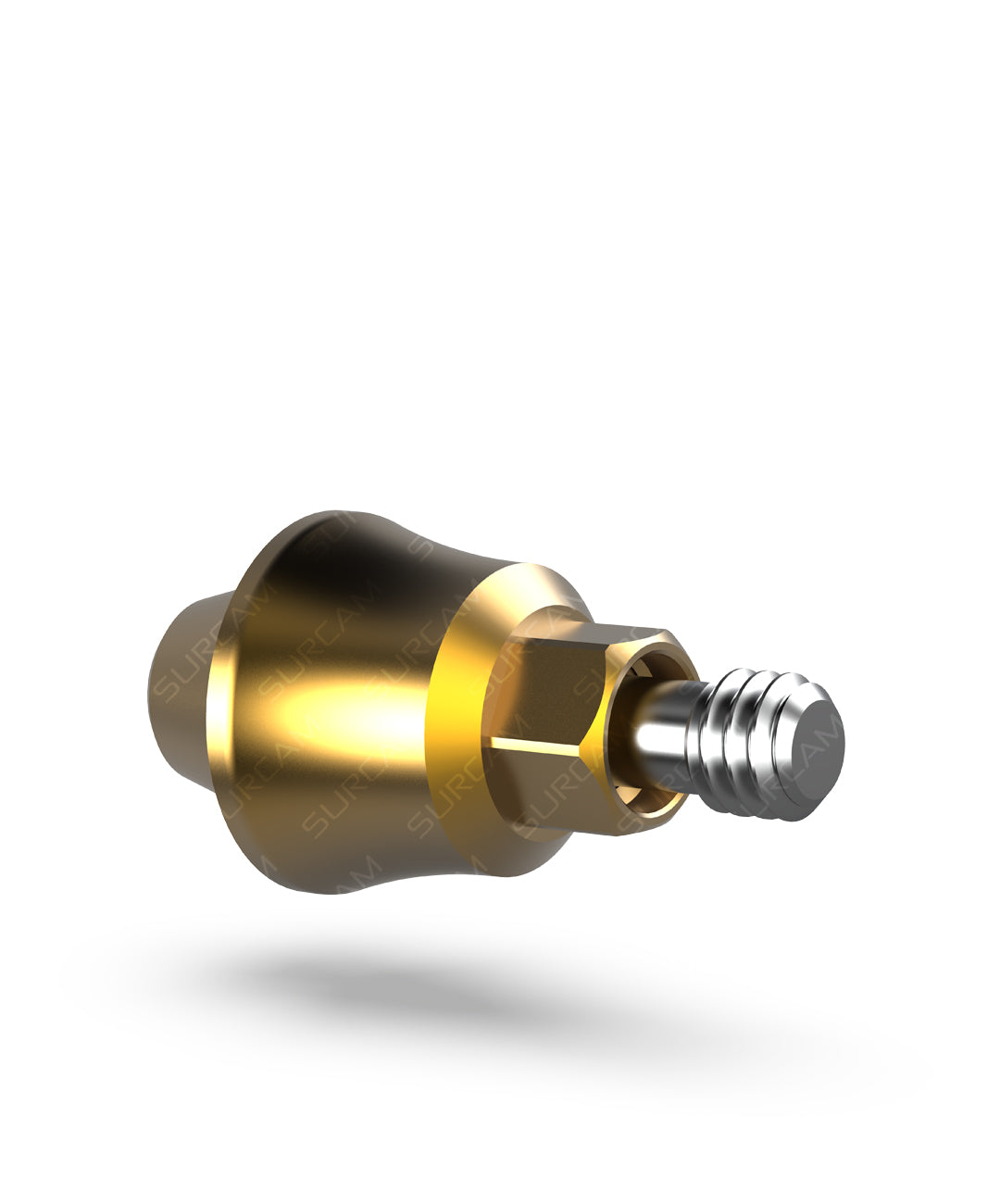

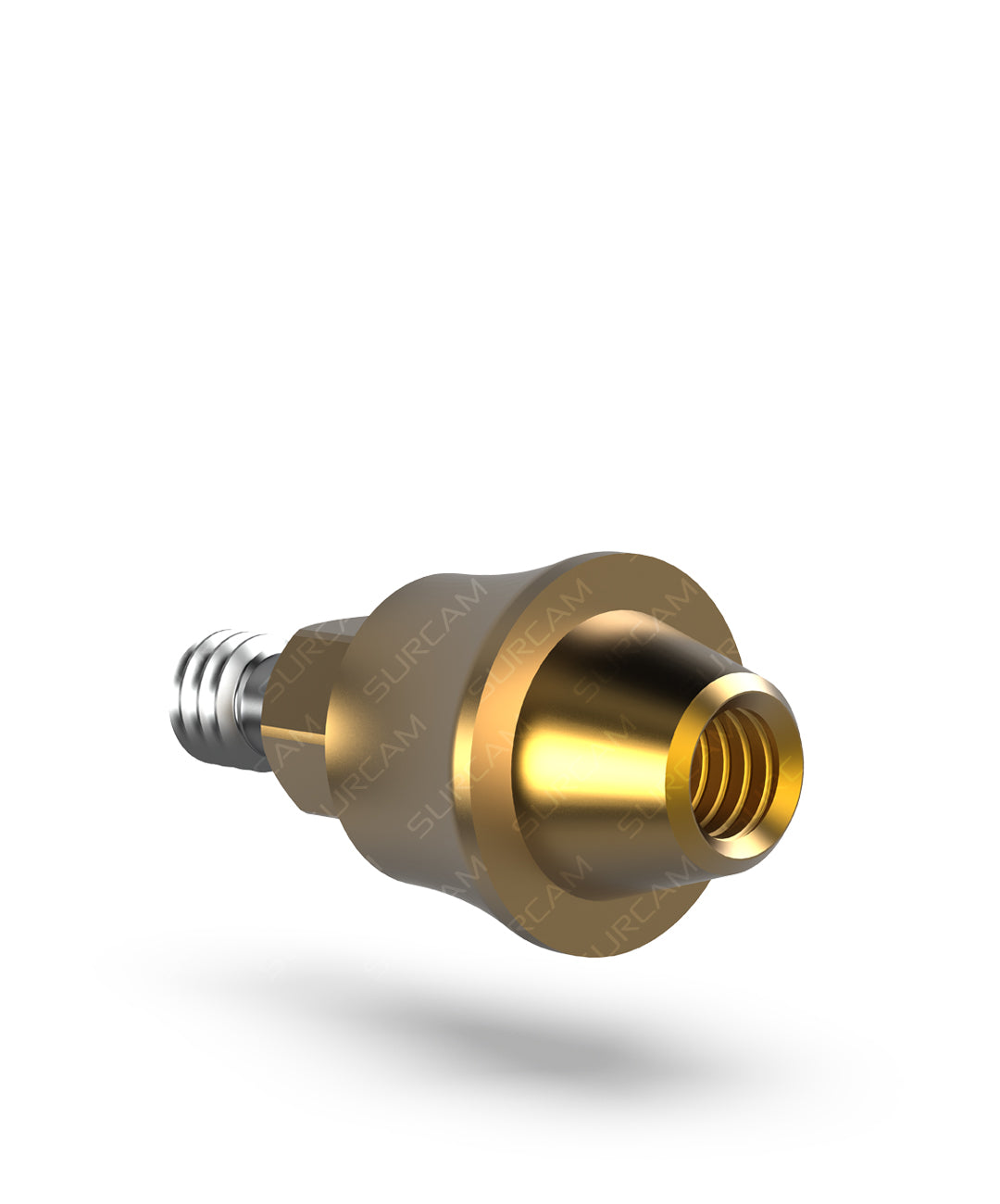

Straight Multi-Unit Abutment – Prime Coating (Hex Interface)
- Gingival Height
- 1 to 6 mm
- Connection
- Internal Hexagon (SP)
- SKUs
- 6
Compatible systems: Alpha-Bio®, BioHorizons®, Implant Direct®, MIS®, Zimmer Biomet®
Gingival Height
Overview
he Straight Multi-Unit Abutment – Prime Coating is engineered to support stable screw-retained implant restorations while improving resistance to functional fatigue forces. Manufactured from Titanium Grade 5 (Ti-6Al-4V) and enhanced with Surcam Prime PVD coating, the abutment provides superior durability, wear resistance, and long-term prosthetic reliability.

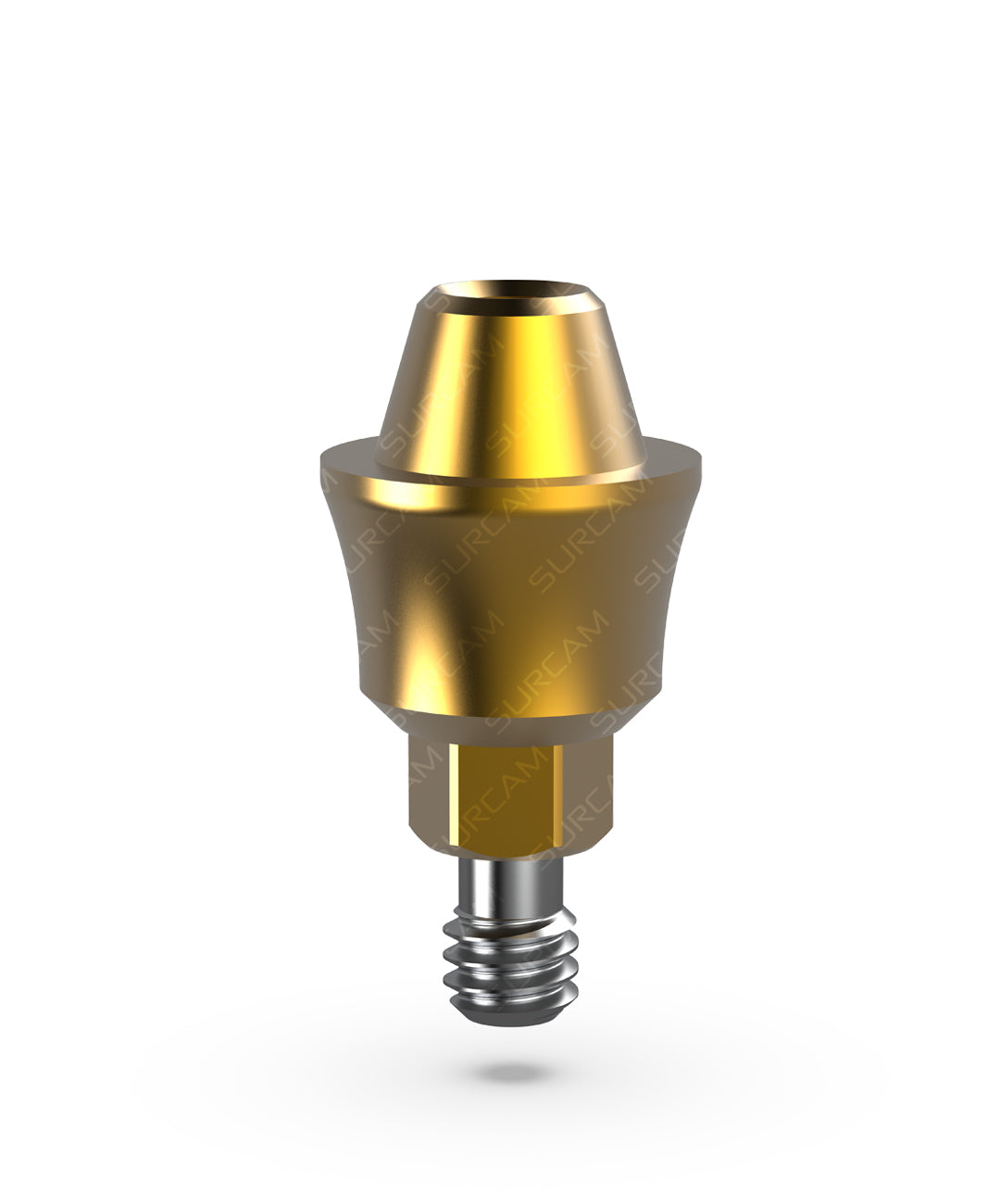

Unlike standard multi-unit abutments, this design incorporates a hex interface at the lower portion of the abutment, providing additional mechanical engagement with the implant connection. This hex configuration enhances grip, rotational stability, and resistance to fatigue loading, helping maintain prosthetic integrity under functional forces.

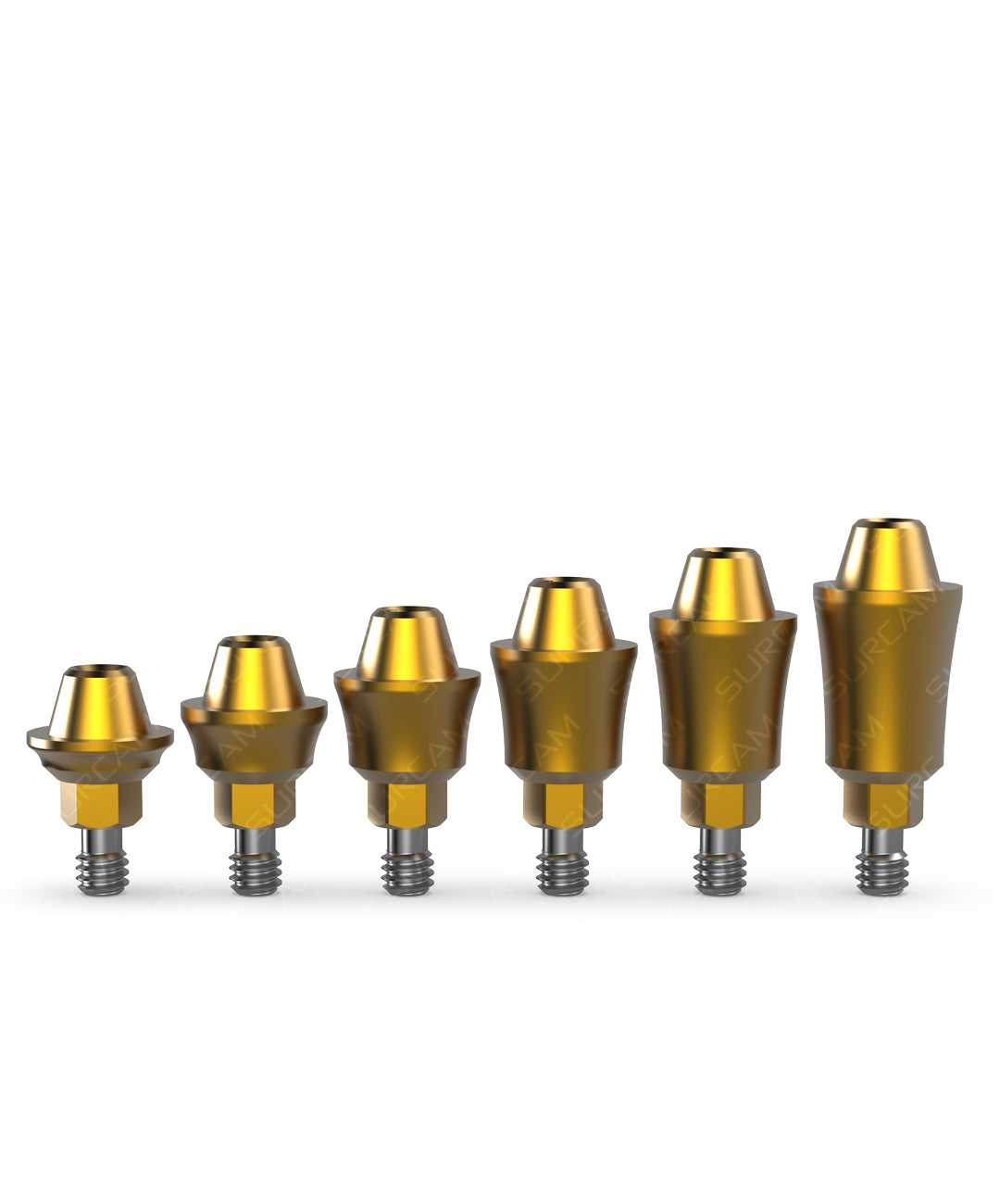

The straight profile allows optimal prosthetic alignment when implant angulation is favorable. Available in gingival heights of 1, 2, 3, 4, 5, and 6 mm, it enables precise management of soft-tissue depth and emergence profile during restorative procedures.
Designed for compatibility with internal hex implant systems, this abutment integrates seamlessly into multi-unit restorative workflows and full-arch prosthetic protocols.
-
Straight multi-unit abutment with hex interface
-
Prime PVD coating for enhanced durability and wear resistance
-
Manufactured from Titanium Grade 5 (Ti-6Al-4V)
-
Lower hex design for improved grip and rotational stability
-
Increased resistance to fatigue forces compared to standard multi-unit abutments
-
Gingival heights available: 1 / 2 / 3 / 4 / 5 / 6 mm
-
Connection: Internal Hex
-
Supports predictable screw-retained restorations
-
Designed for stable implant prosthetic workflows
Technical sheets
Catalog pages, size charts and drilling protocols
Is this abutment compatible with my system?
It is designed for Internal Hex 2.42 mm platforms used by Alpha-Bio, Zimmer, MIS, Adin, Implant Direct, and AB Dental. Always verify platform code and indexing.
How do I choose the gingival height (GH)?
Match GH to measured sulcus depth and the desired margin position. Typical selection: 1–2 mm for shallow tissue, 3–4 mm for average tissue, 5–6 mm for thick tissue.
What restorations is it intended for?
Screw-retained single units, short-span bridges, and full-arch frameworks. Follow your Multi-Unit system’s restorative protocol.
What torque and driver should I use?
Use the MU driver and torque value specified in your implant system Instructions for Use (IFU). Do not exceed manufacturer limits.
Does the Prime Coating change handling or sterilization?
No special handling beyond your standard IFU. The coating is designed to be soft-tissue friendly and cleansable. Follow routine cleaning and sterilization guidance.
